Accommodation
Registered protocol: max 10 pax (people)
Accommodation in:
4 double cabins (4×2 pax) 8 pax total
2 skipper cabins (2×1 pax) 2 pax total
Specs I
Length overall: 13.96m
Length at waterline: 13.14m
Beam: 7.87m
Draft: 1.30m
Displacement: 15.1t
Engines: 2x54hp diesel Yanmar
Specs II
Fuel capacity: 1000l
Water capacity: 800l
Mainsail area: 81.00sq.m
Genoa area: 49sq.m
Total sail area: 130sq.m
EU Homologation: Cat. A 10 per

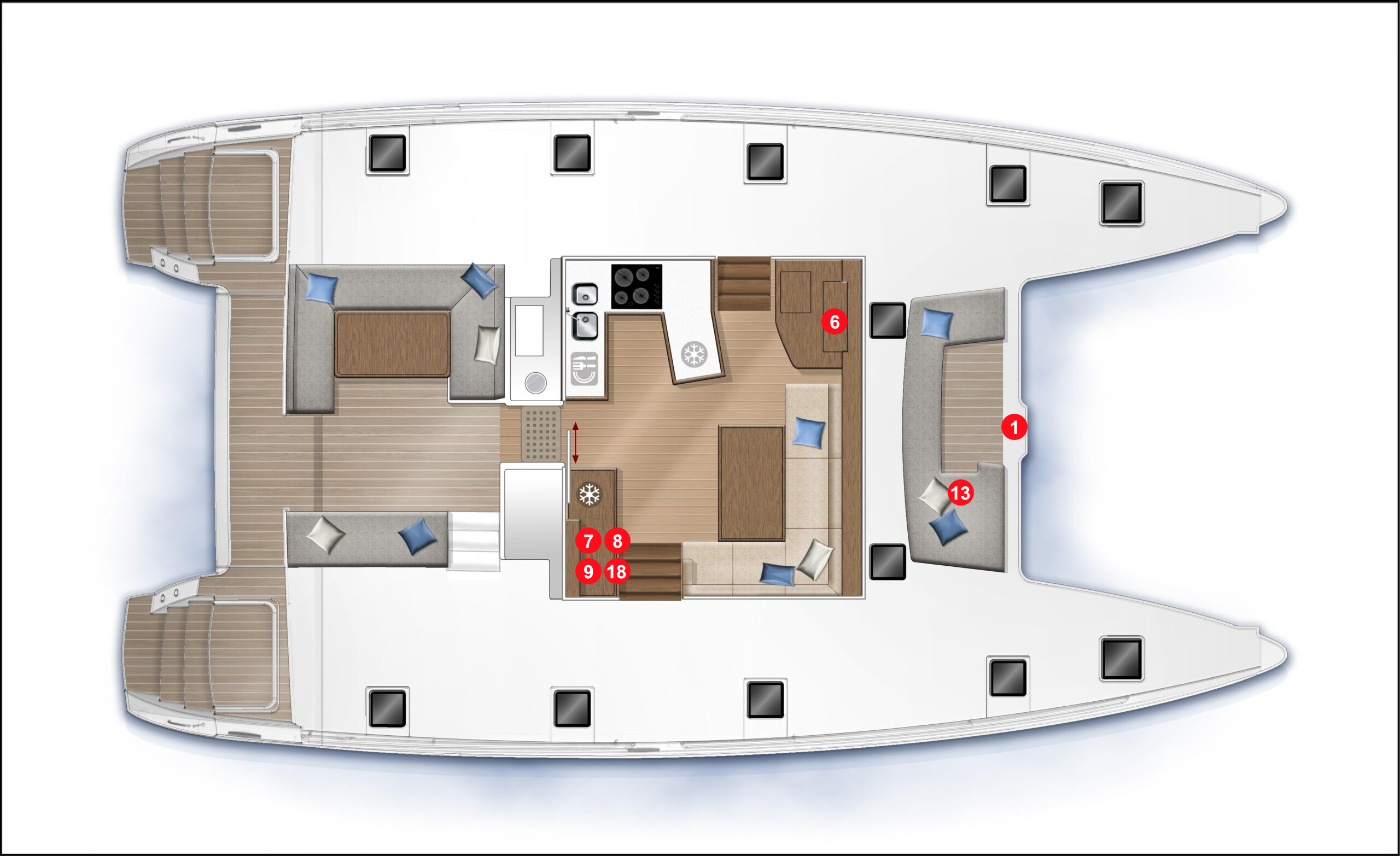

Deck Layout

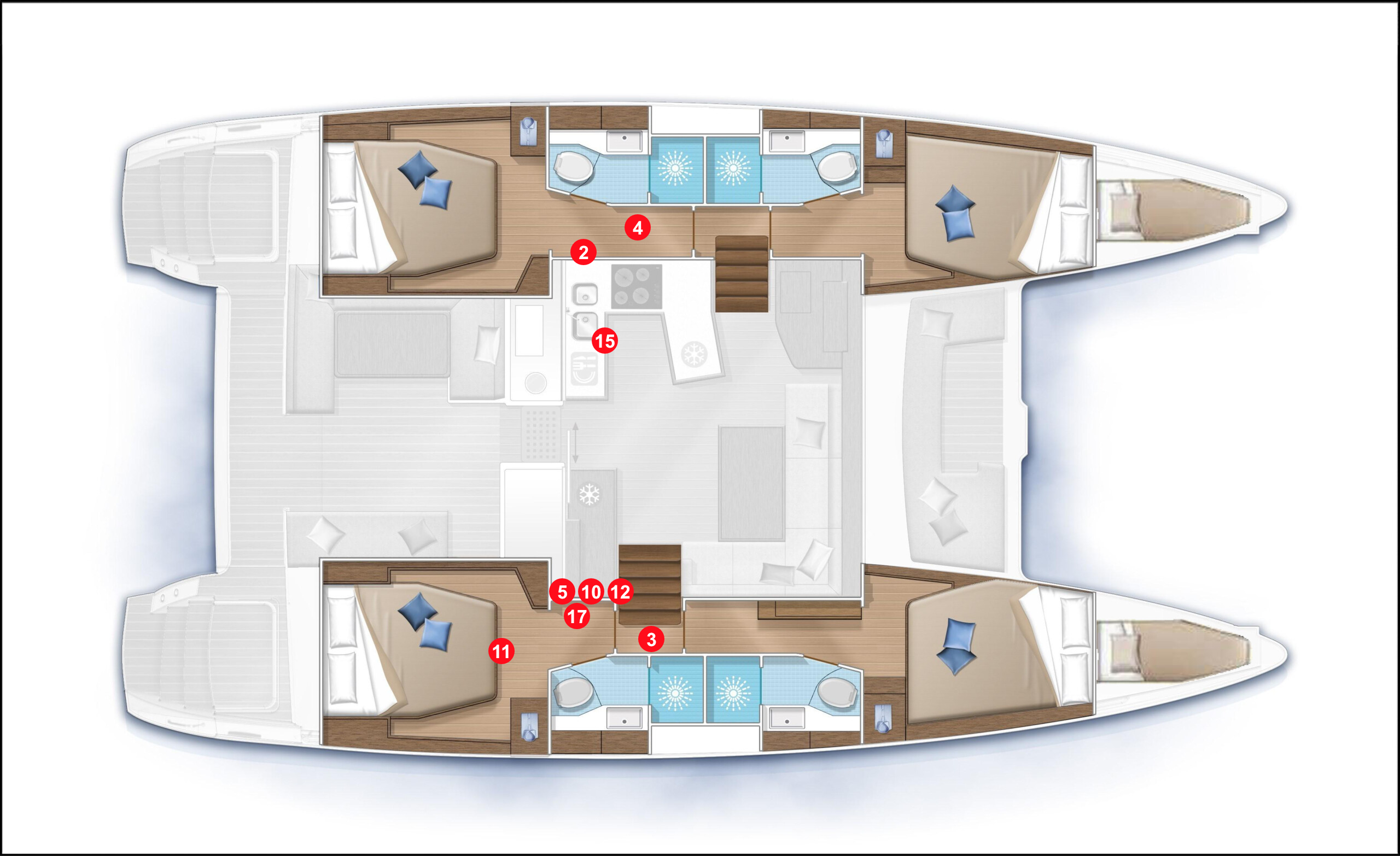

Cabins Layout

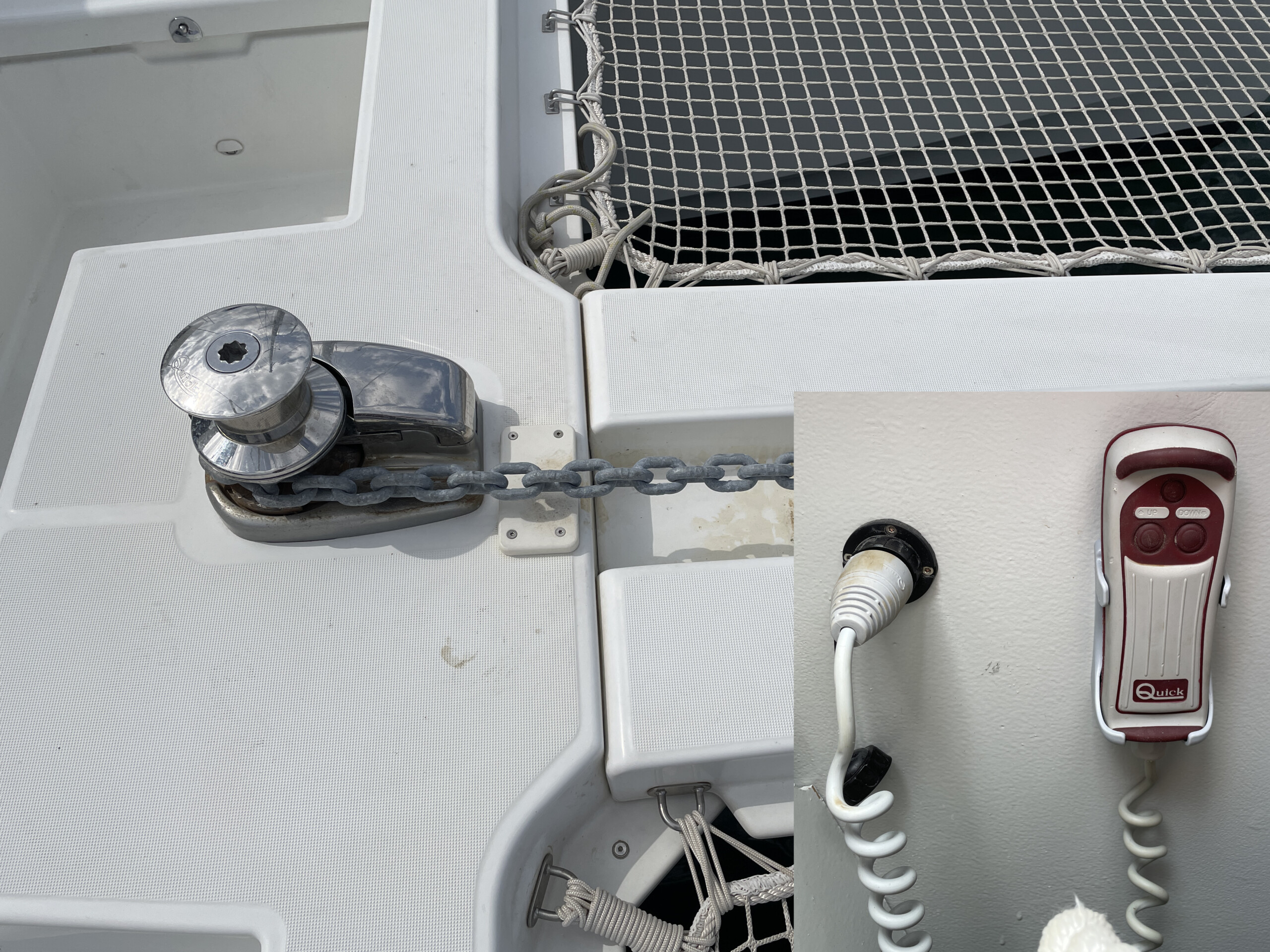

1.Windlass
Location: Deck Layout
Description: Located at the fore, controller at generator locker right behind the winch. Controlled by the windlass controller next to it. Used to drop and pull up the anchor.
WARNING: This system should only be tampered with by a professional or by the skipper under the instructions of the base.
2.Water tank switch
Location: Deck Layout
Description: Located at the central passageway cupboard at the Aft Port Cabin area, next to the escape hatch. Switching the handle switched the feed between the two water tanks.

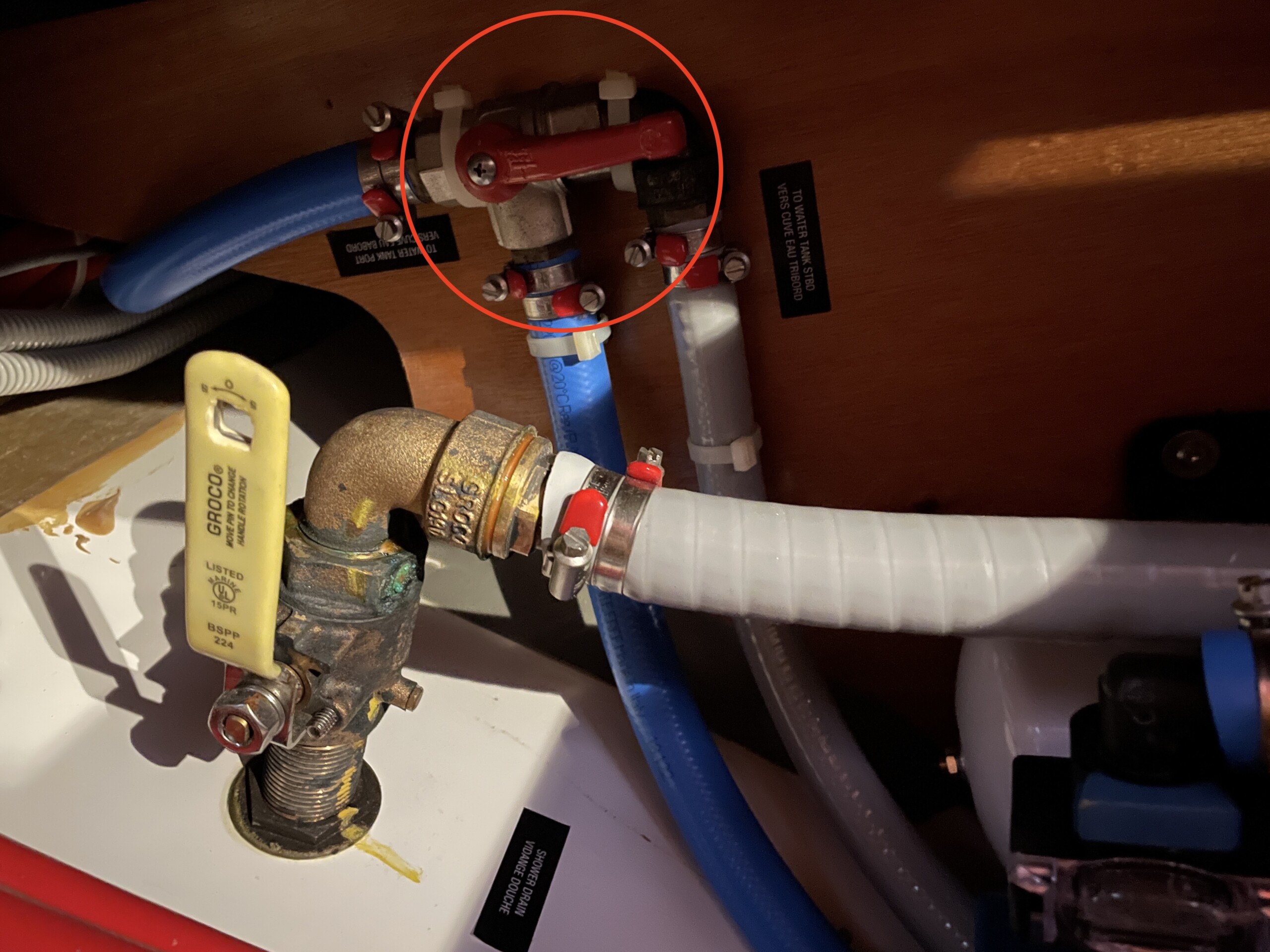

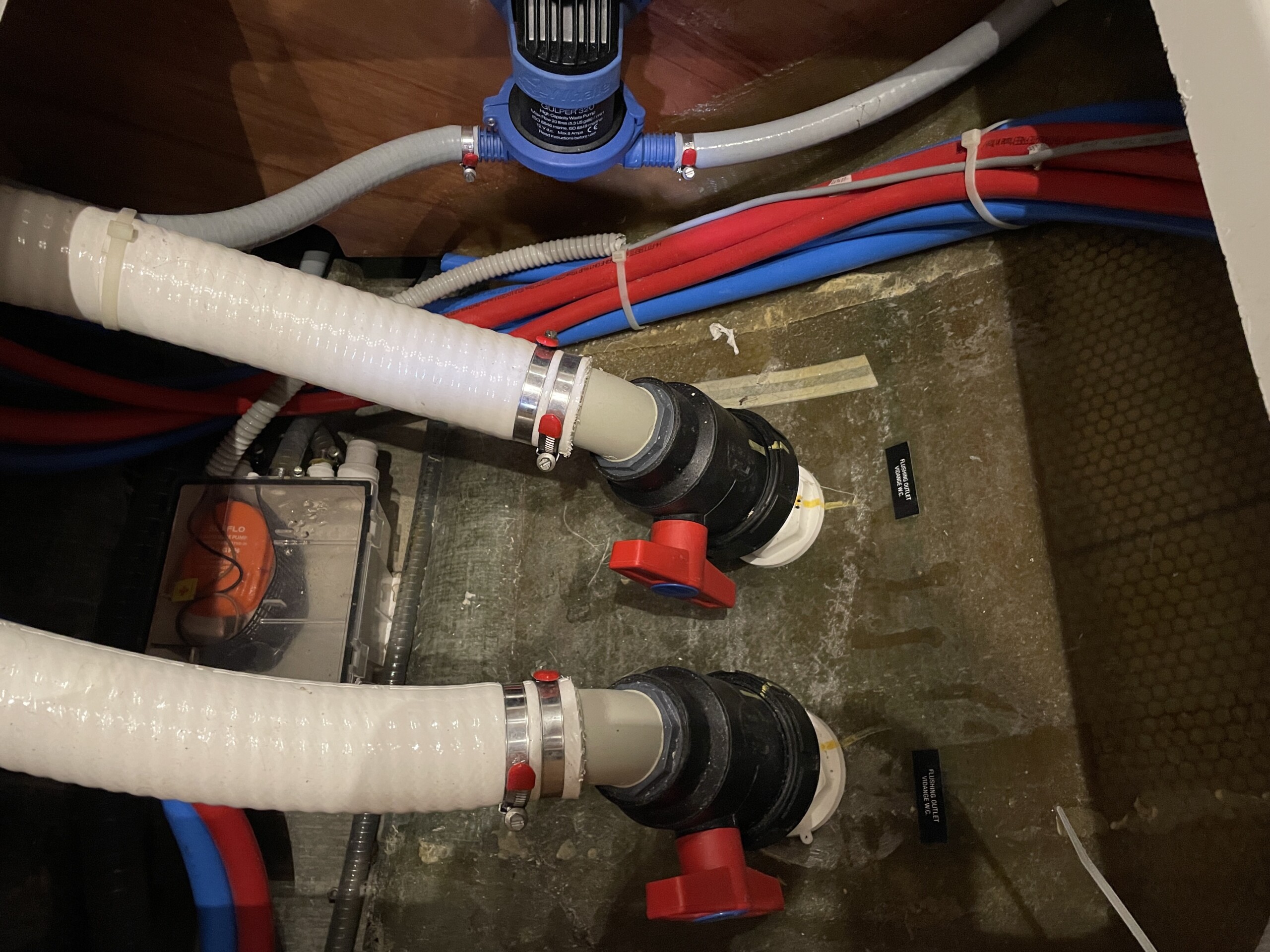

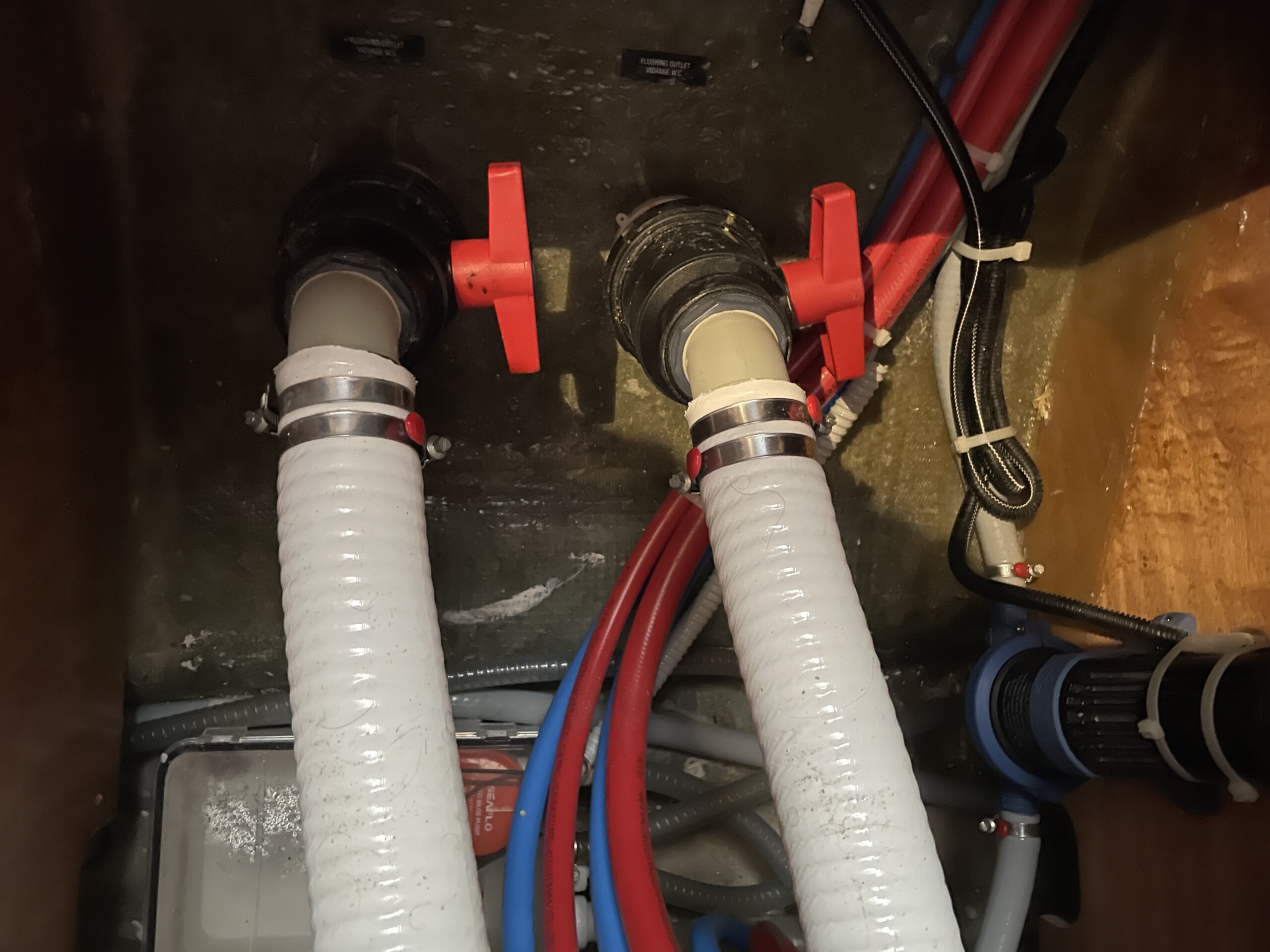

3.Waste tank valve
Location: Cabin Layout
Description: Located under the starboard passageway central floor panel. All valve handles are on the open position when parallel to the pipe and closed when vertical.
WARNING: All waste tank valves must remain open at all times with the exception of ports and closed bays. Keeping the waste valves closed for extended toilet usage times may cause waste tank overflow and/or tank explosion.
4.Waste tank valve
Location: Cabin Layout
Description: Located under the port aft cabin passageway panel. All valve handles are on the open position when parallel to the pipe and closed when vertical.
WARNING: All waste tank valves must remain open at all times with the exception of ports and closed bays. Keeping the waste valves closed for extended toilet usage times may cause waste tank overflow and/or tank explosion.

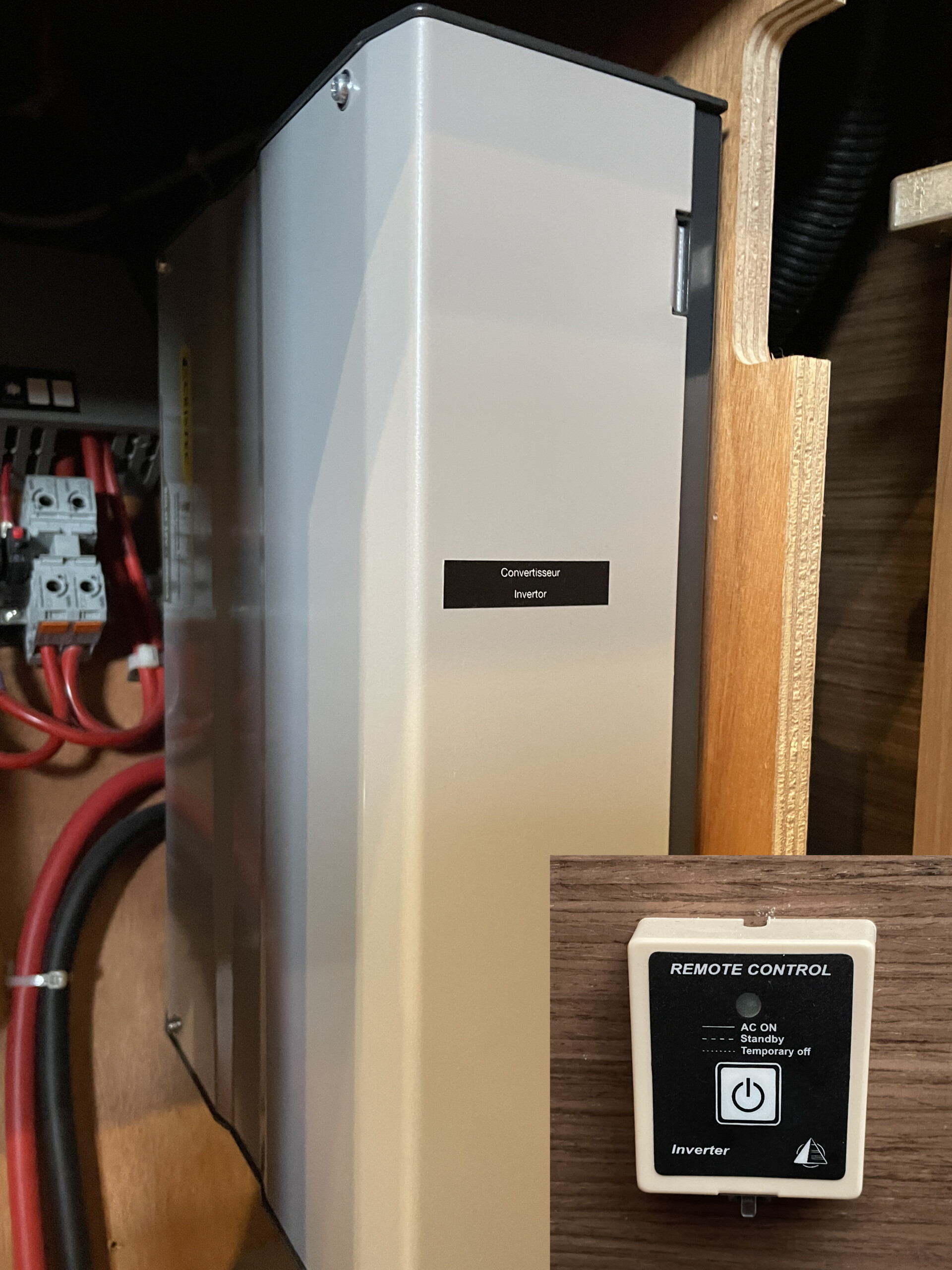

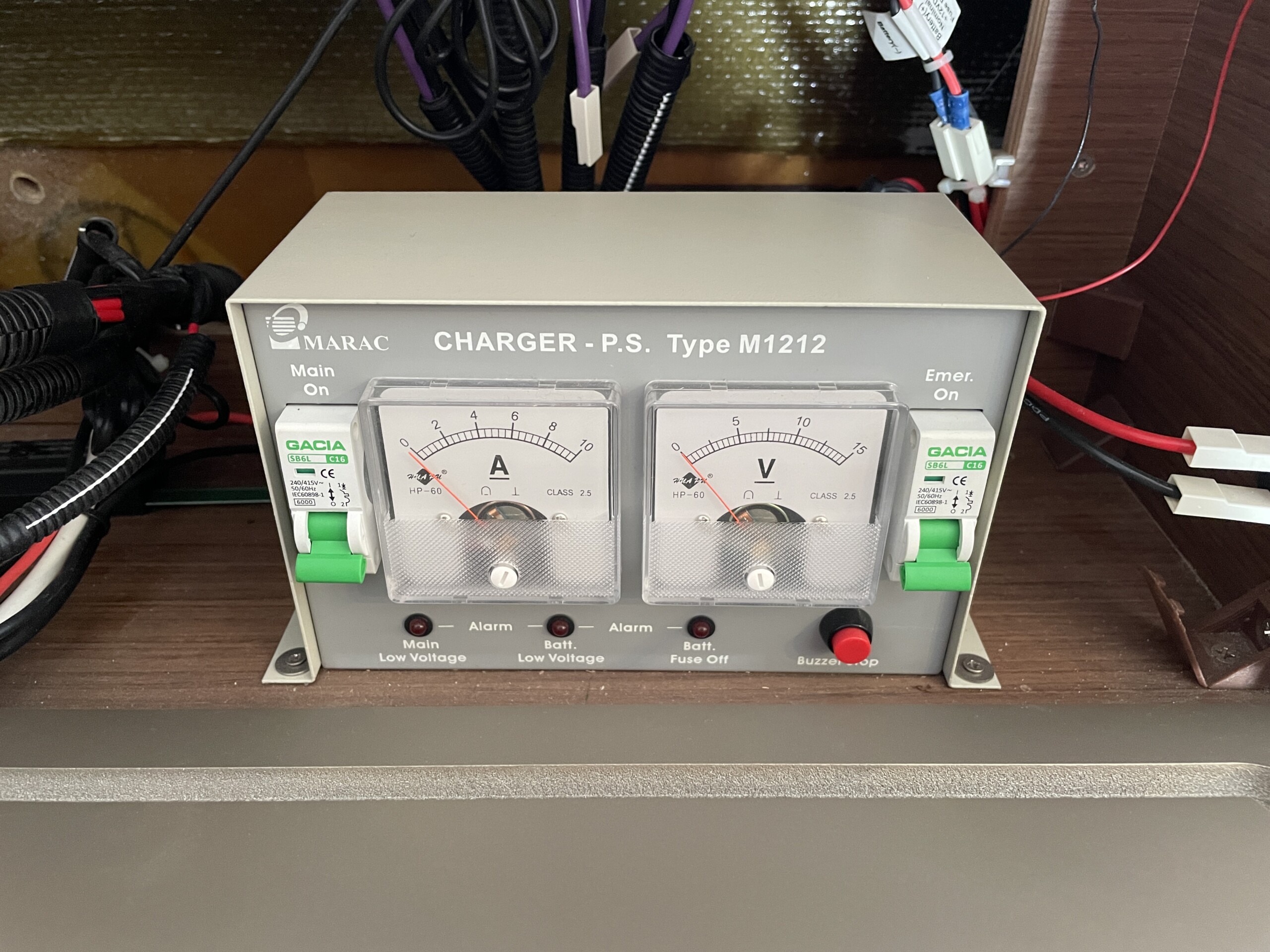

5.Inverter & remote control
Location: Deck Layout
Description: Unit located in starboard aft cabin passageway cupboard. Remote control located in electrical panel area in the saloon.
WARNING: Never operate the inverter when the boat is electrified by 220V current. Risk of damaging the system. Never use high Wattage while operating the inverter, it is intended for small intensity devices, not machines that operate on motors or respective systems (e.g. hair dryers, vacuum cleaners).

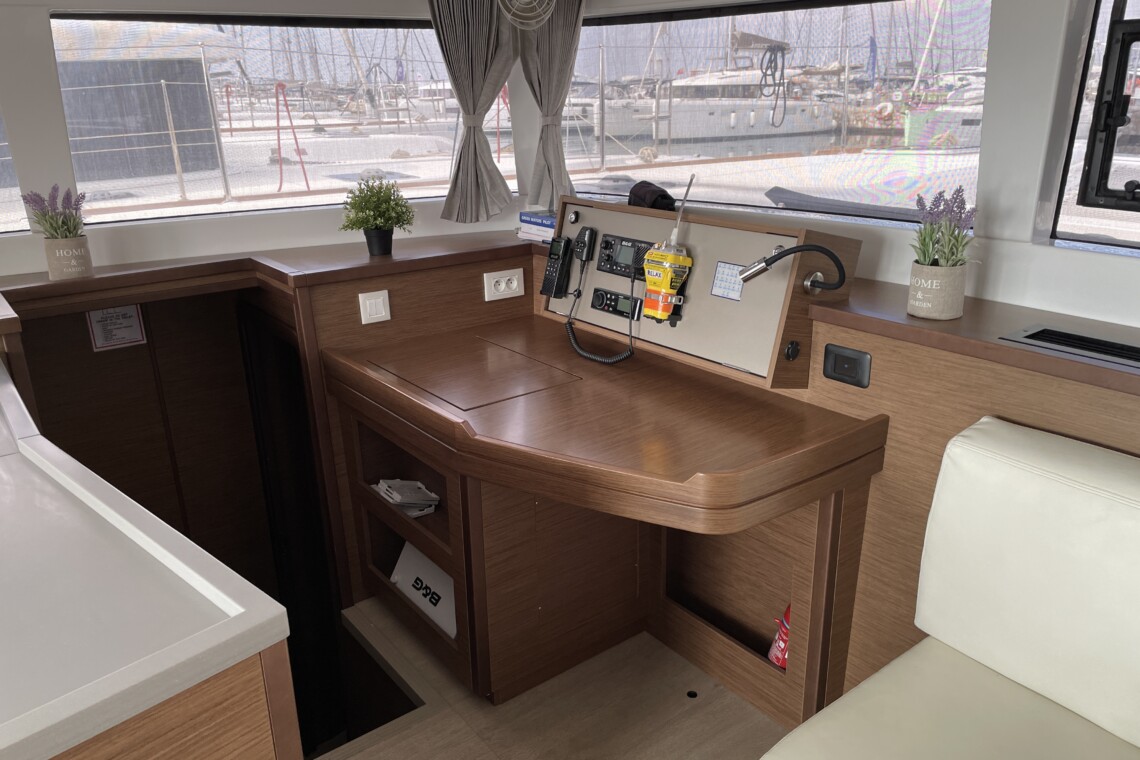

6.VHF control
Location: Deck Layout
Description: Located inside the chart table cupboard. Check the fuses on this system if you are getting an alarm from the VHF.

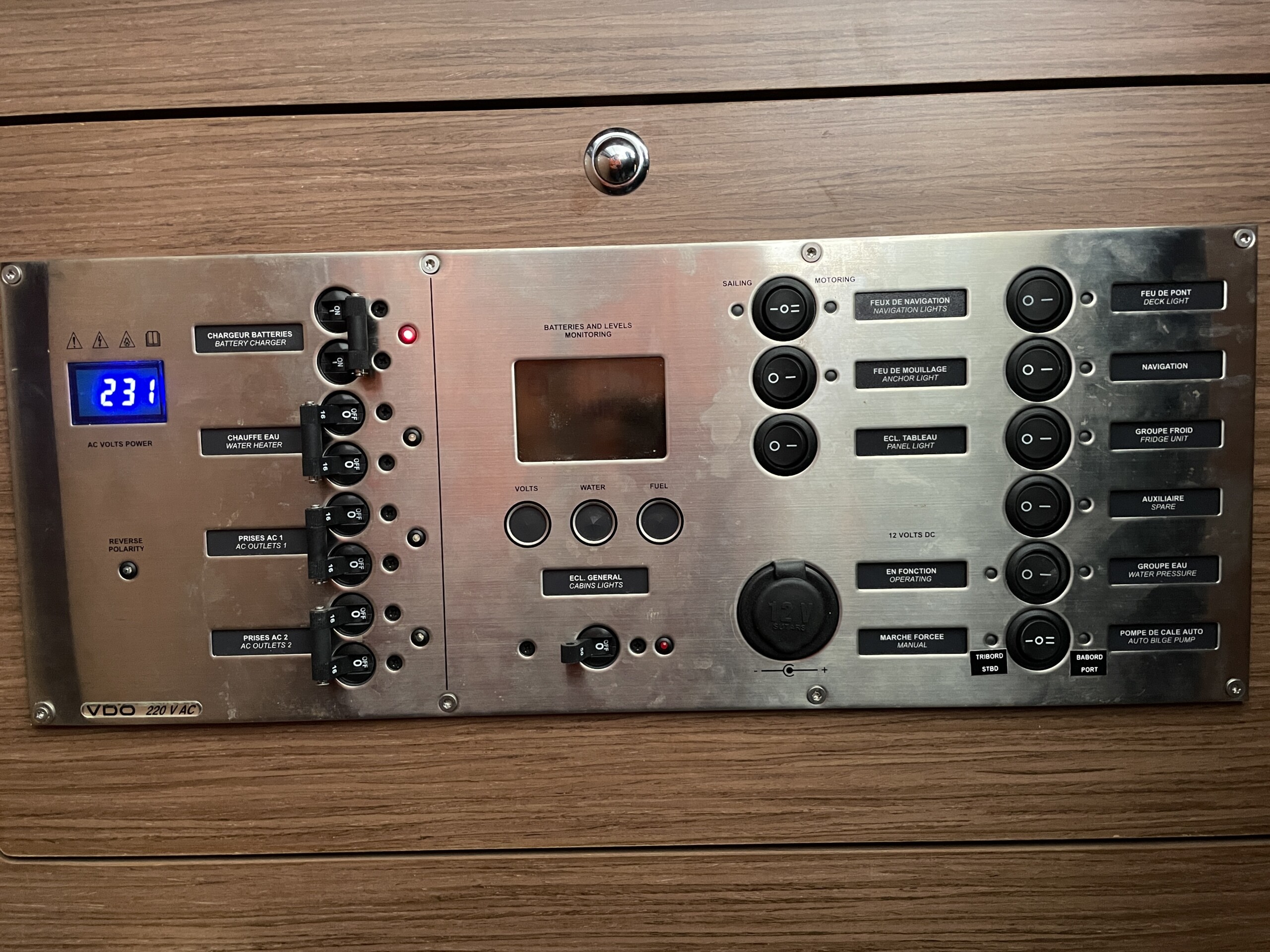

7.Main panel
Location: Deck Layout
Description: Located in the cupboard next to the starboard interior fridge unit.
The right side switches pertain to the operation the 12V current on the respective systems. The left side side switches pertain to the operation of the 220V current on the respective systems.
Note: The 220V system is functional only when on shore power or by using the generator. Primary control of the power feed is located below the panel (see No. 18).

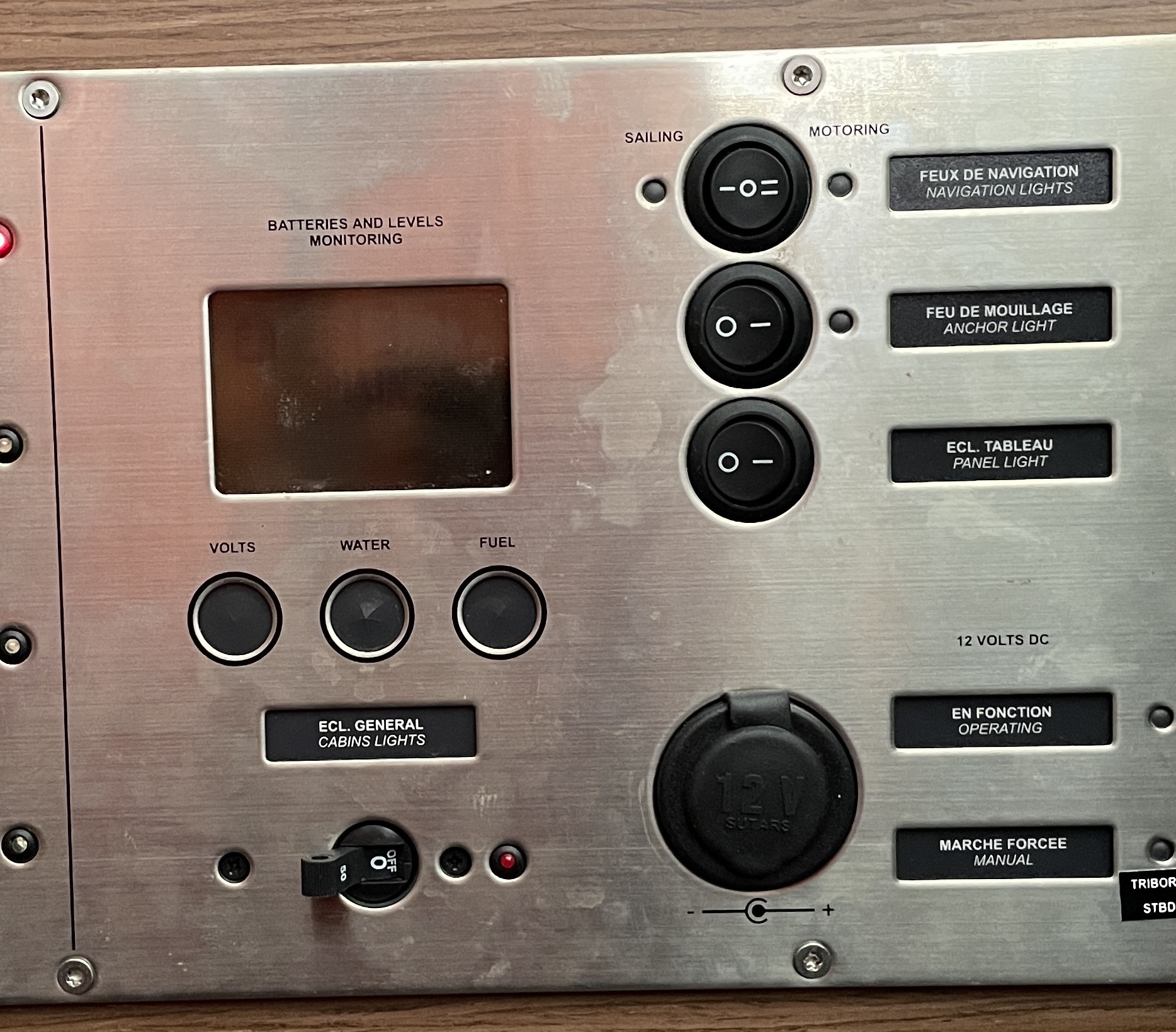

8.Tank & Power display
Location: Deck Layout
Description: The display is operated by the 3 buttons right under it and displays freshwater, diesel tank, and battery voltage levels.

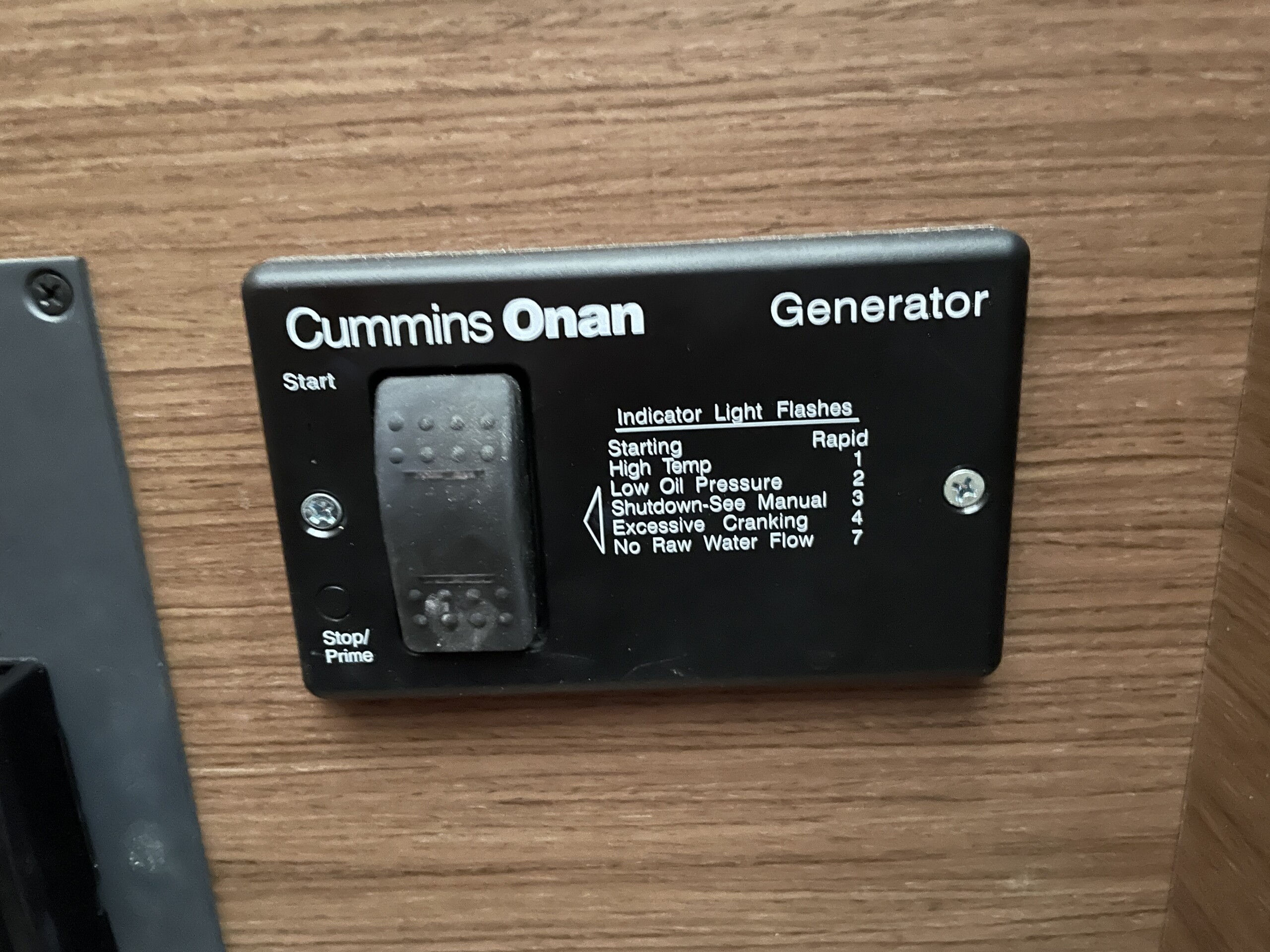

9.Generator panel
Location: Deck Layout
Description: Located under the electrical panel.
The left control panel controls the generator. The generator starts by keeping the button pressed on its top position and closes by keeping the button pressed on its bottom position.
WARNING: When starting the generator, never stop pressing the button until you hear the generator start, the orange flashing light stops and there is a steady green light. Failure to do so may result in damaging the generator.

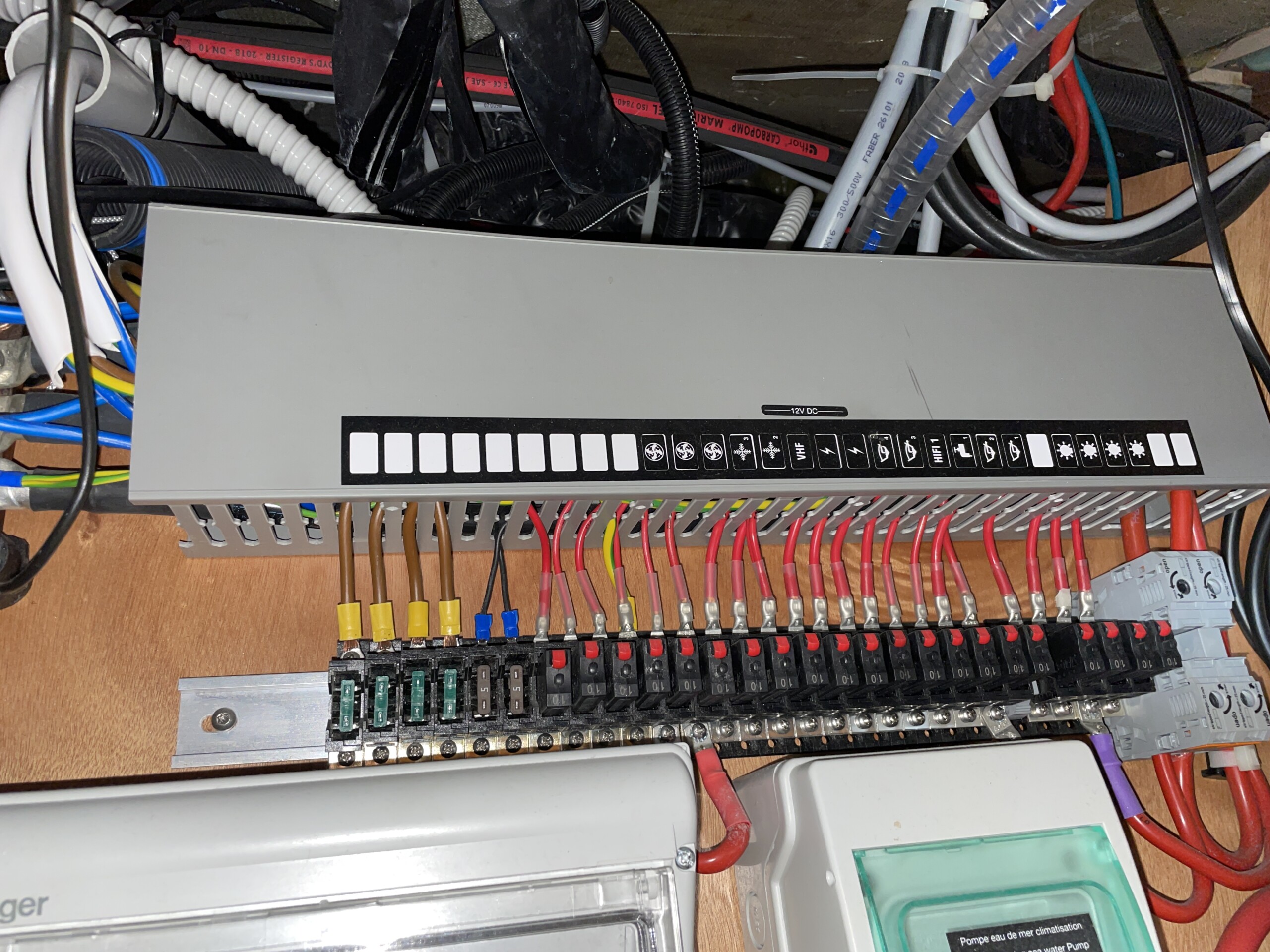

10.Fuse box 12V
Location: Deck Layout
Description: Located in starboard aft cabin passageway cupboard.

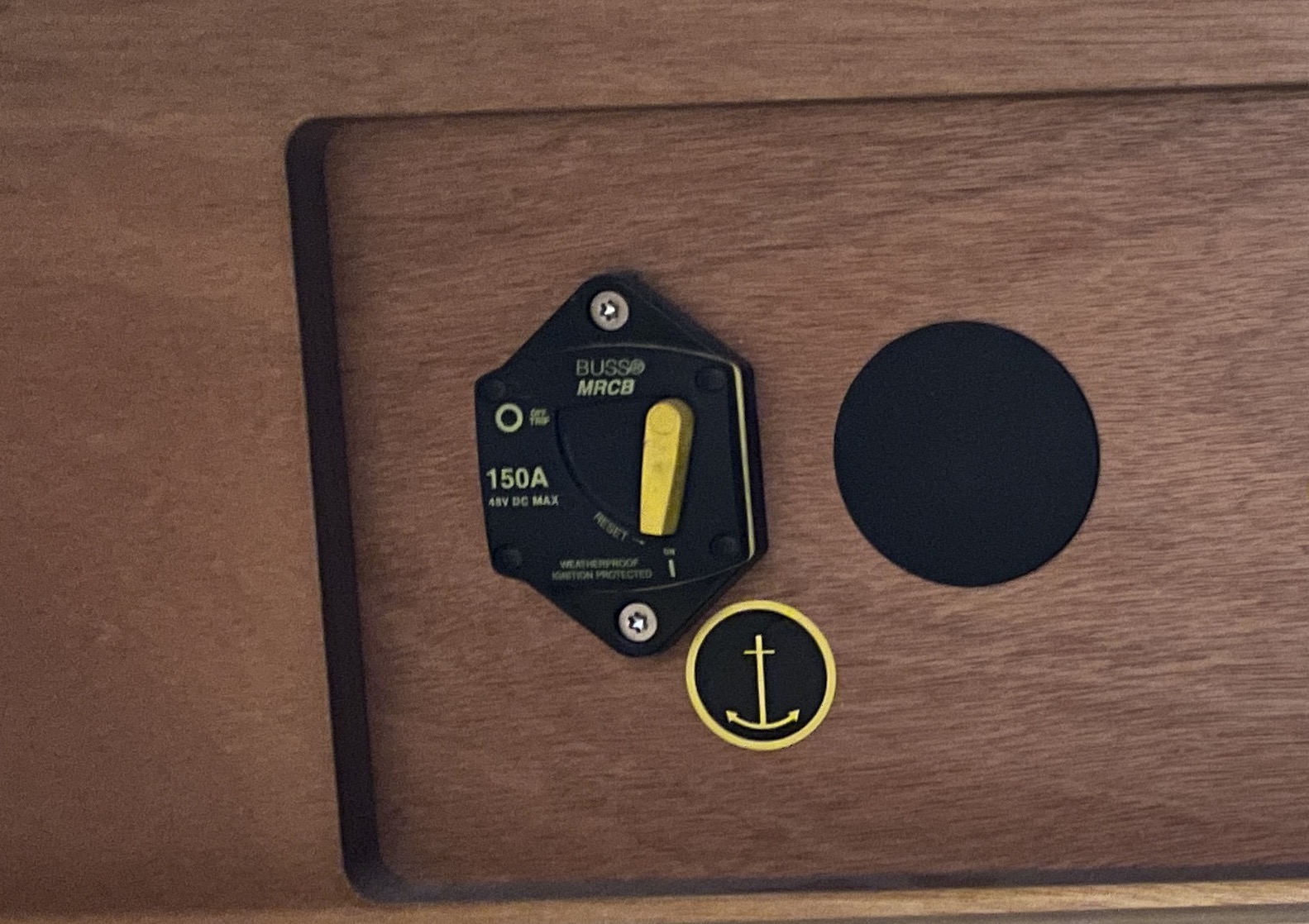

11.Windlass thermal fuse
Location: Deck Layout
Description: Located in the cupboard under the bed in the starboard aft cabin.
If the anchor windlass stops responding to the controller commands check this fuse. If the fuse is off, put it back in the on position and wait 5 minutes for the anchor windlass motor to cool down.
WARNING: Operating the anchor windlass immediately after putting the fuse back in the on position may destroy the anchor windlass motor.

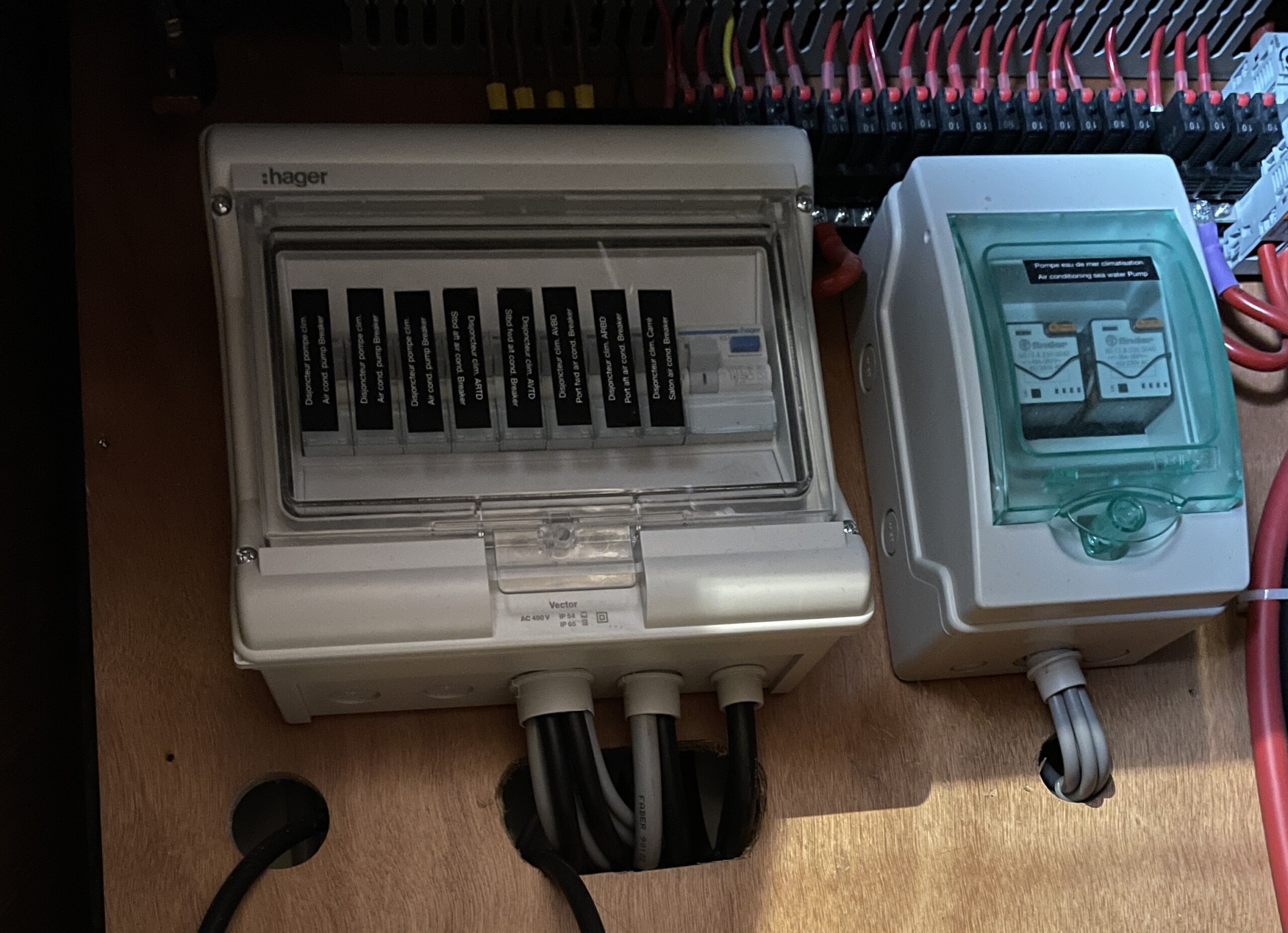

12.A/C & 220V AC interior fuses
Location: Deck Layout
Description: Located in starboard aft cabin passageway cupboard.

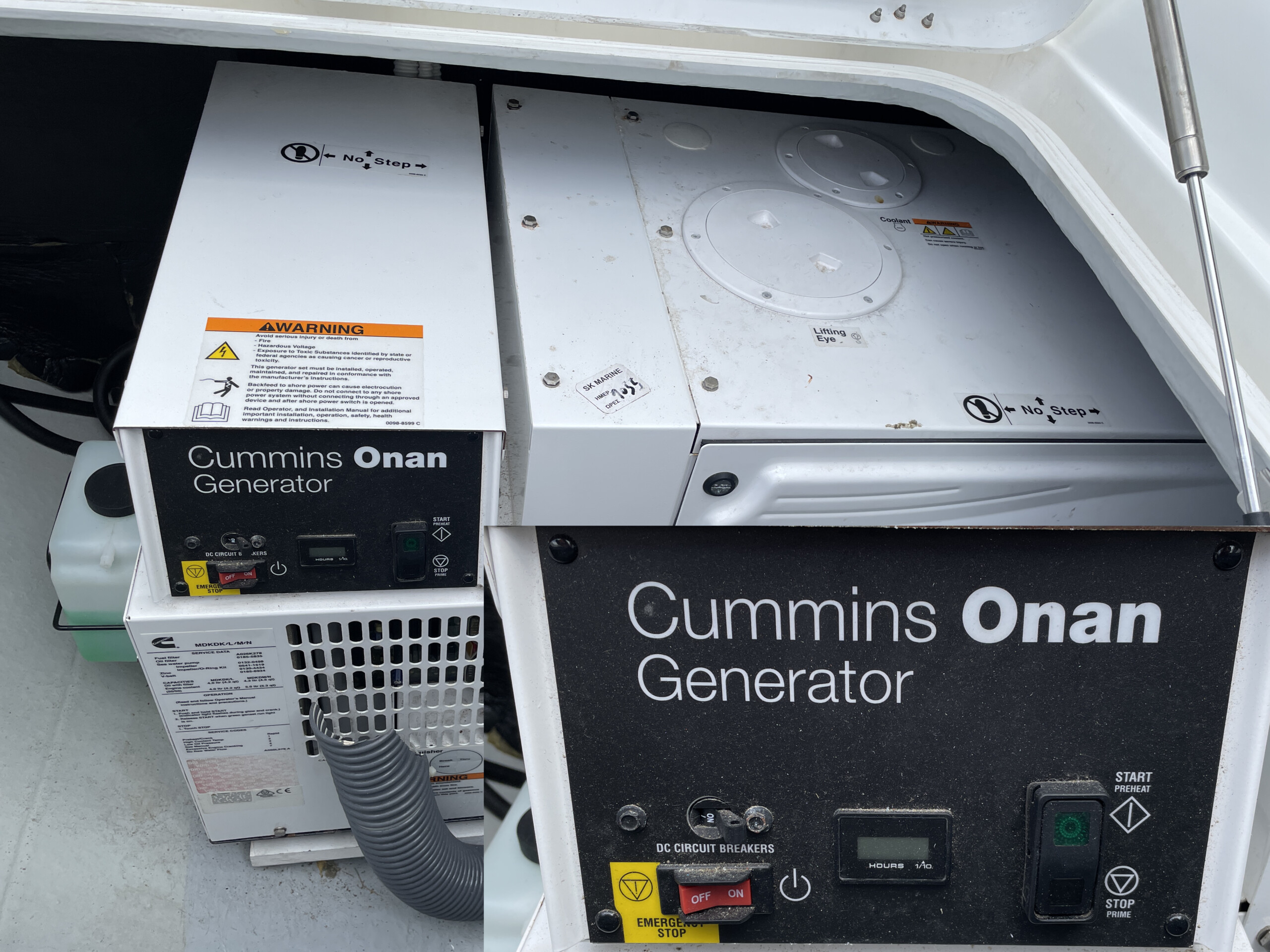

13.Generator
Location: Deck Layout
Description: Located in the starboard fore deck locker, next to the anchor windlass.
WARNING: This system should only be tampered with by a professional or by the skipper under the instructions of the base.

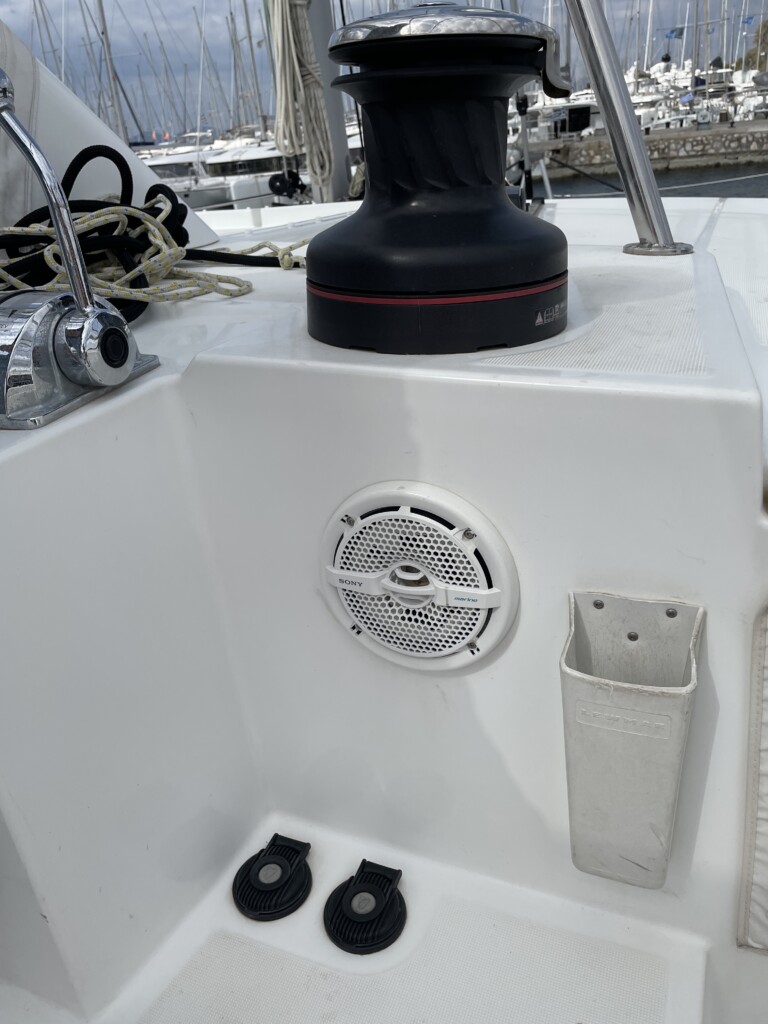

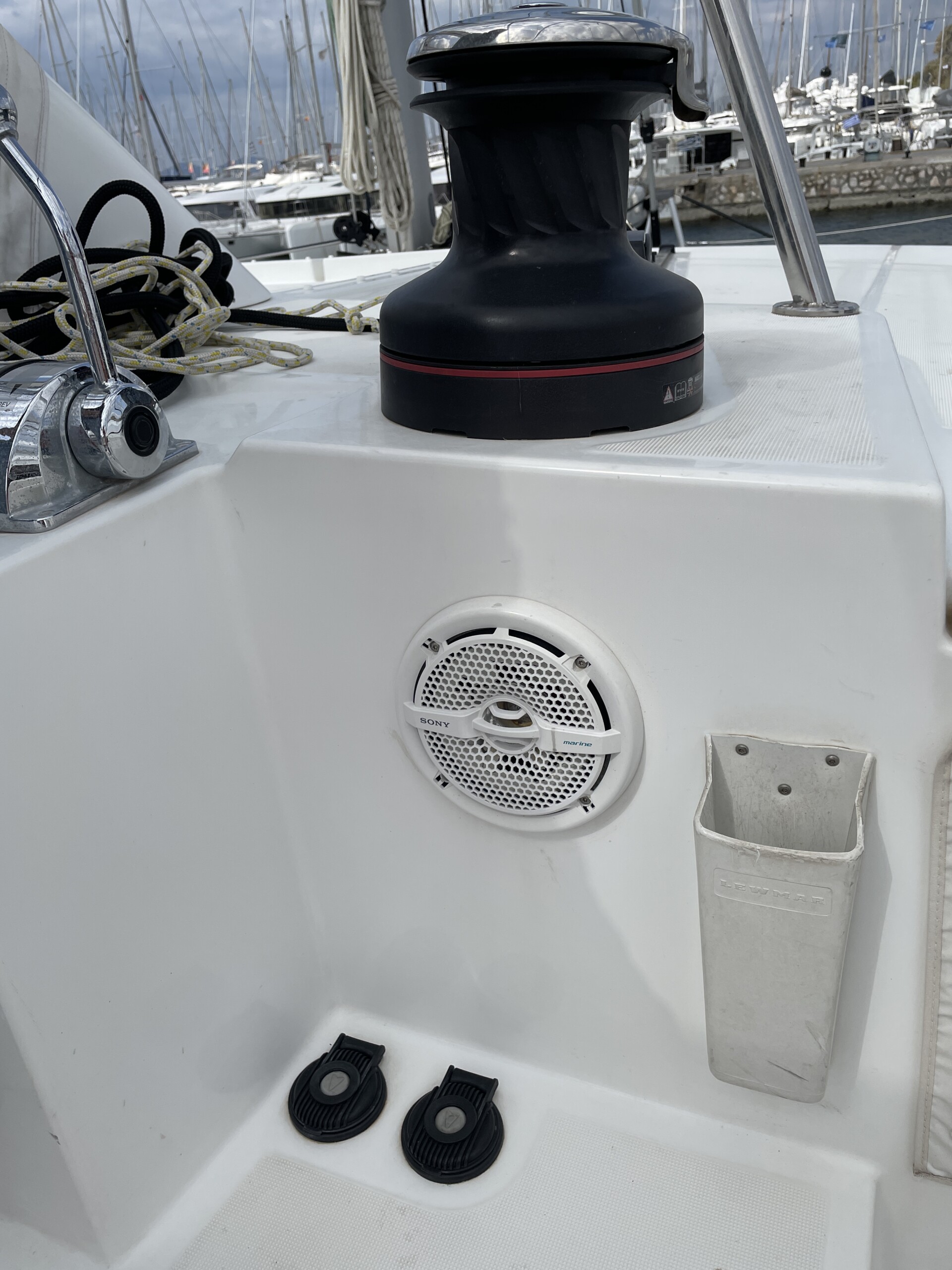

14.Electric Winch
Location: Bridge Layout
Description: Located in the aft side of the flybridge. Operated by the buttons under it.
WARNING: When operating the electric winch, always make sure that there are no fixed lines that may be pulled while pulling a line with the winch. Any fixed lines that may get pulled through the operation of the winch may snap and may result in serious damage to people and/or the mast or sails.

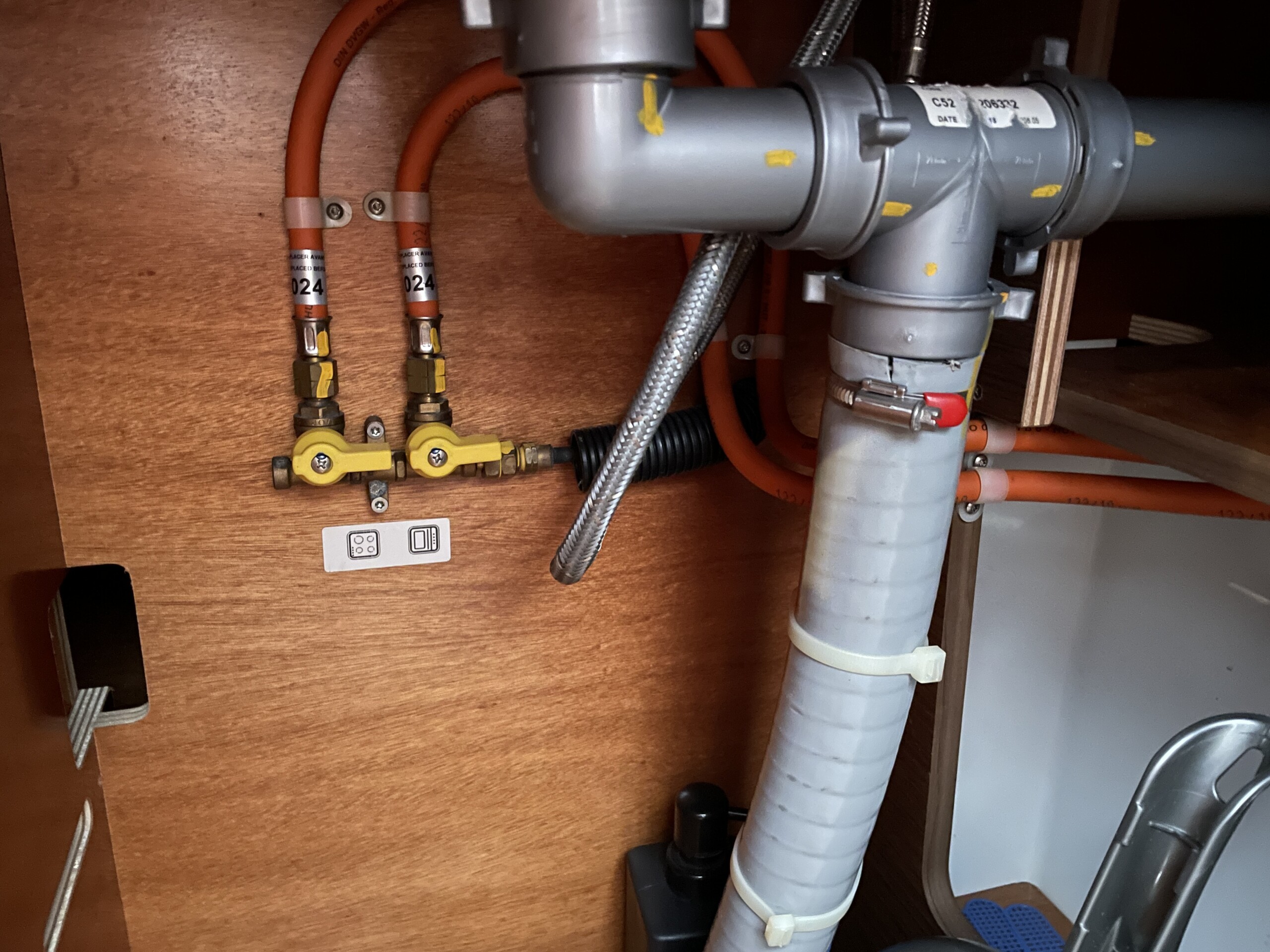

15.Galley Gas system
Location: Deck Layout
Description: Located in the cupboard under the galley.
All valve handles are on the open position when parallel to the pipe and closed when vertical.
WARNING: Always close the gas valves when not in use or when replacing the gas bottles. Never leave unattended when operating the stove and oven.
16.Deck Gas system
Location: Deck Layout
Description: Located in the locker under the exterior table.
WARNING: Always check for gas leaks when replacing the bottle. Don’t smoke or use an open flame close to the bottles.
Risk of explosion, serious injury and/or death.

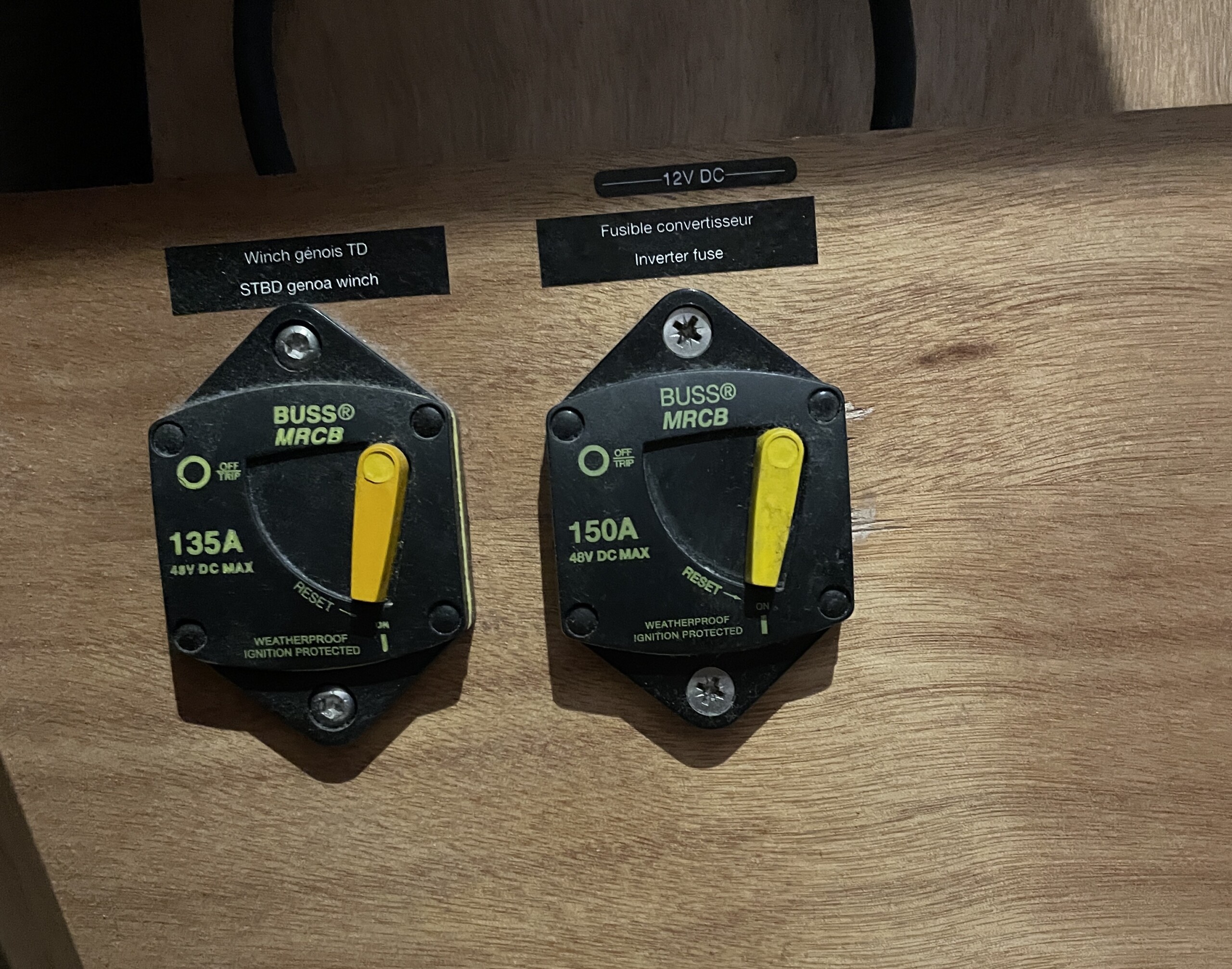

17.Electric winch & inverter thermal fuses
Location: Deck Layout
Description: Located in starboard aft cabin passageway cupboard.
If the anchor windlass stops responding to the controller commands check this fuse. If the fuse is off, put it back in the on position and wait 5 minutes for the anchor windlass motor to cool down.
WARNING: Operating the anchor windlass immediately after putting the fuse back in the on position may destroy the anchor windlass motor.

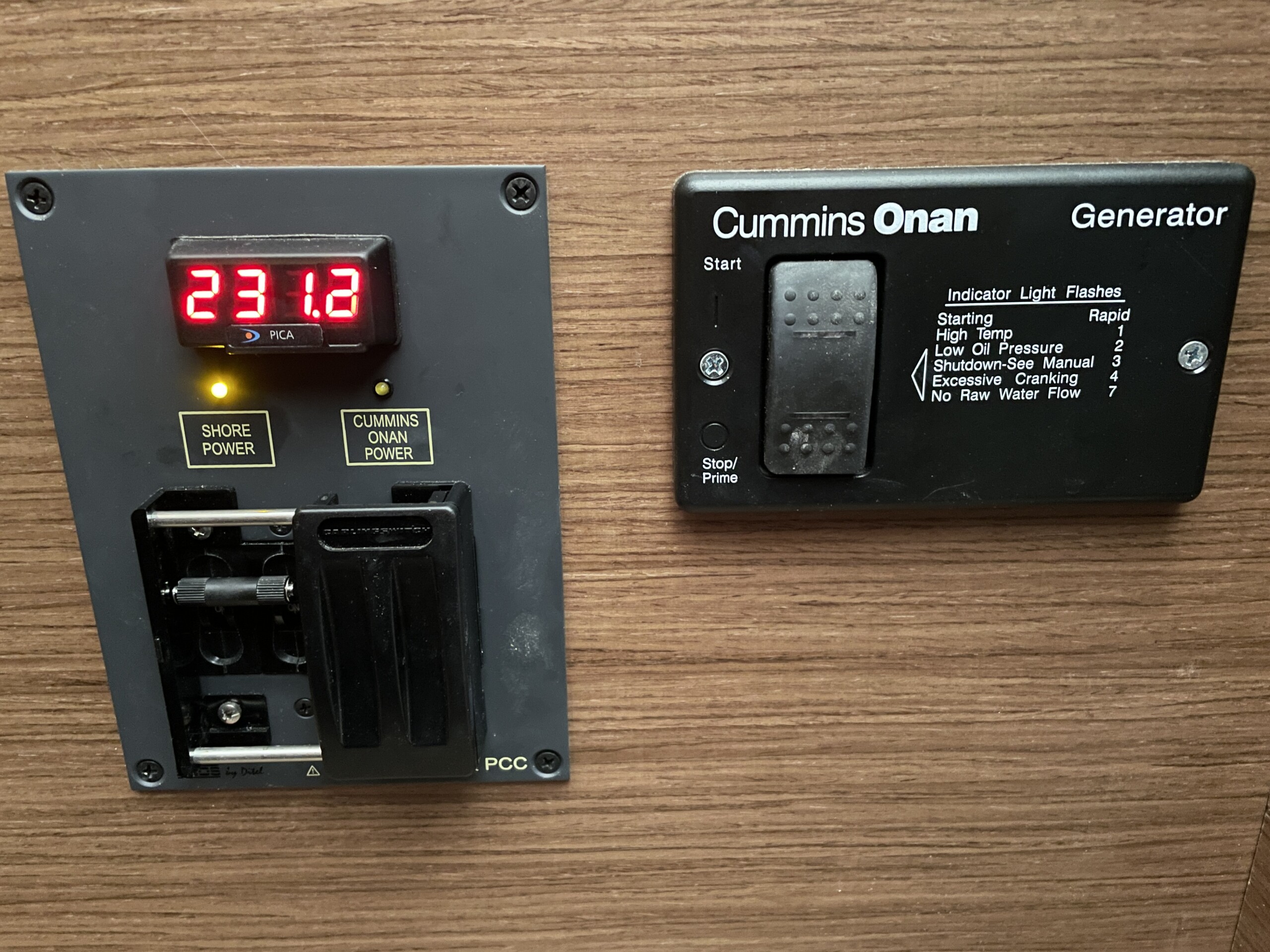

18.220V Main Switches
Location: Deck Layout
Description: Located in the cupboard next to the starboard interior fridge unit, next to the Generator Control.
Whenever the boat is electrified by 220V current, the respective light gives the indication as to which source is providing the current, either the shore power cable or the generator. The main fuses need to be in the open position (top) in order for the current to pass through to the rest of the boat.
WARNING: You should never have both switches on the on position at the same time. The plastic cover is a security to ensure that when one system is operated the other is not. To operate the generator switch you switch off the shore power switch and slide the plastic cover to the shore power side and vice versa.
