Lagoon 42

Download here the bareboat Terms & Conditions

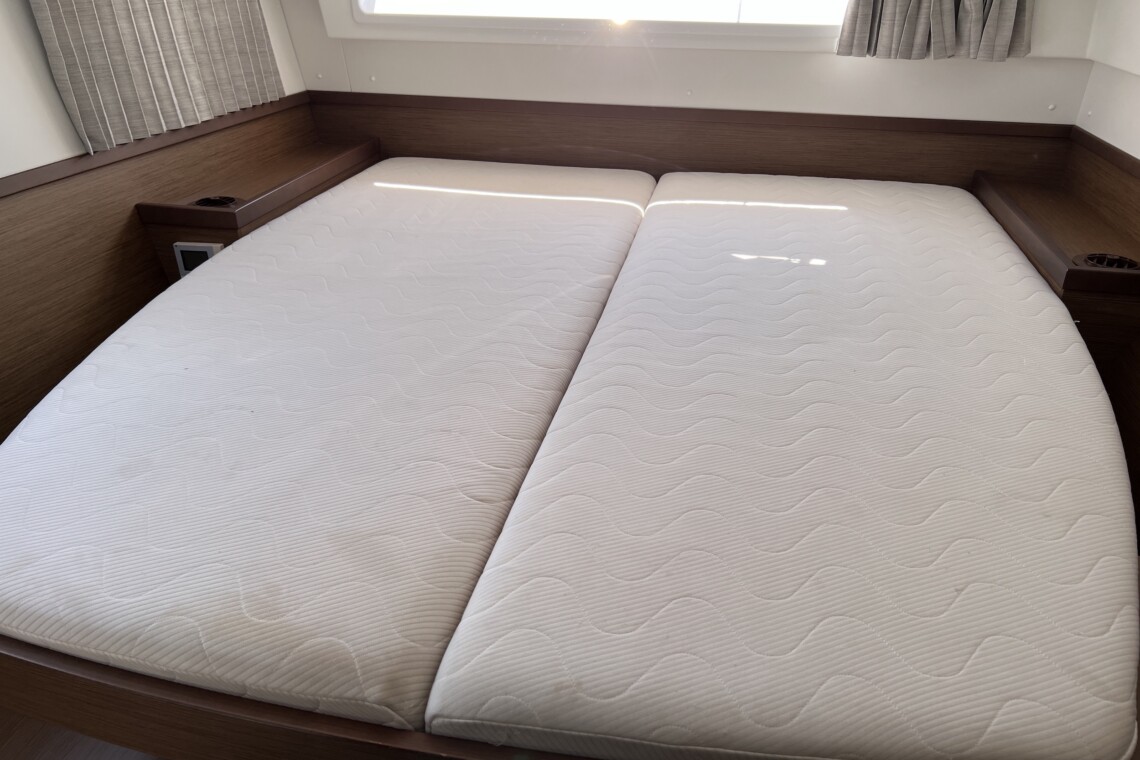

Accommodation

Registered protocol: max 12 pax (people)

Accommodation in:
4 double cabins (4×2 pax) 8 pax total

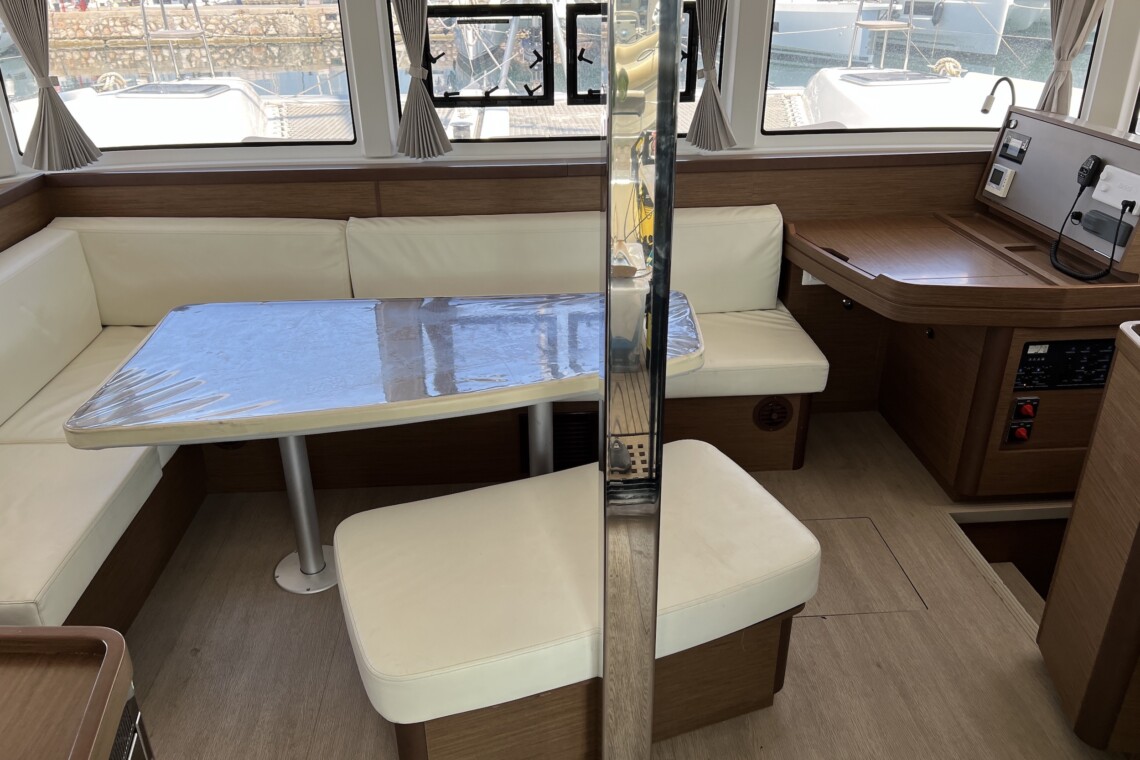

1 saloon table convertible 2 pax total
2 skipper cabins (2×1 pax) 2 pax total

Specs I

Length overall: 12.80m
Length at waterline: 12.50m
Beam: 7.70m
Draft: 1.25m
Displacement: 12.0t
Engines: 2x53hp diesel Yanmar

Specs II

Fuel capacity: 600l
Water capacity: 600l
Mainsail area: 69.00sq.m
Genoa area: 35sq.m
Total sail area: 104sq.m
EU Homologation: Cat. A 10 per

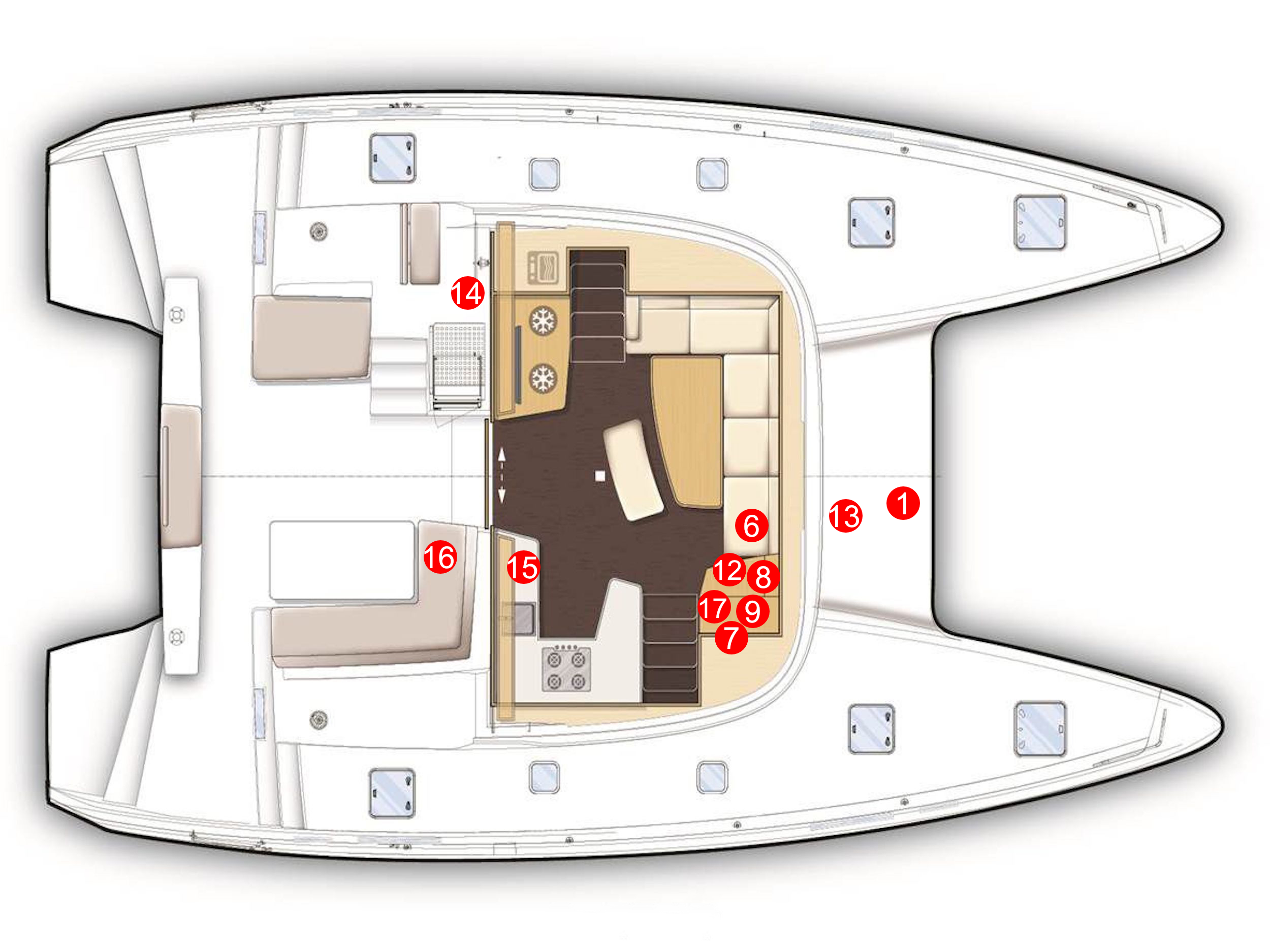

Deck Layout

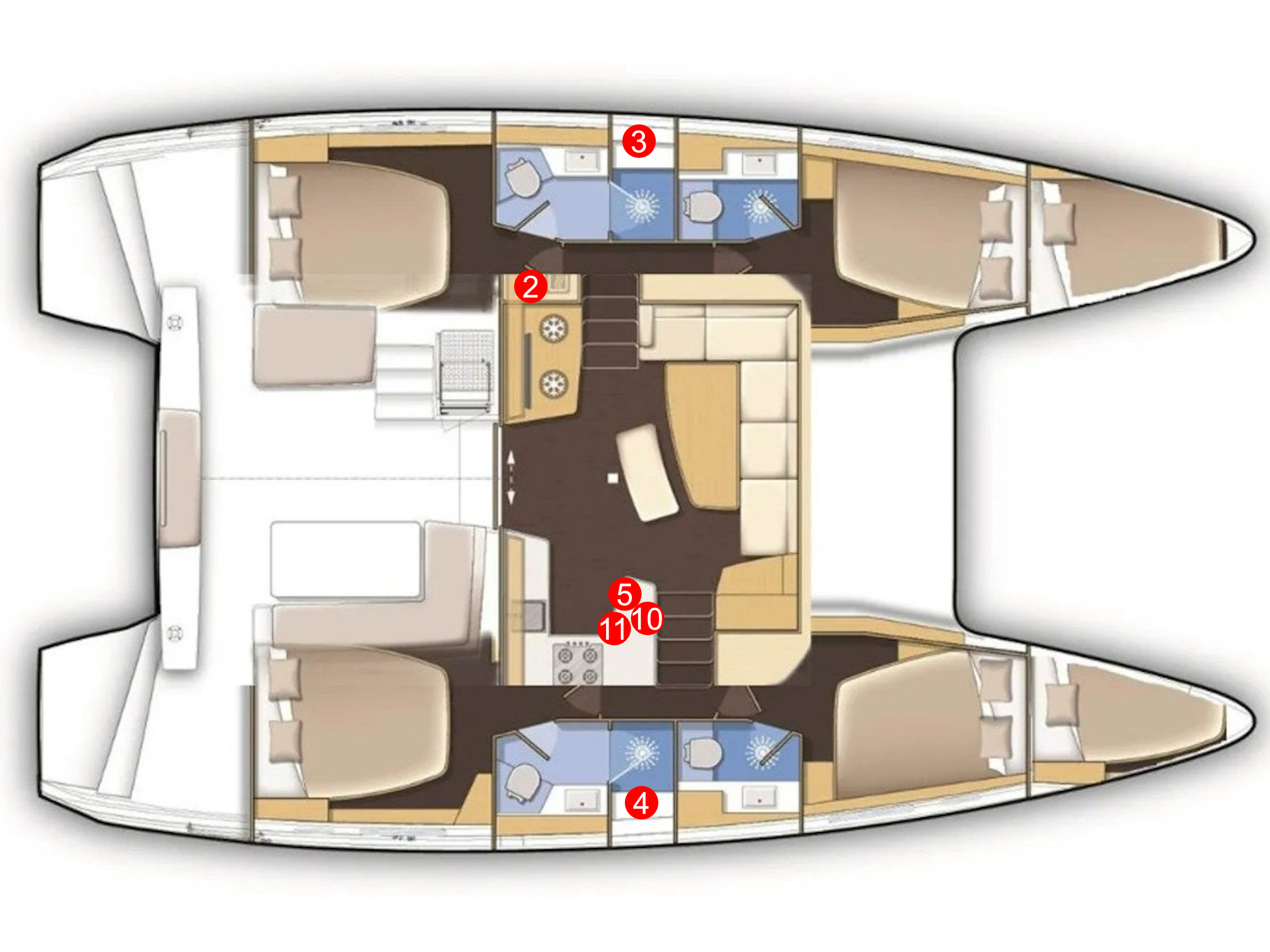

Cabins Layout

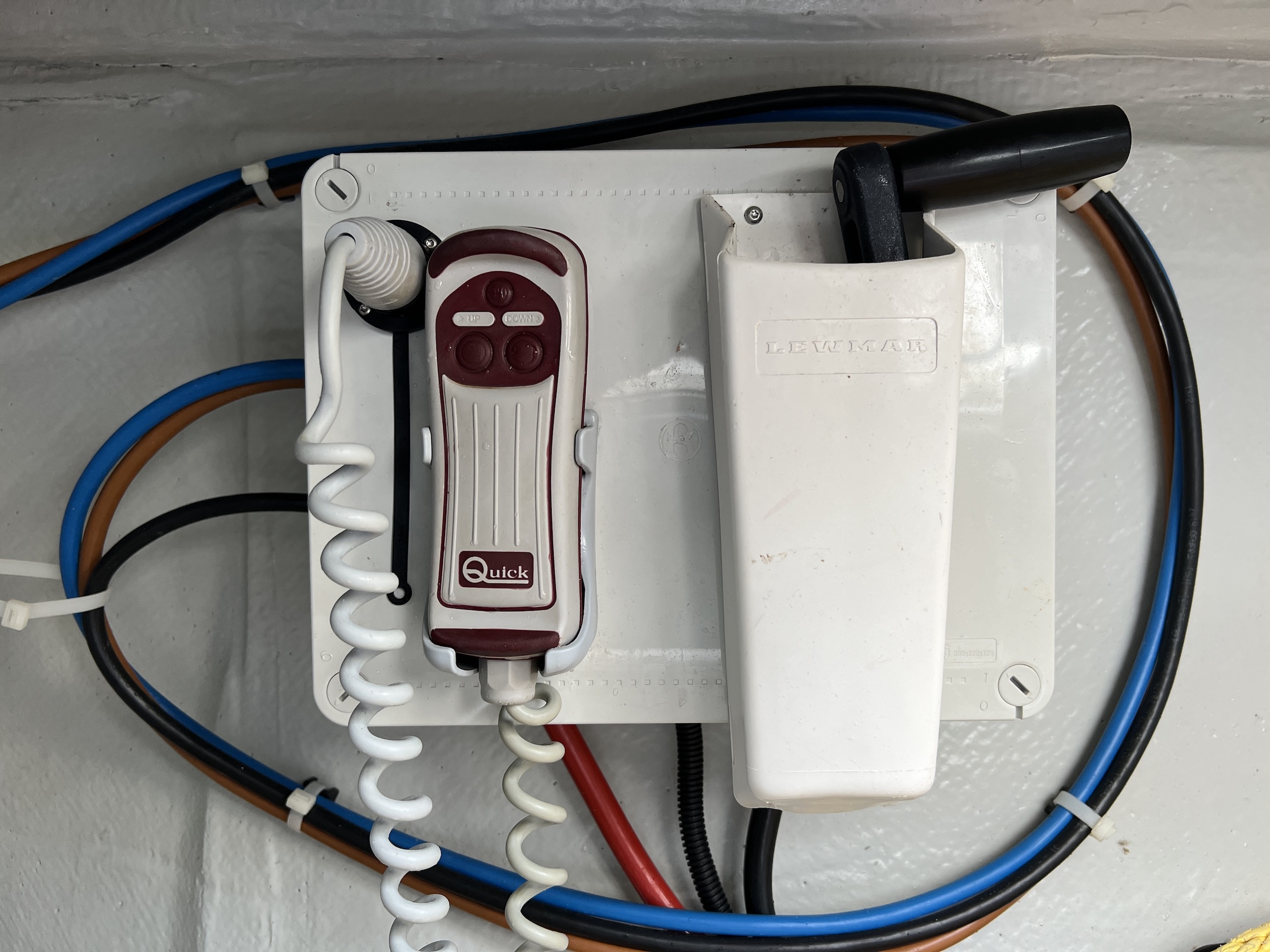

1.Windlass

Location: Deck Layout
Description: Located at the fore, controller at generator locker right behind the winch. Controlled by the windlass controller next to it. Used to drop and pull up the anchor.

WARNING: This system should only be tampered with by a professional or by the skipper under the instructions of the base.

2.Water tank switch

Location: Deck Layout
Description: Located at the central passageway cupboard at the Aft Port Cabin area, next to the escape hatch. Switching the handle switched the feed between the two water tanks.

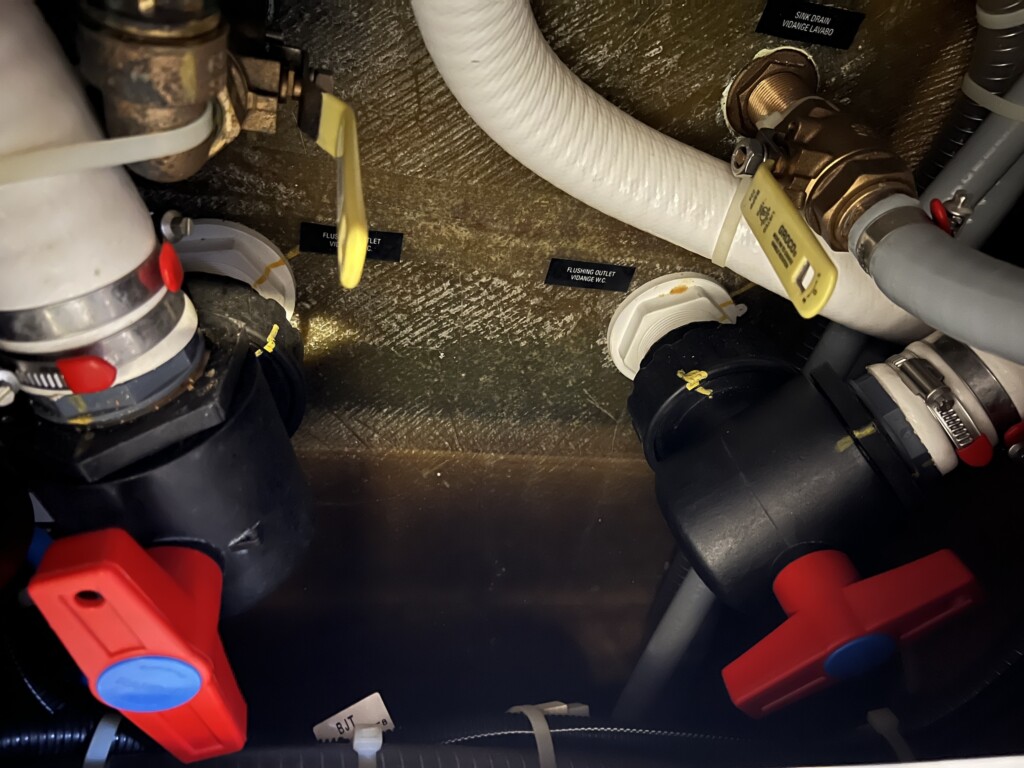

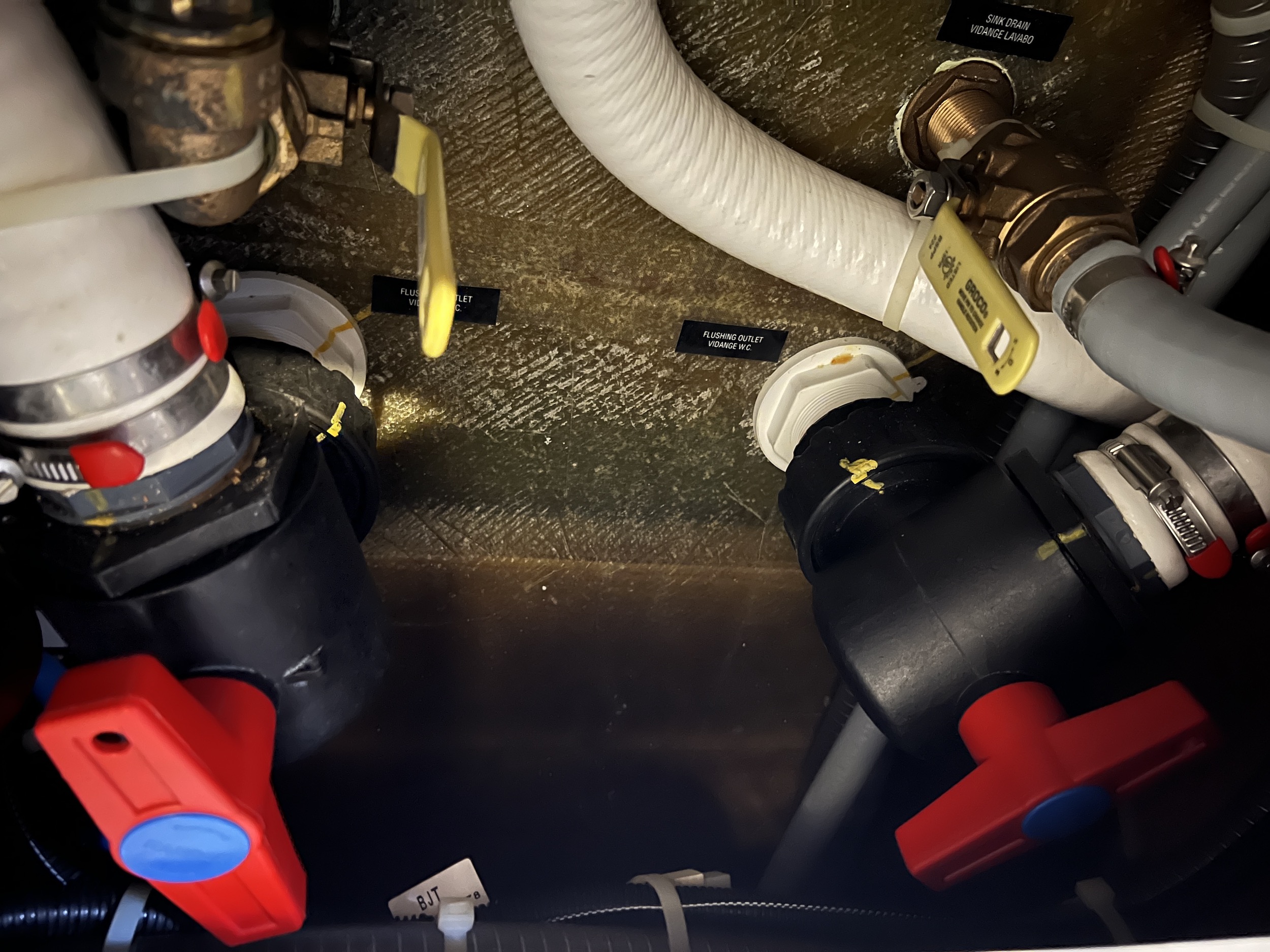

3.Waste tank valve

Location: Cabin Layout
Description: Located in the side shower locker in the aft port toilet. All valve handles are on the open position when parallel to the pipe and closed when vertical.

WARNING: All waste tank valves must remain open at all times with the exception of ports and closed bays. Keeping the waste valves closed for extended toilet usage times may cause waste tank overflow and/or tank explosion.

4.Waste tank valve

Location: Cabin Layout
Description: Located in the side shower locker in the aft starboard toilet. All valve handles are on the open position when parallel to the pipe and closed when vertical.

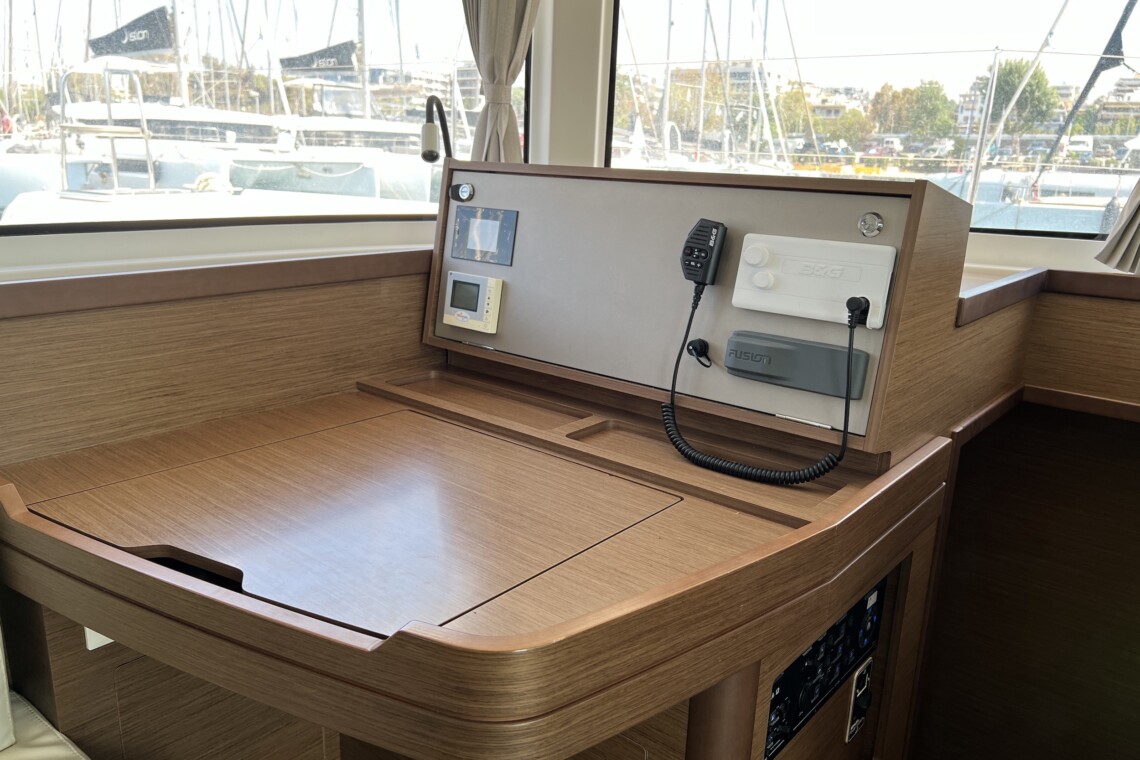

6.VHF control

Location: Deck Layout
Description: Located under the saloon couch next to the chart table. Check the fuses on this system if you are getting an alarm from the VHF.

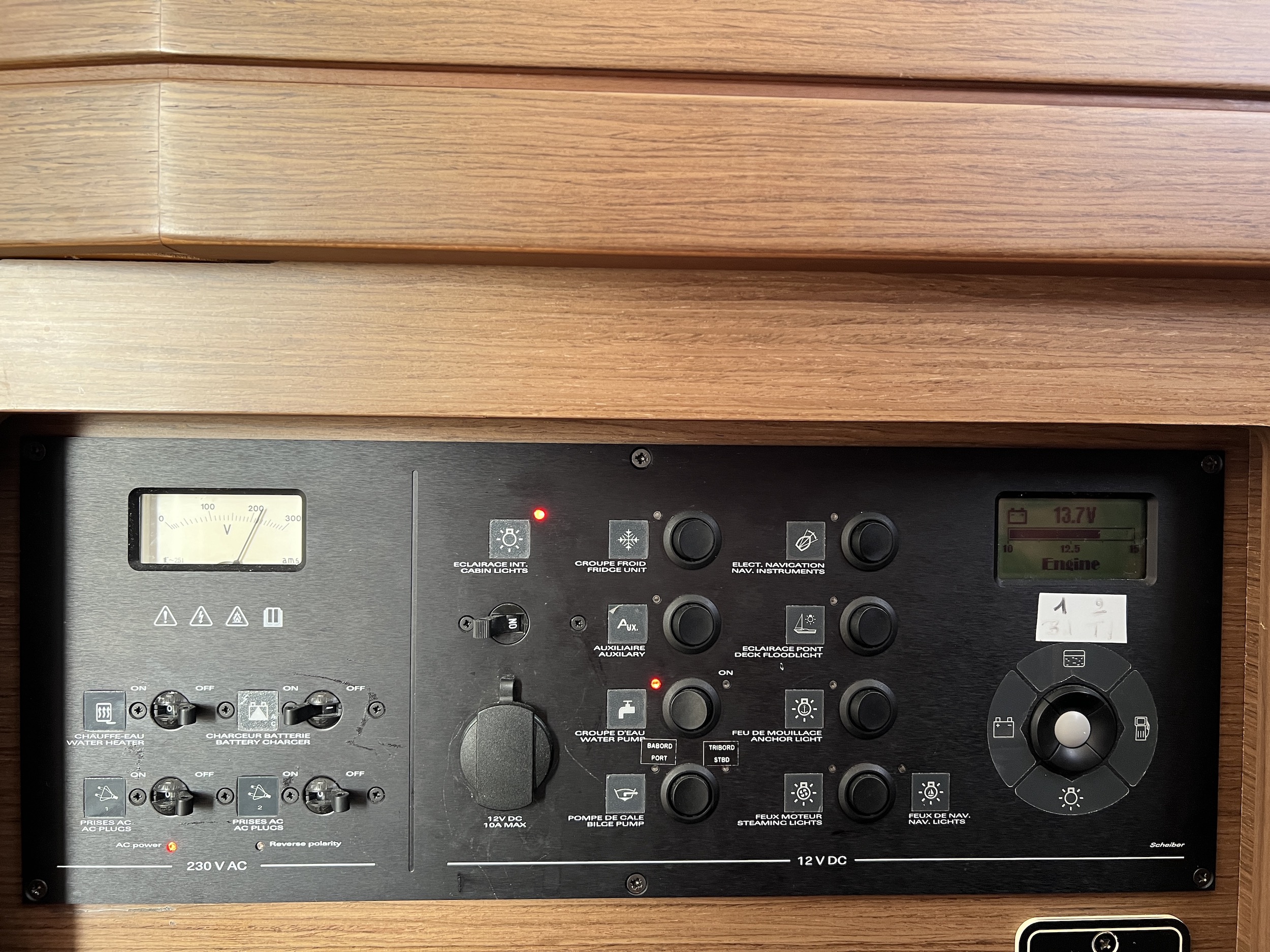

7.Main panel

Location: Deck Layout
Description: Located in the cupboard next to the starboard interior fridge unit.
The right side switches pertain to the operation the 12V current on the respective systems. The left side side switches pertain to the operation of the 220V current on the respective systems.

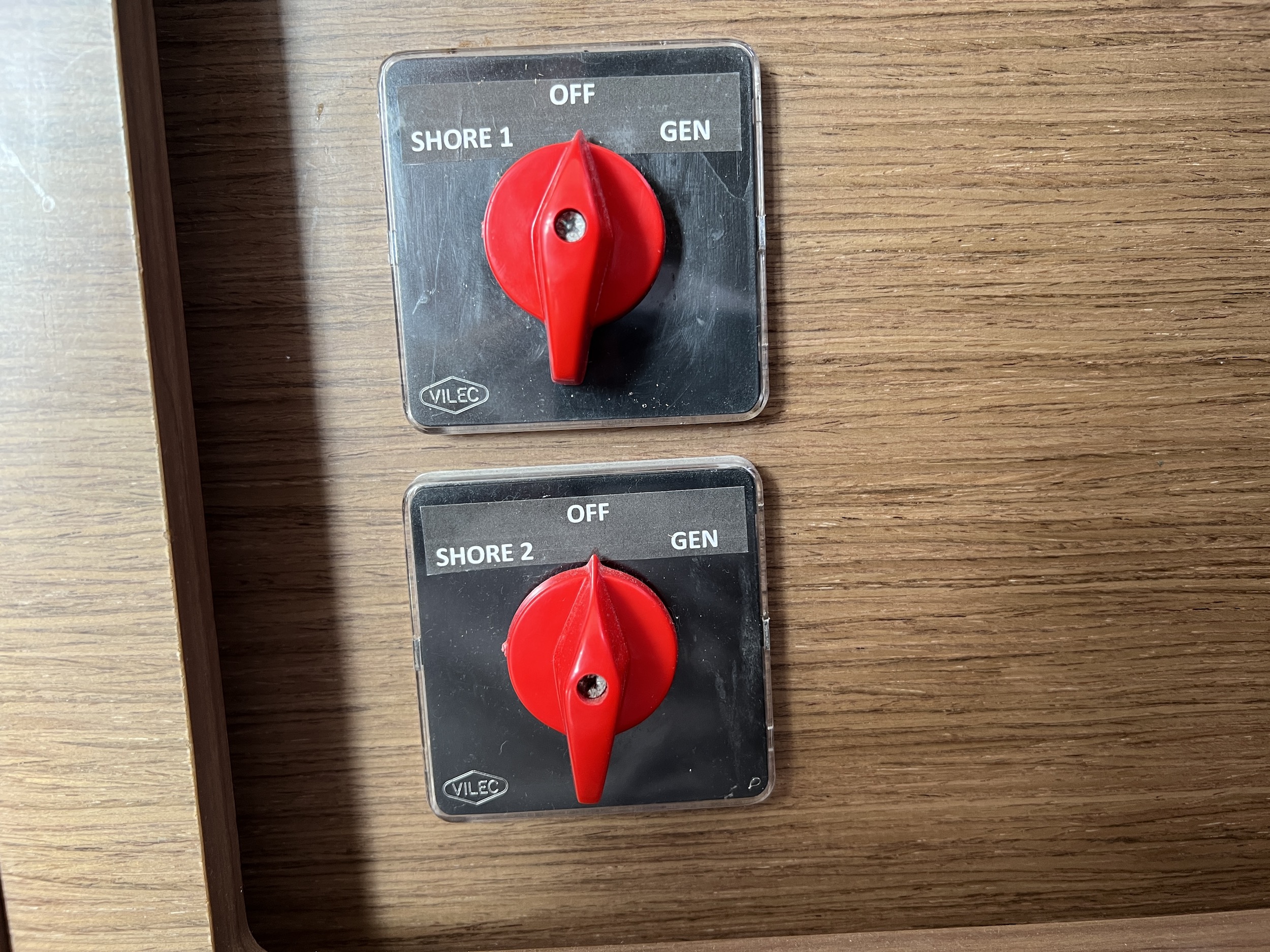

Note: The 220V system is functional only when on shore power or by using the generator. Primary control of the power feed is located below the panel (see No. 18).

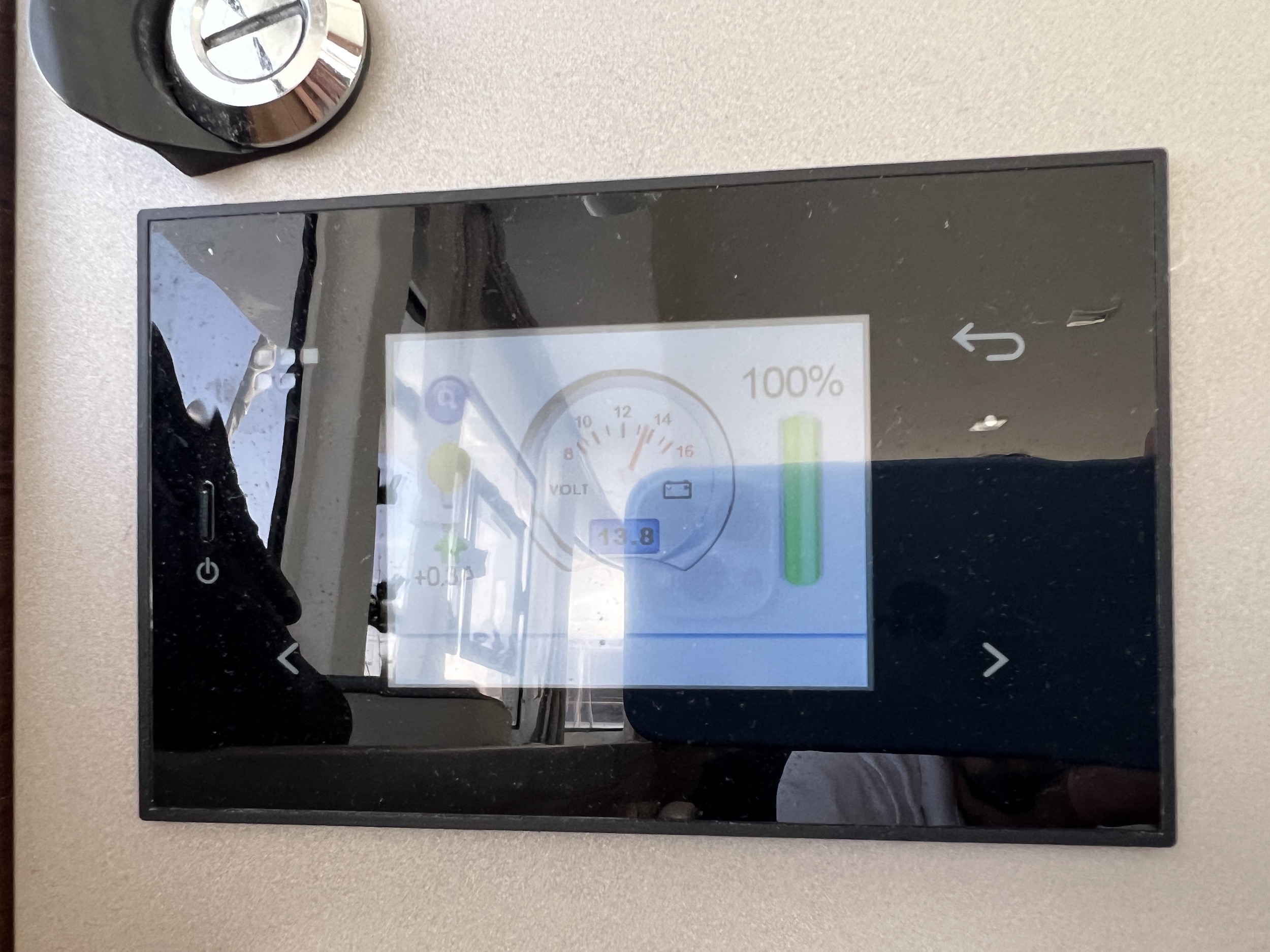

8.Tank & Power display

Location: Deck Layout
Description: Displays freshwater, diesel tank, and battery levels.

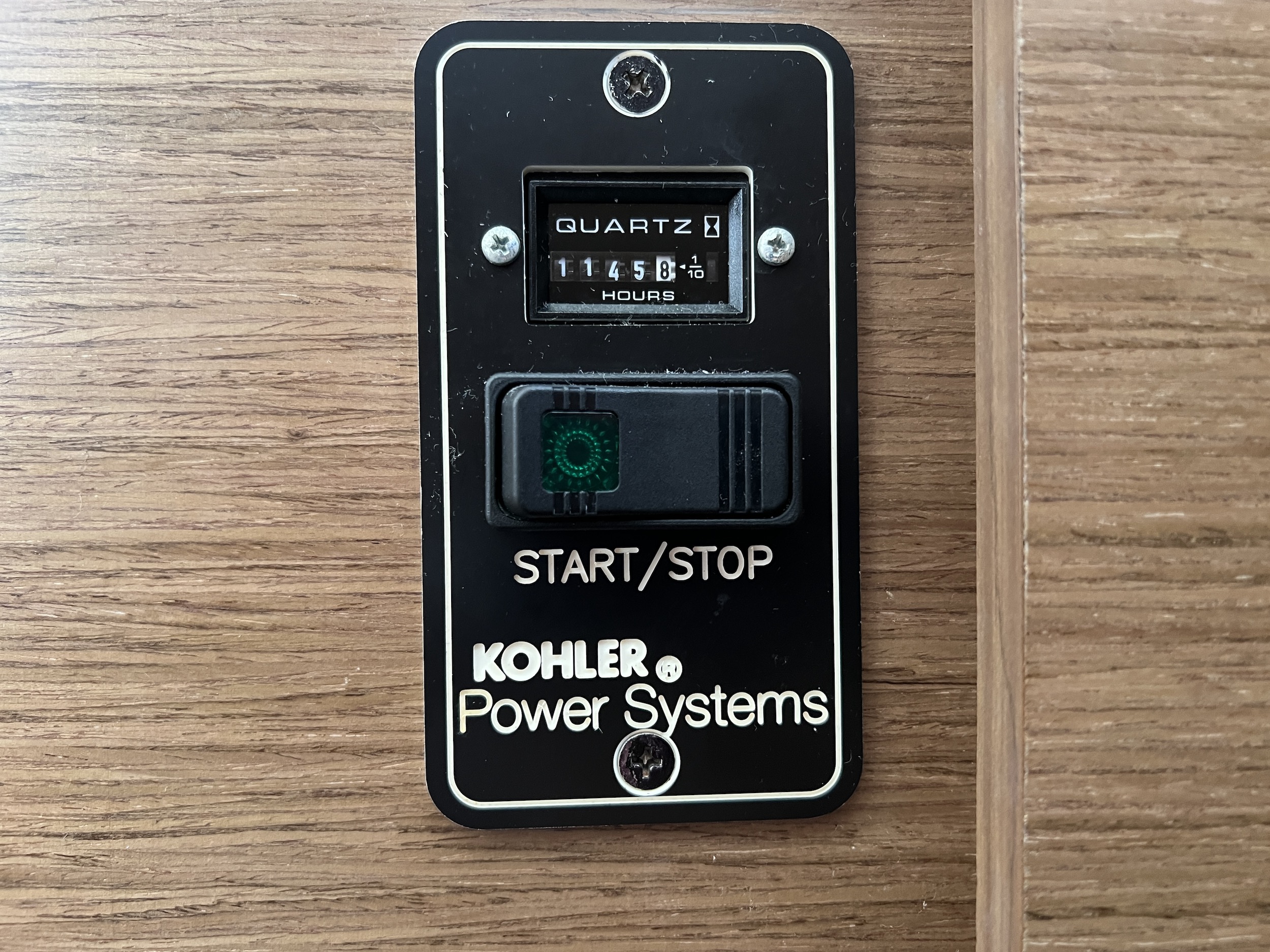

9.Generator panel

Location: Deck Layout
Description: Located under the electrical panel.
The left control panel controls the generator. The generator starts by pressing the button once and closes by pressing it once again.

WARNING: The generator is completely computerized so if any error comes up the generator will shut down by itself. Please contact the base for instructions on how to reset the generator and start it again.

10.Fuse box 12V

Location: Deck Layout
Description: Located in starboard aft cabin passageway cupboard.

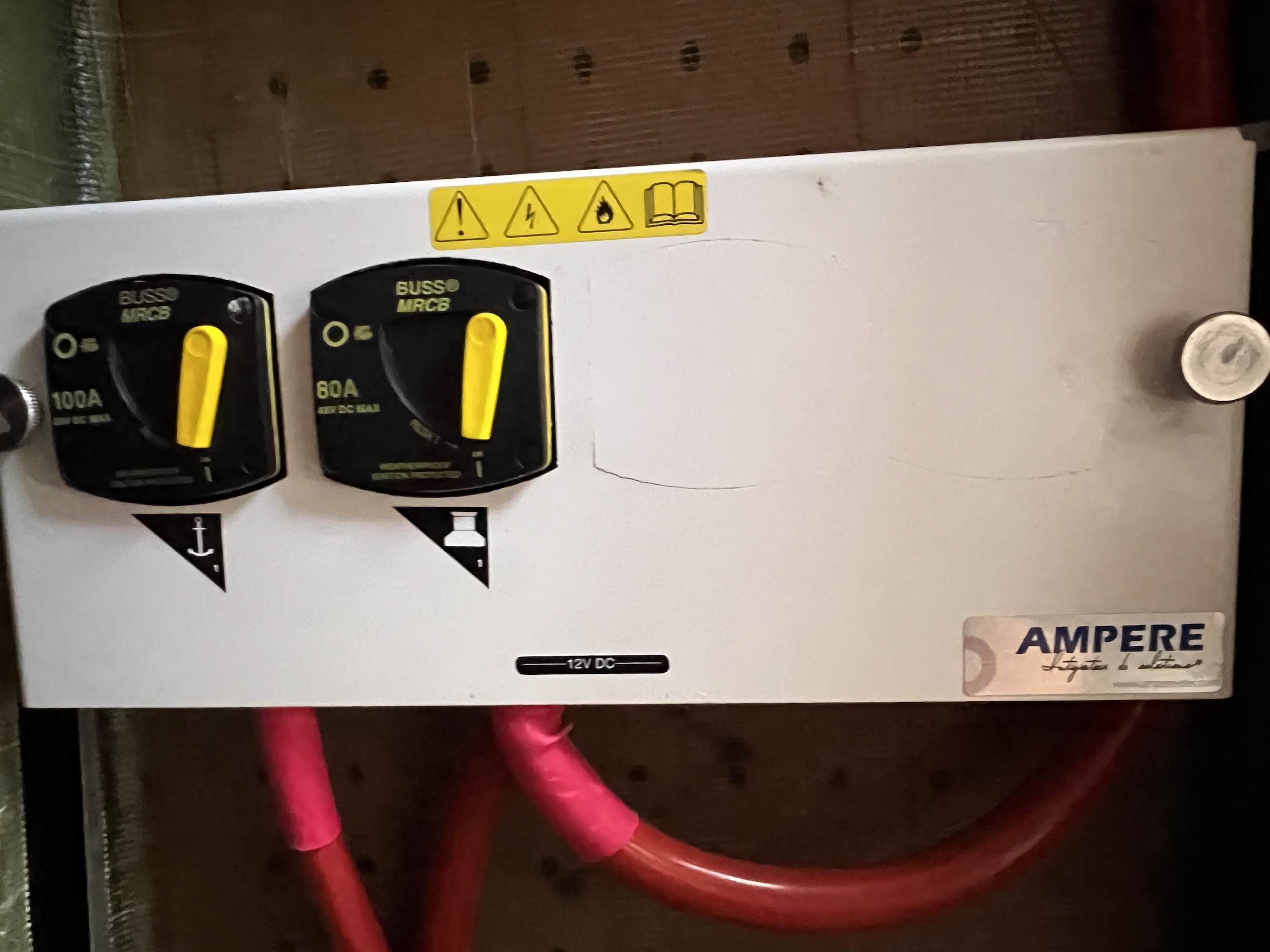

11.Windlass thermal fuse

Location: Deck Layout
Description: Located in the passageway cupboard on the starboard aft cabin.
If the anchor windlass stops responding to the controller commands check this fuse. If the fuse is off, put it back in the on position and wait 5 minutes for the anchor windlass motor to cool down.

WARNING: Operating the anchor windlass immediately after putting the fuse back in the on position may destroy the anchor windlass motor.

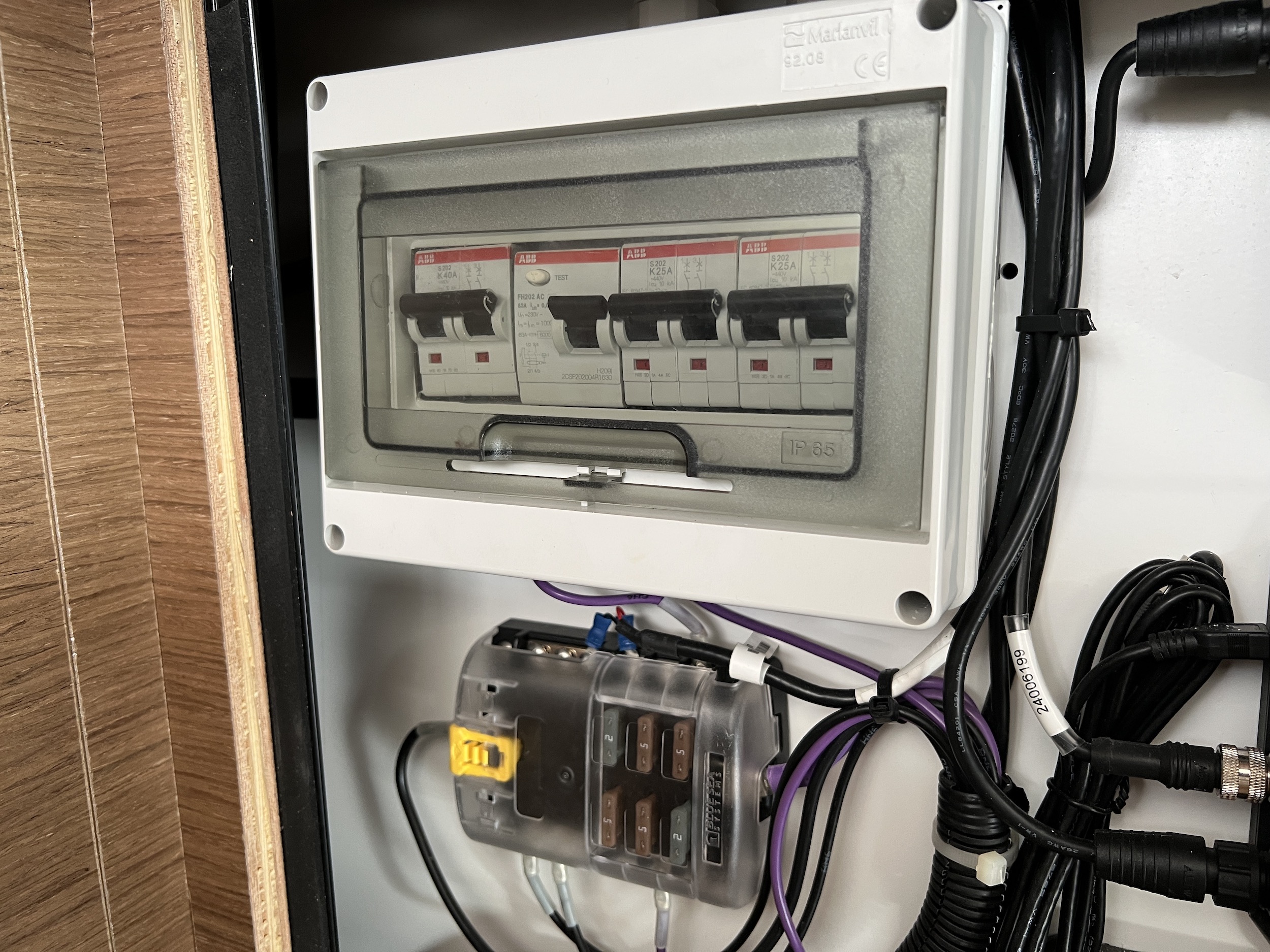

12.A/C & 220V AC interior fuses

Location: Deck Layout
Description: Located under the chart table.

WARNING: If there is no electricity in the AC sockets check here for any fuses that might be down. Always contact the base if you find one of the fuses off.

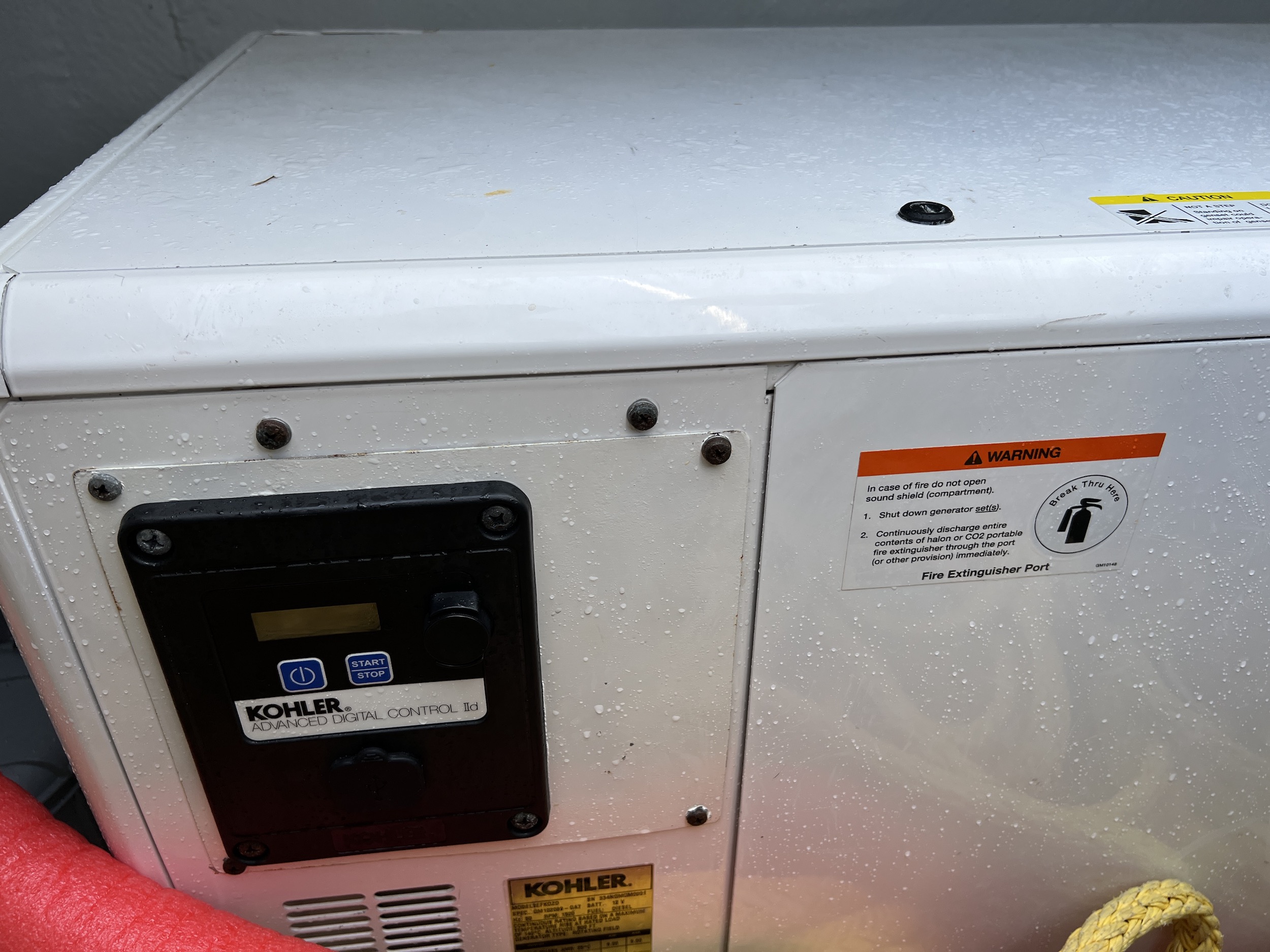

13.Generator

Location: Deck Layout
Description: Located in the starboard fore deck locker, next to the anchor windlass.

WARNING: This system should only be tampered with by a professional or by the skipper under the instructions of the base.

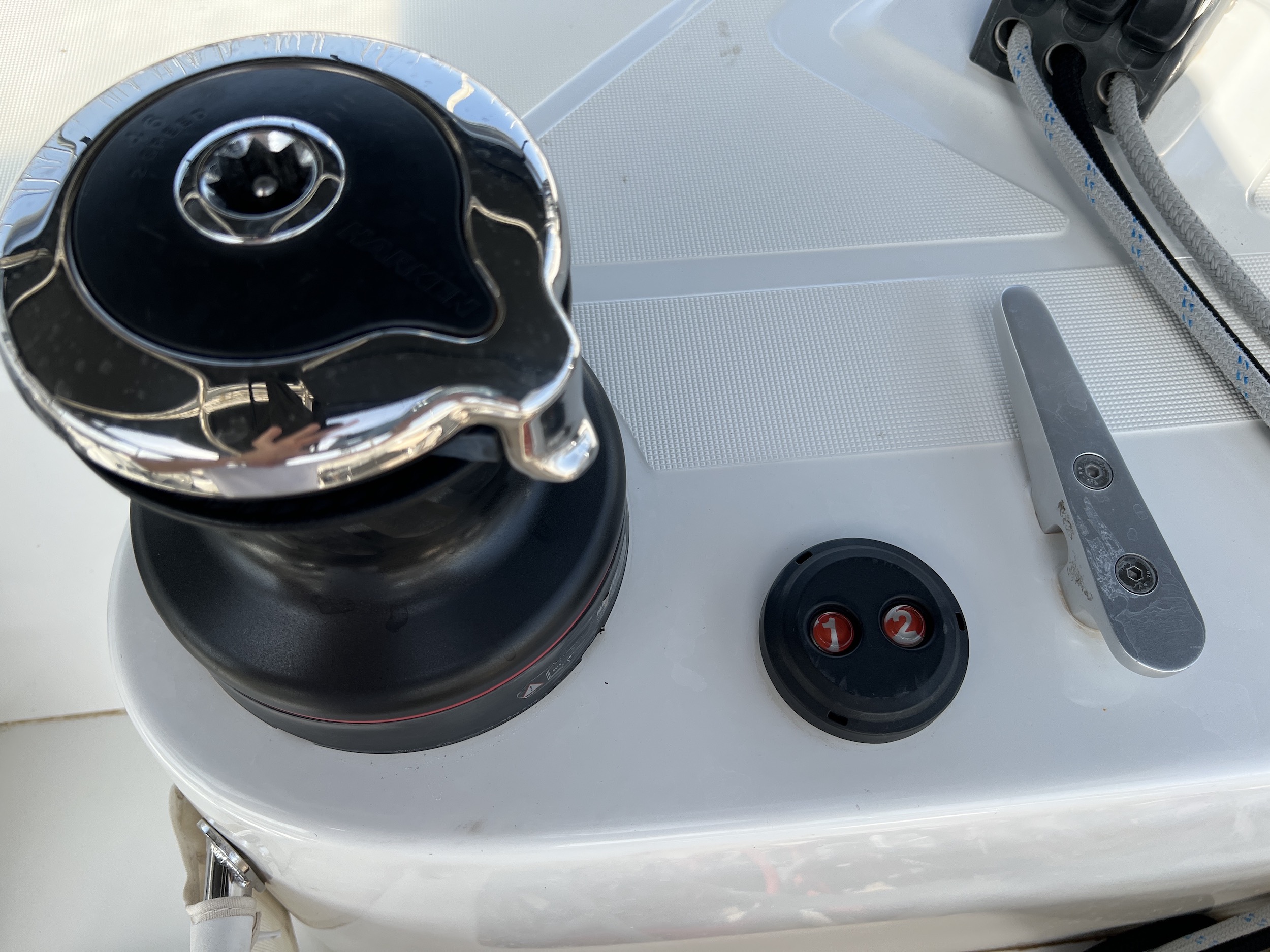

14.Electric Winch

Location: Bridge Layout
Description: Located in the port side of the flybridge. Operated by the buttons under it.

WARNING: When operating the electric winch, always make sure that there are no fixed lines that may be pulled while pulling a line with the winch. Any fixed lines that may get pulled through the operation of the winch may snap and may result in serious damage to people and/or the mast or sails.

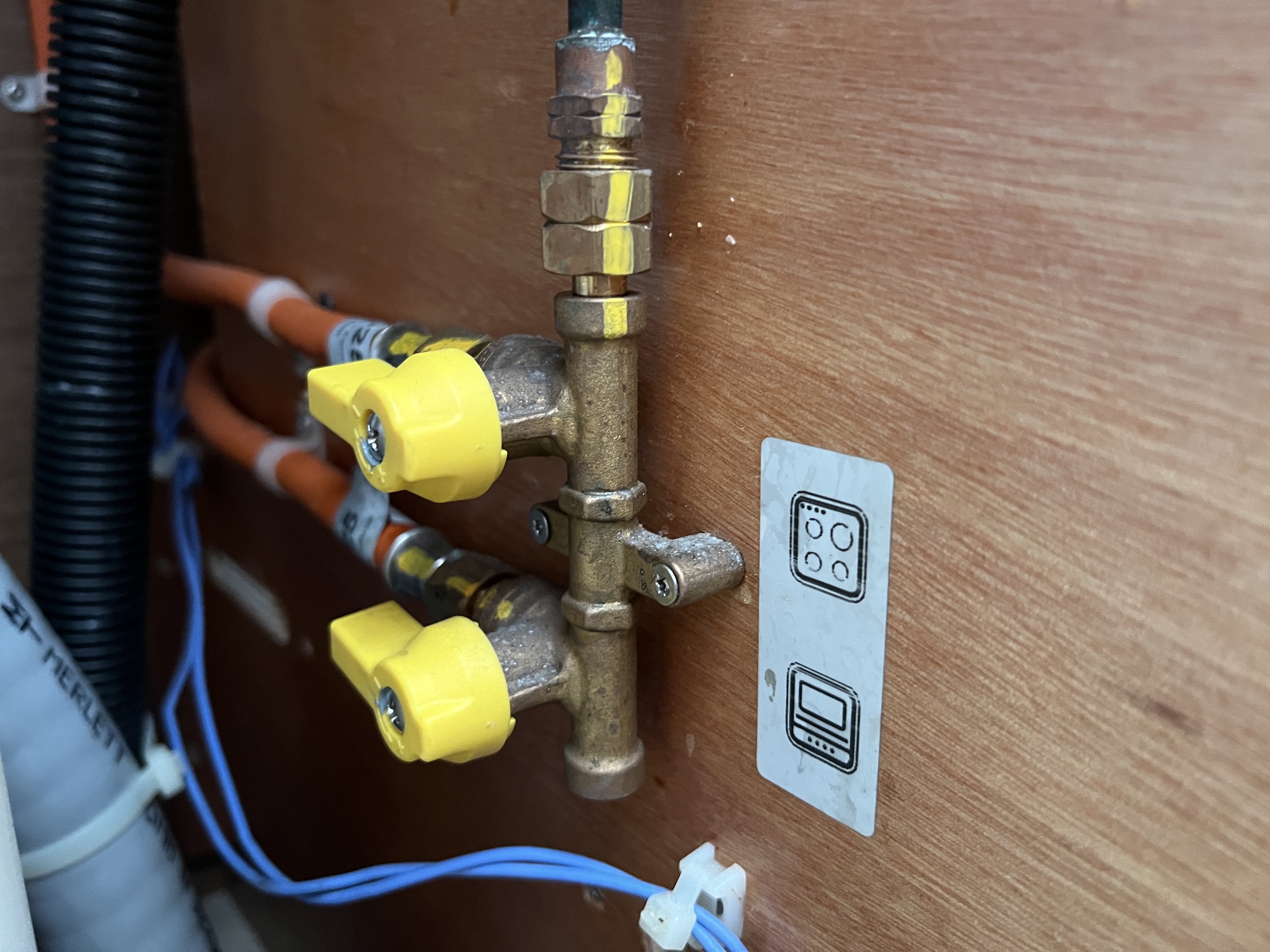

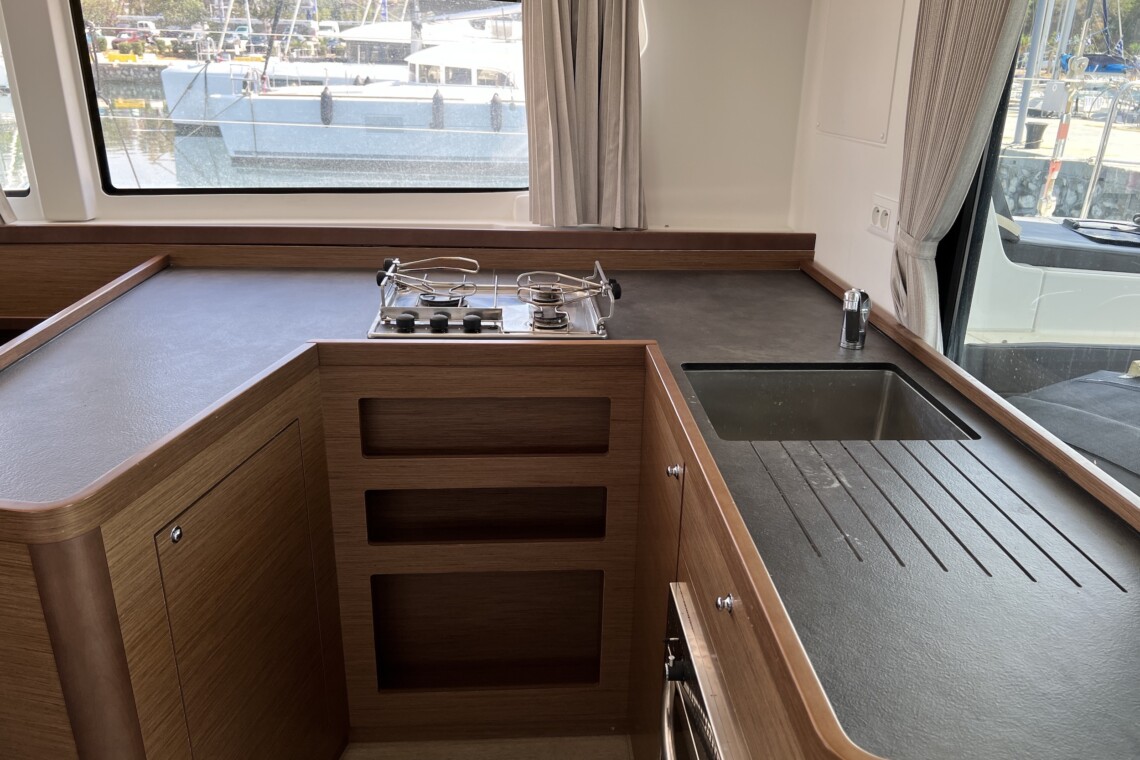

15.Galley Gas system

Location: Deck Layout
Description: Located in the cupboard under the galley.
All valve handles are on the open position when parallel to the pipe and closed when vertical.

WARNING: Always close the gas valves when not in use or when replacing the gas bottles. Never leave unattended when operating the stove and oven.

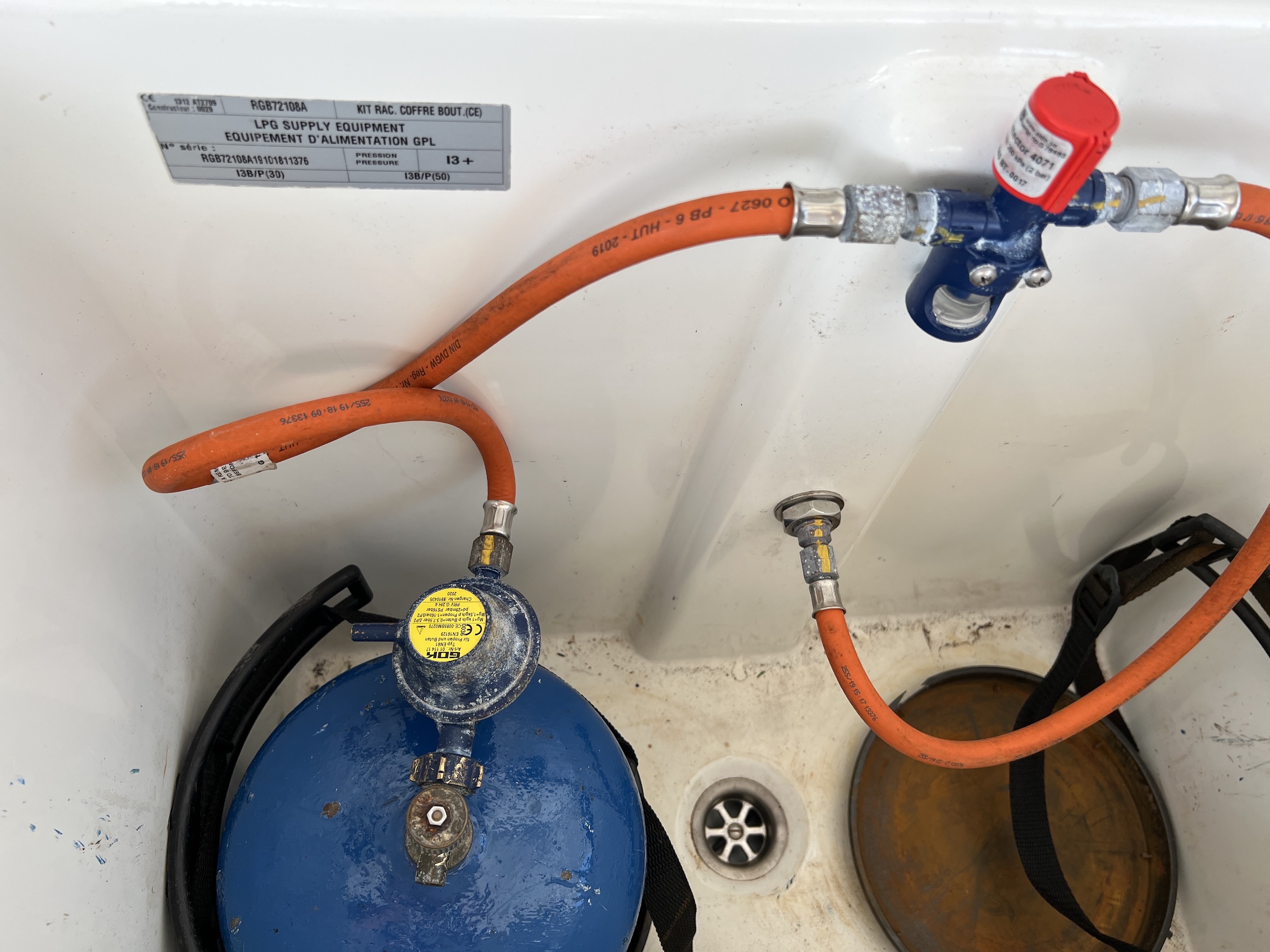

16.Deck Gas system

Location: Deck Layout
Description: Located in the locker under the exterior table.

WARNING: Always check for gas leaks when replacing the bottle. Don’t smoke or use an open flame close to the bottles.
Risk of explosion, serious injury and/or death.
