Accommodation
Registered protocol: max 12 pax (people)
Accommodation in:

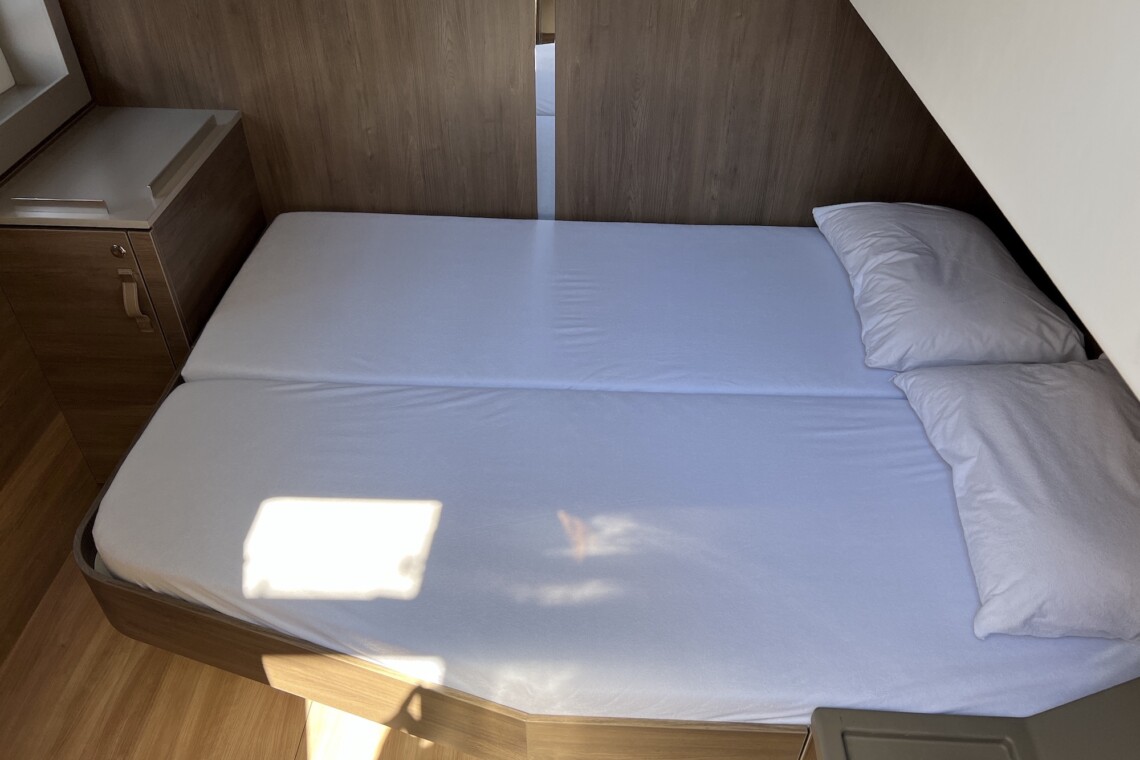

4 double cabins (4×2 pax) 8 pax total

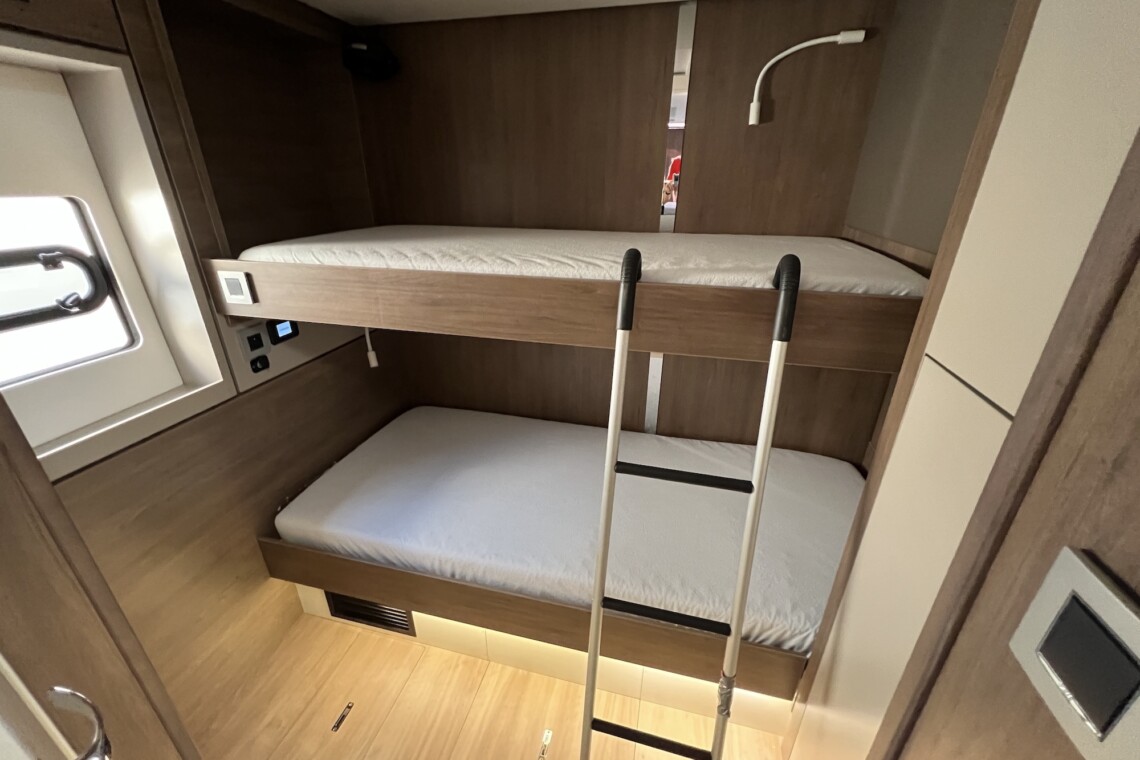

2 bunk cabin (2×2 pax) 4 pax total
2 skipper cabins (1×1 pax) 2 pax total
Specs I
Length overall: 14.86m
Length at waterline: 14.28m
Beam: 7.88m
Draft: 1.35m
Displacement: 22.0t
Engines: 2x57hp diesel Yanmar
Specs II
Fuel capacity: 1000l
Water capacity: 1000l
Mainsail area: 81.00sq.m
Genoa area: 47sq.m
Total sail area: 128sq.m
EU Homologation: Cat. A 14 per

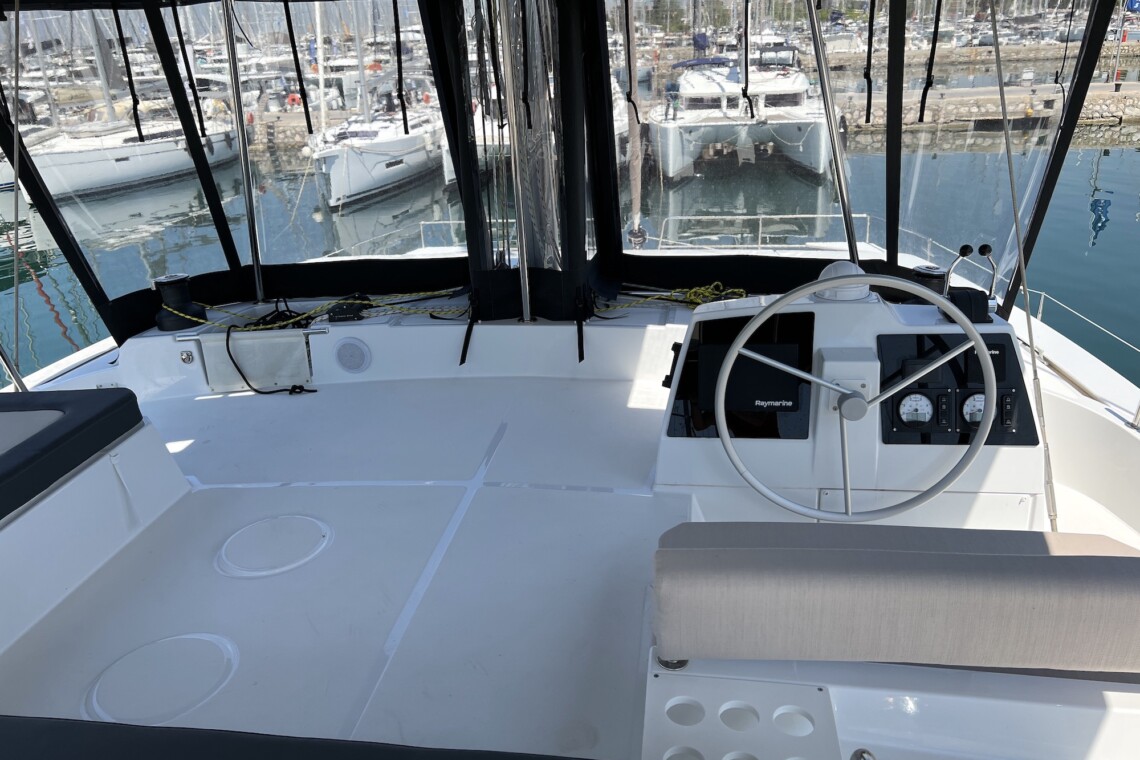

Bridge Layout

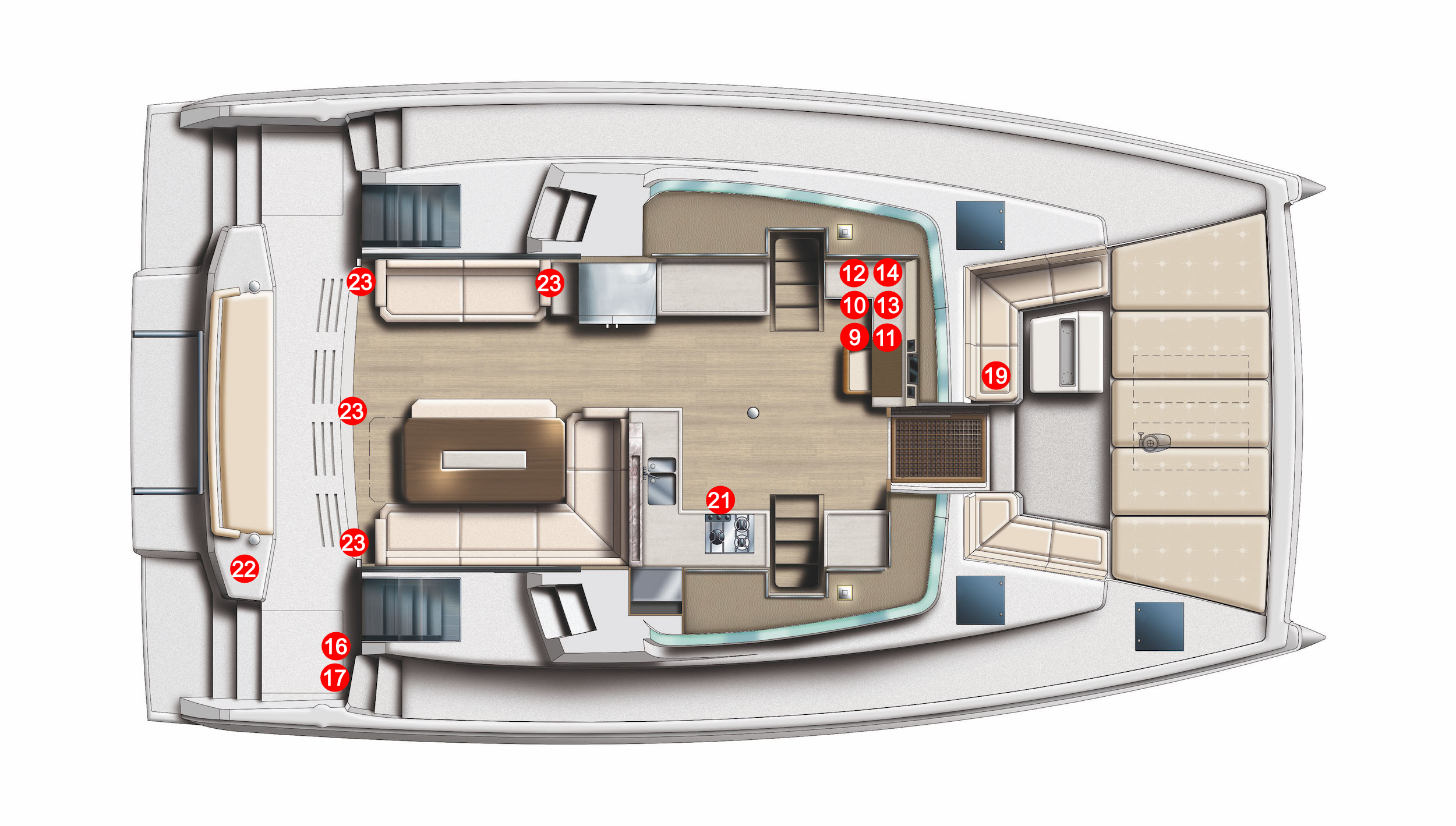

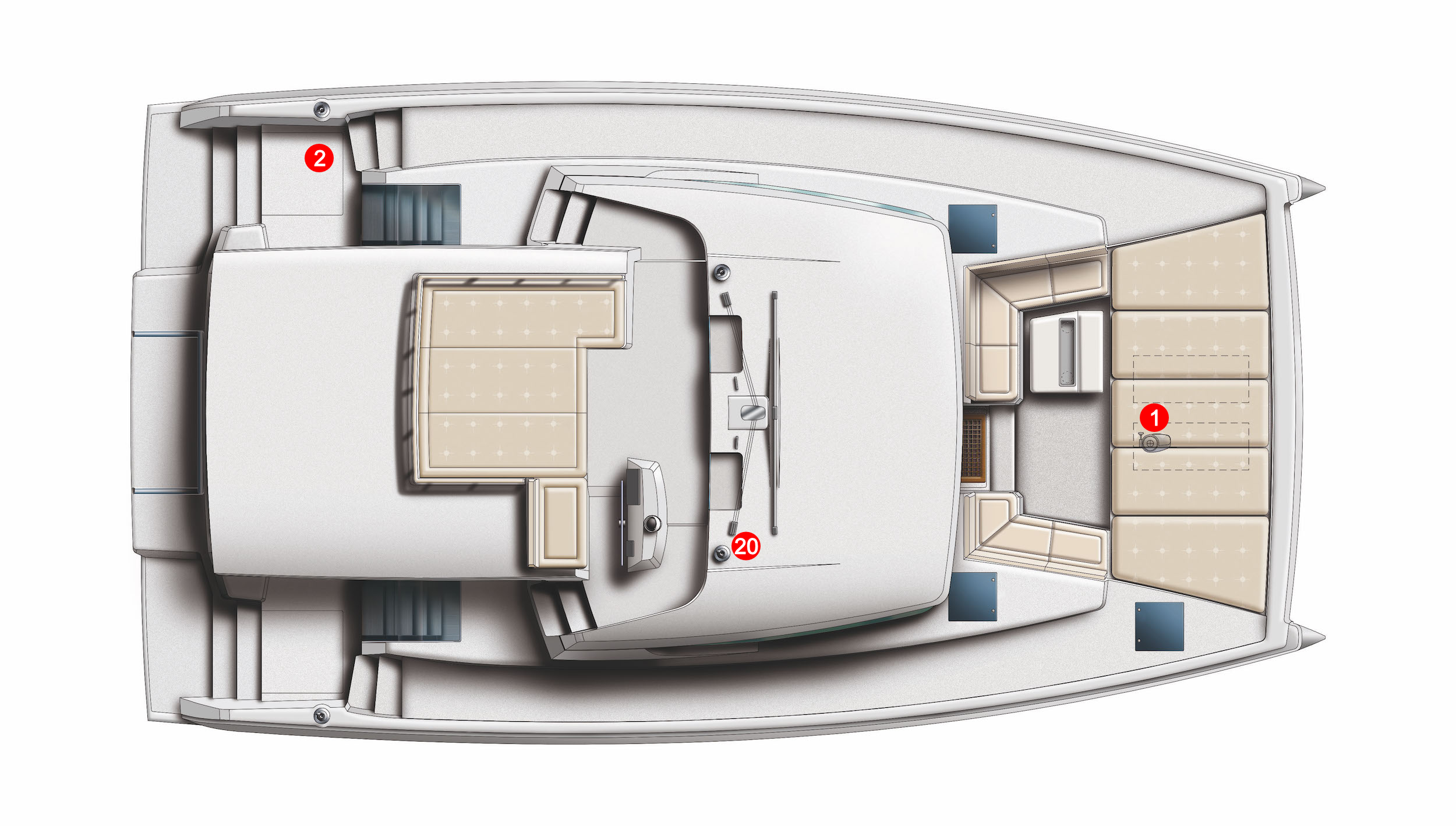

Deck Layout

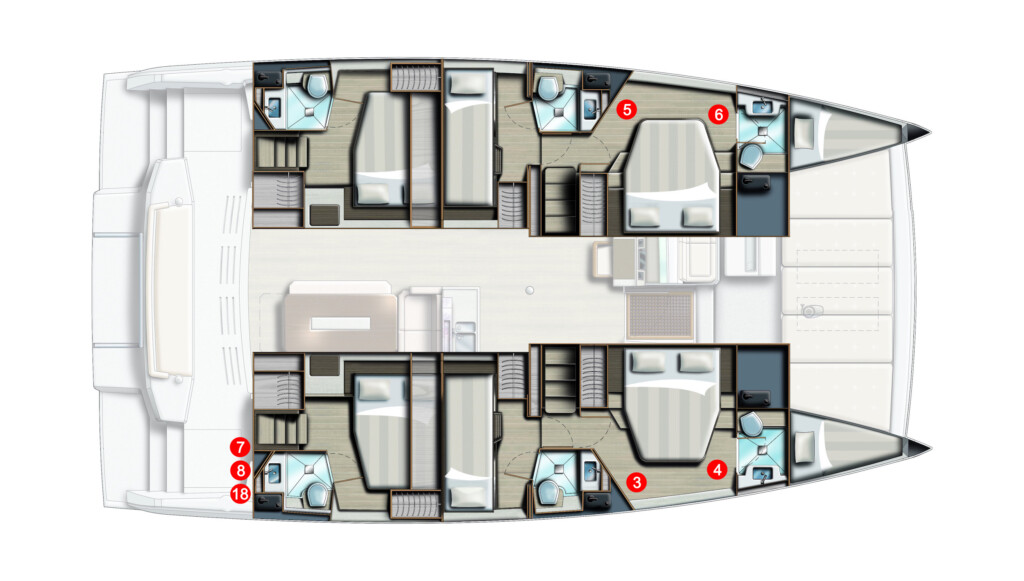

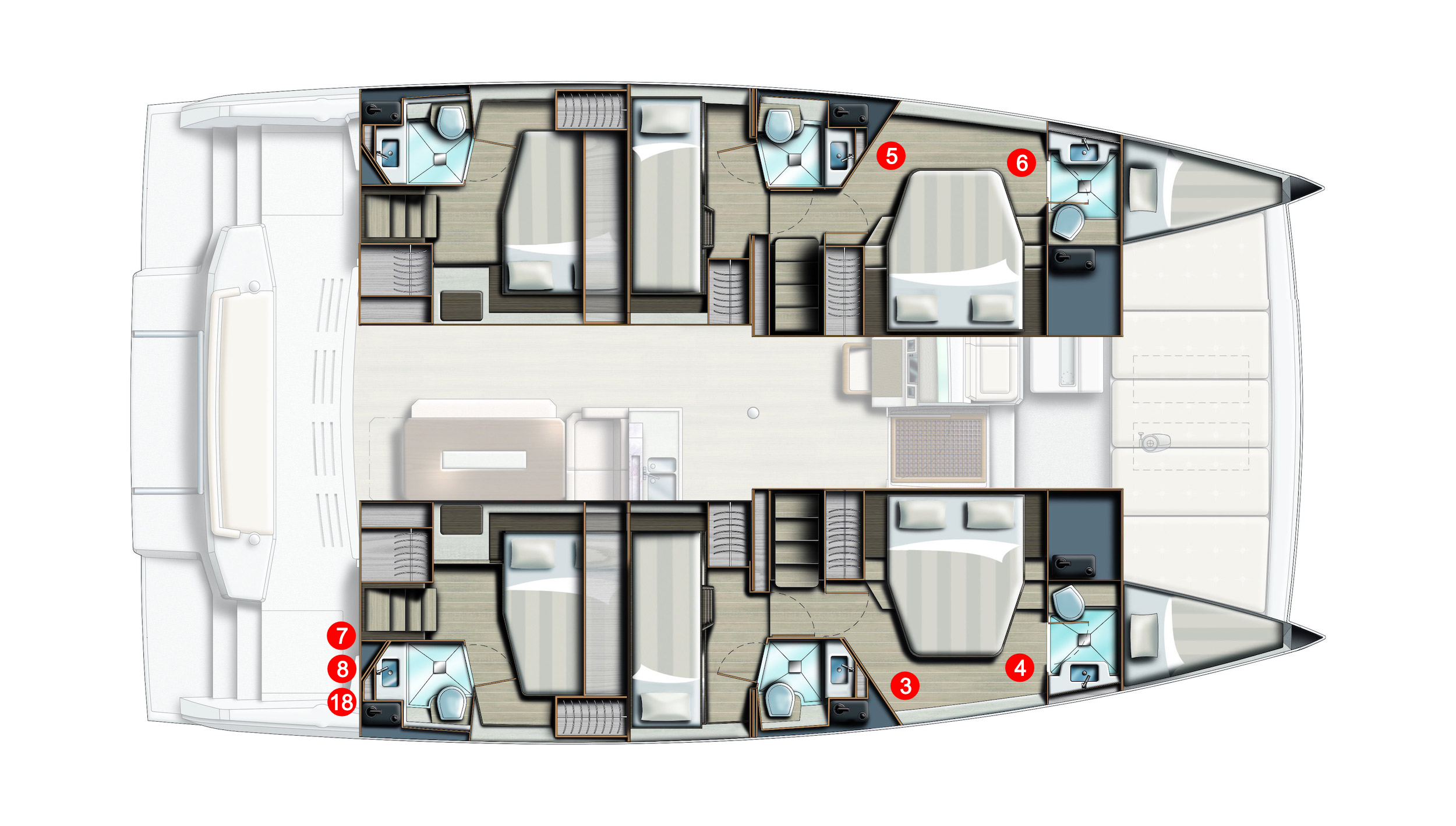

Cabins Layout

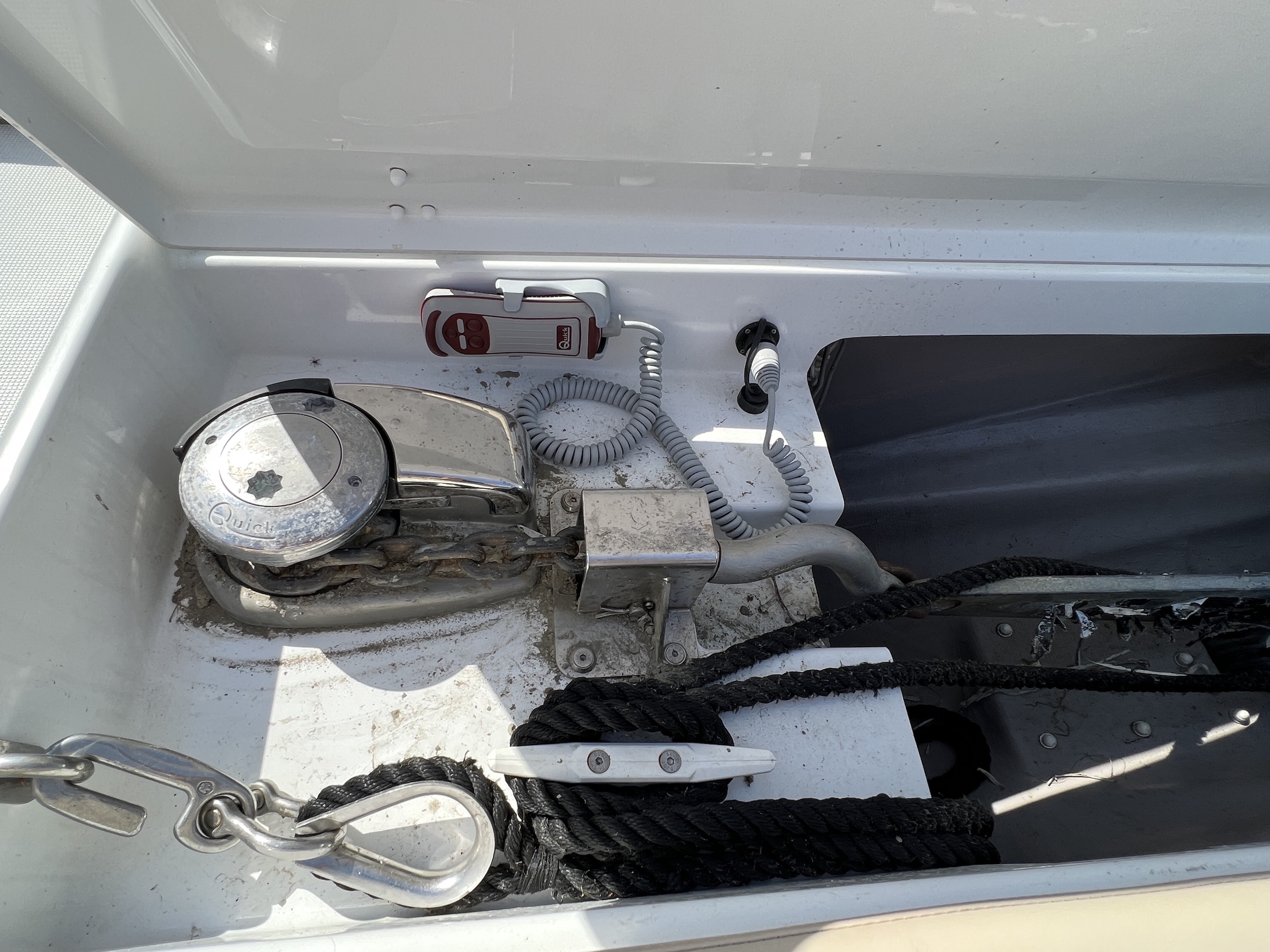

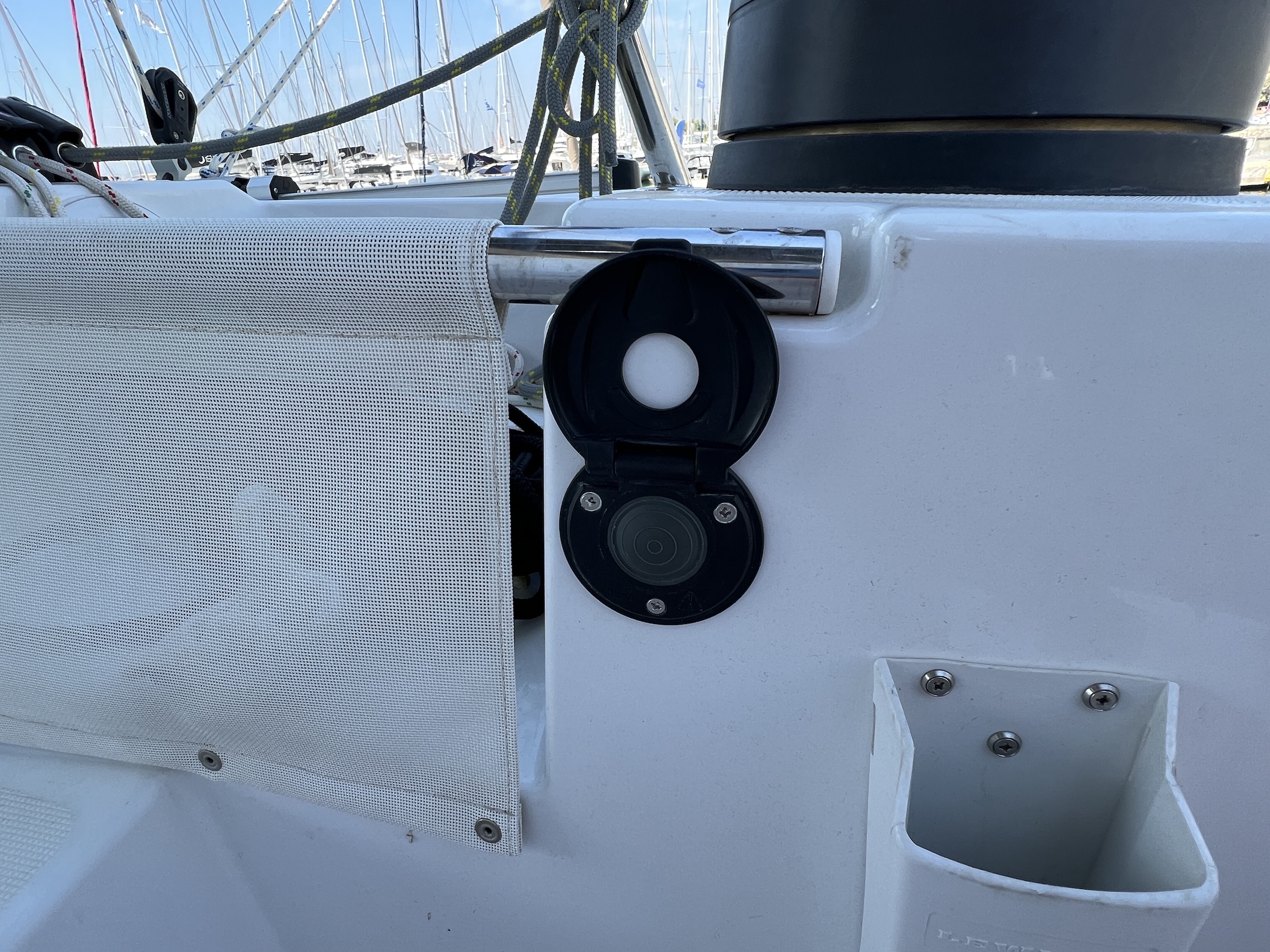

1.Windlass
Location: Deck Layout
Description: Located at the fore locker. Controlled by the windlass controller next to it. Used to drop and pull up the anchor.
WARNING: This system should only be tampered with by a professional or by the skipper under the instructions of the base.

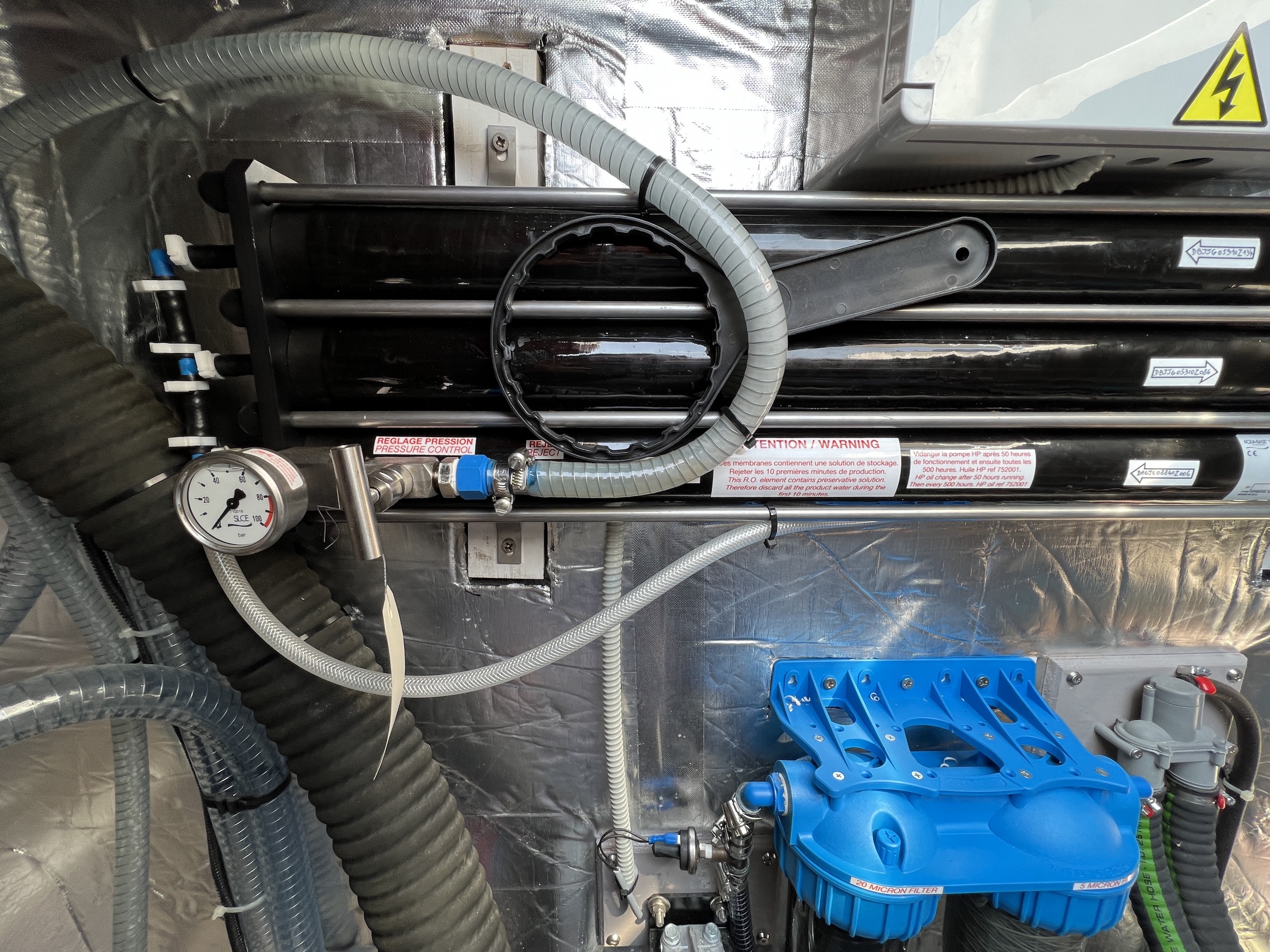

2.Watermaker
Location: Deck Layout
Description: Located at the port engine room. The control is located on the chart table.
WARNING: This system should only be tampered with by a professional or by the skipper under the instructions of the base.

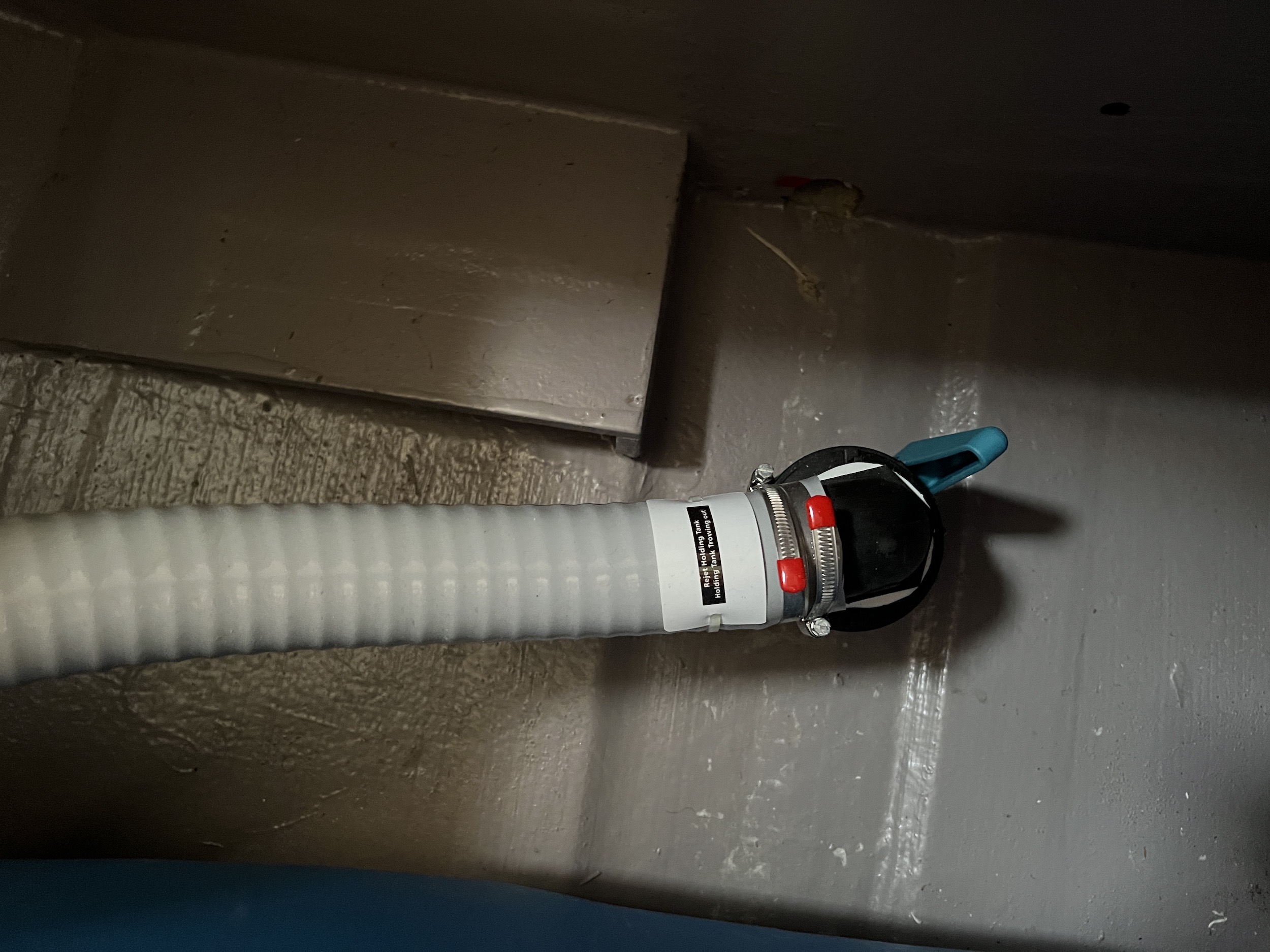

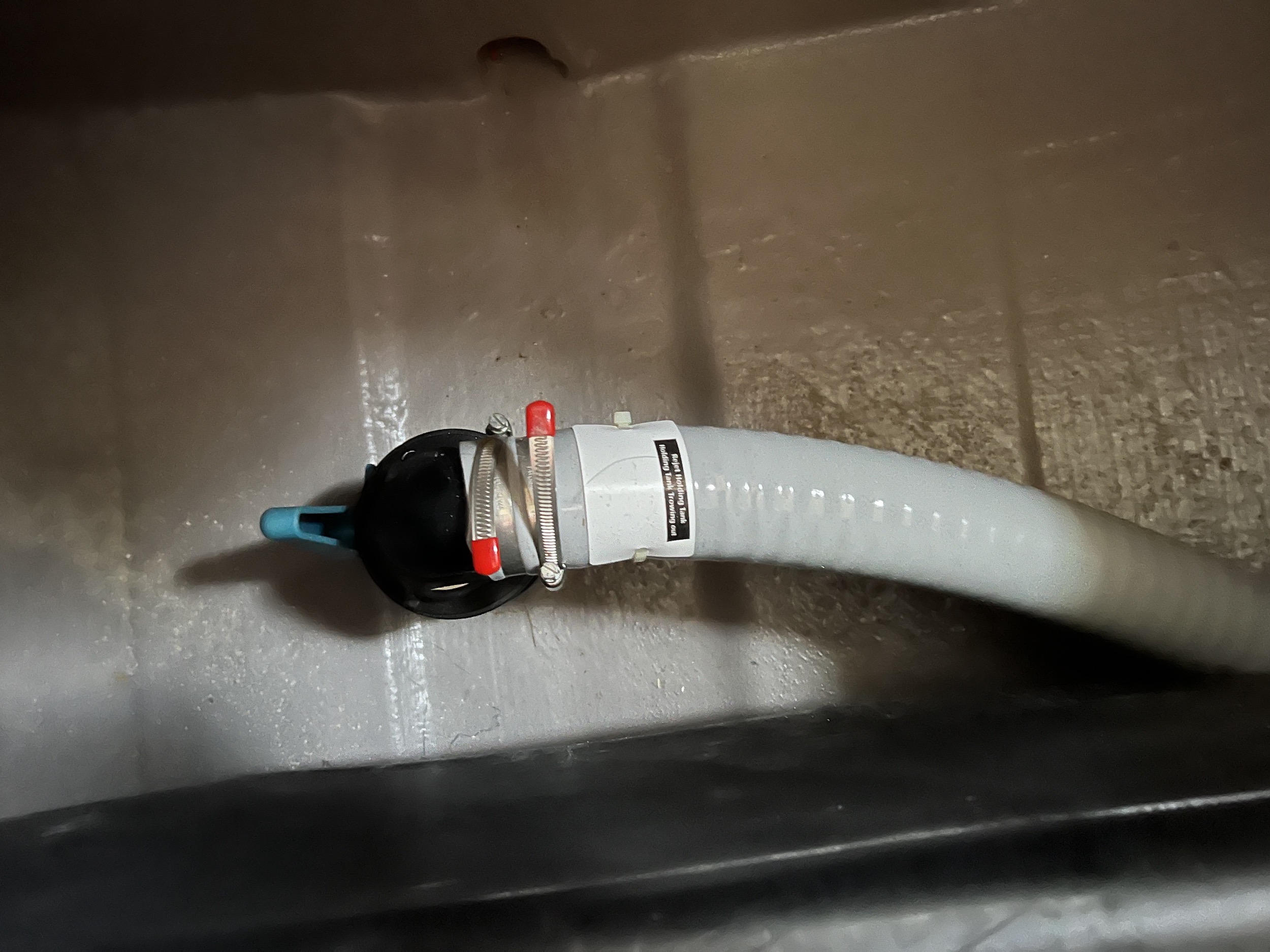

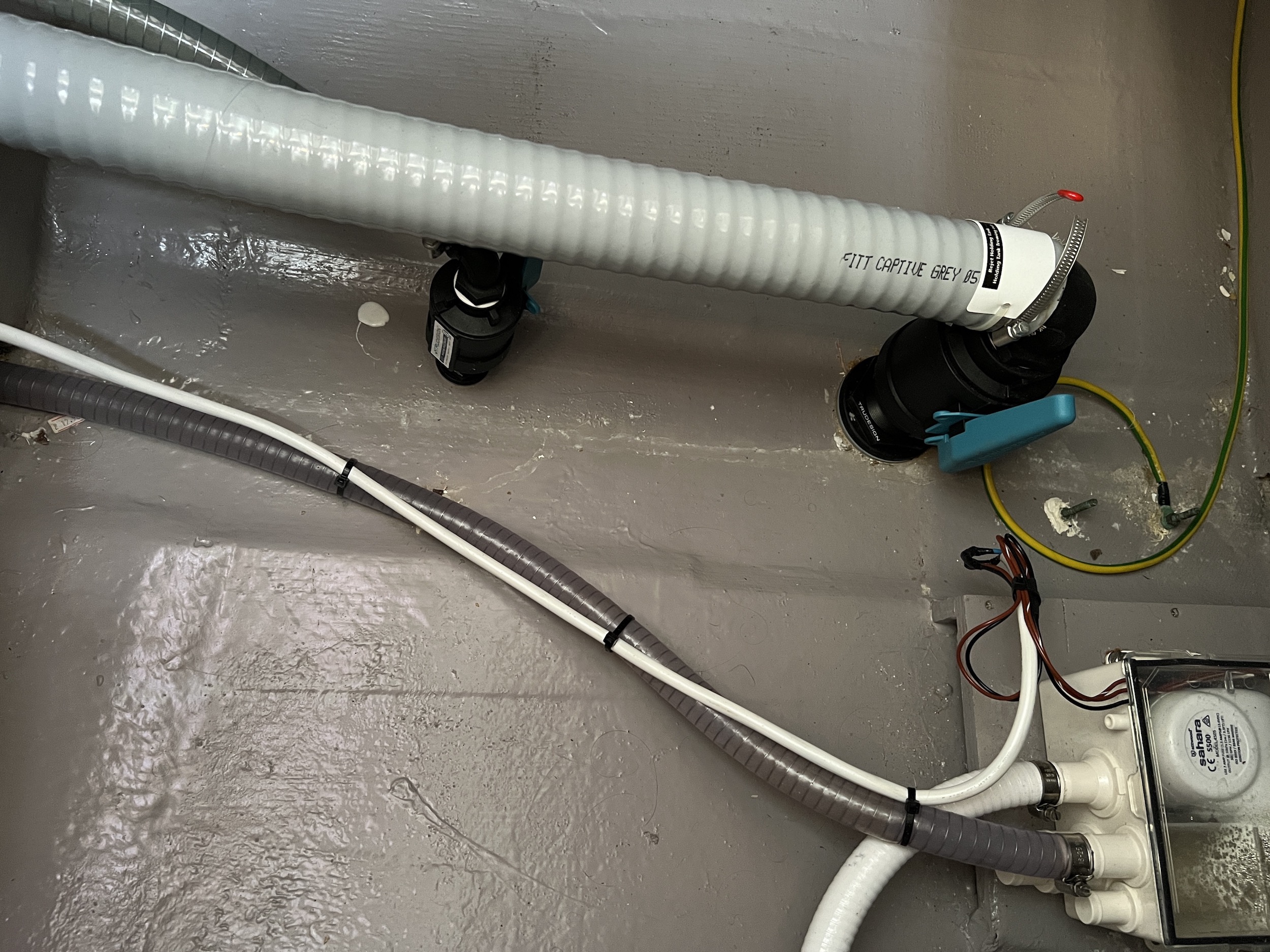

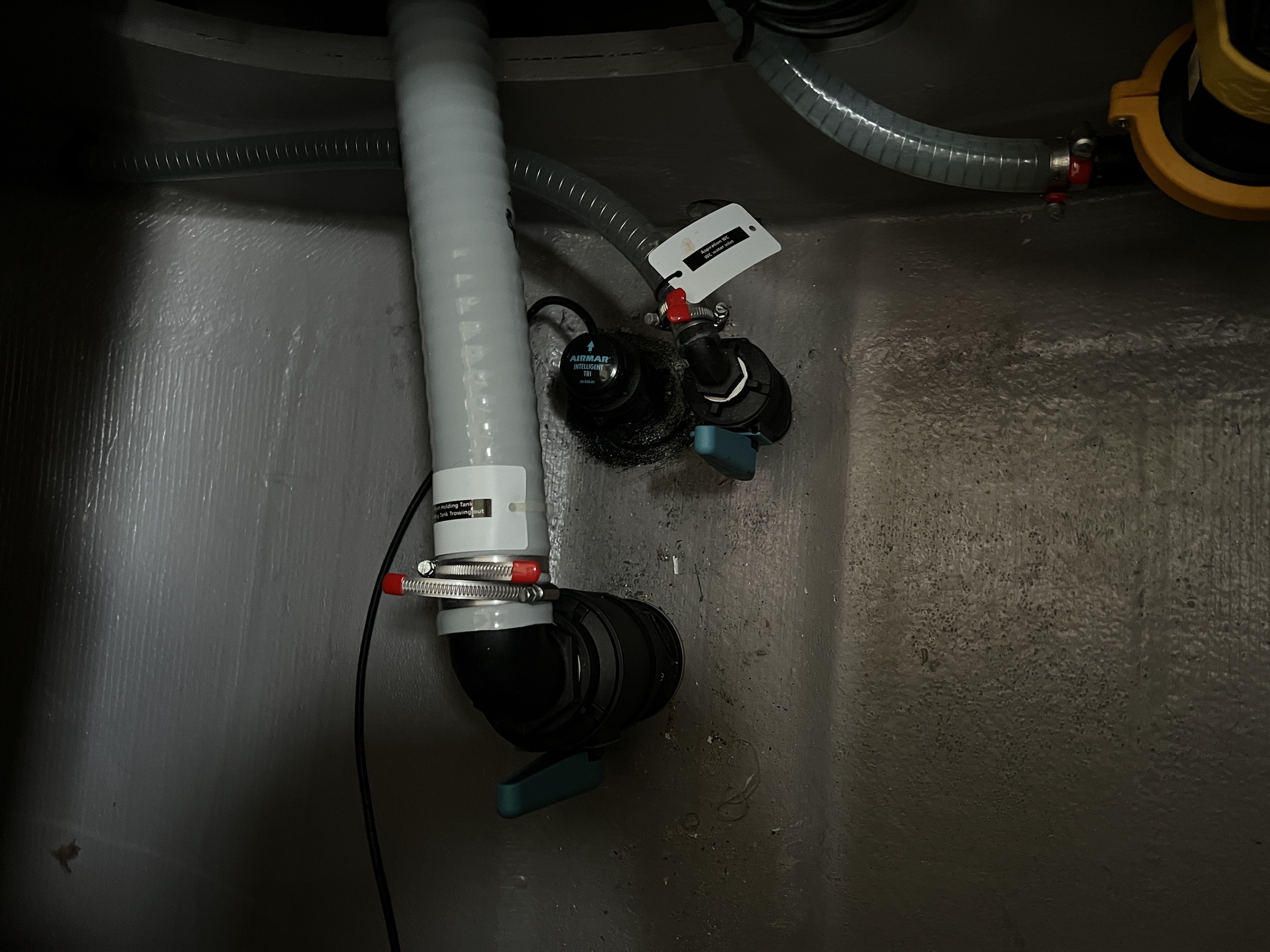

3.Waste tank valve
Location: Cabin Layout
Description: Located in the starboard fore cabin under the aft floor panel. All valve handles are on the open position when parallel to the pipe and closed when vertical.
WARNING: All waste tank valves must remain open at all times with the exception of ports and closed bays. Keeping the waste valves closed for extended toilet usage times may cause waste tank overflow and/or tank explosion.
4.Waste tank valve
Location: Cabin Layout
Description: Located in the starboard fore cabin under the fore floor panel. All valve handles are on the open position when parallel to the pipe and closed when vertical.
WARNING: All waste tank valves must remain open at all times with the exception of ports and closed bays. Keeping the waste valves closed for extended toilet usage times may cause waste tank overflow and/or tank explosion.
5.Waste tank valve
Location: Cabin Layout
Description: Located in the port fore cabin under the aft floor panel. All valve handles are on the open position when parallel to the pipe and closed when vertical.
WARNING: All waste tank valves must remain open at all times with the exception of ports and closed bays. Keeping the waste valves closed for extended toilet usage times may cause waste tank overflow and/or tank explosion.
6.Waste tank valve
Location: Cabin Layout
Description: Located in the port fore cabin under the fore floor panel. All valve handles are on the open position when parallel to the pipe and closed when vertical.
WARNING: All waste tank valves must remain open at all times with the exception of ports and closed bays. Keeping the waste valves closed for extended toilet usage times may cause waste tank overflow and/or tank explosion.
7.Solar panels MPPT
Location: Deck Layout
Description: Located under the stairs of the starboard aft cabin. This is the charger regulator of the solar panels.
WARNING: This system should only be tampered with by a professional or by the skipper under the instructions of the base.
Risk of electrical shock and/or death.

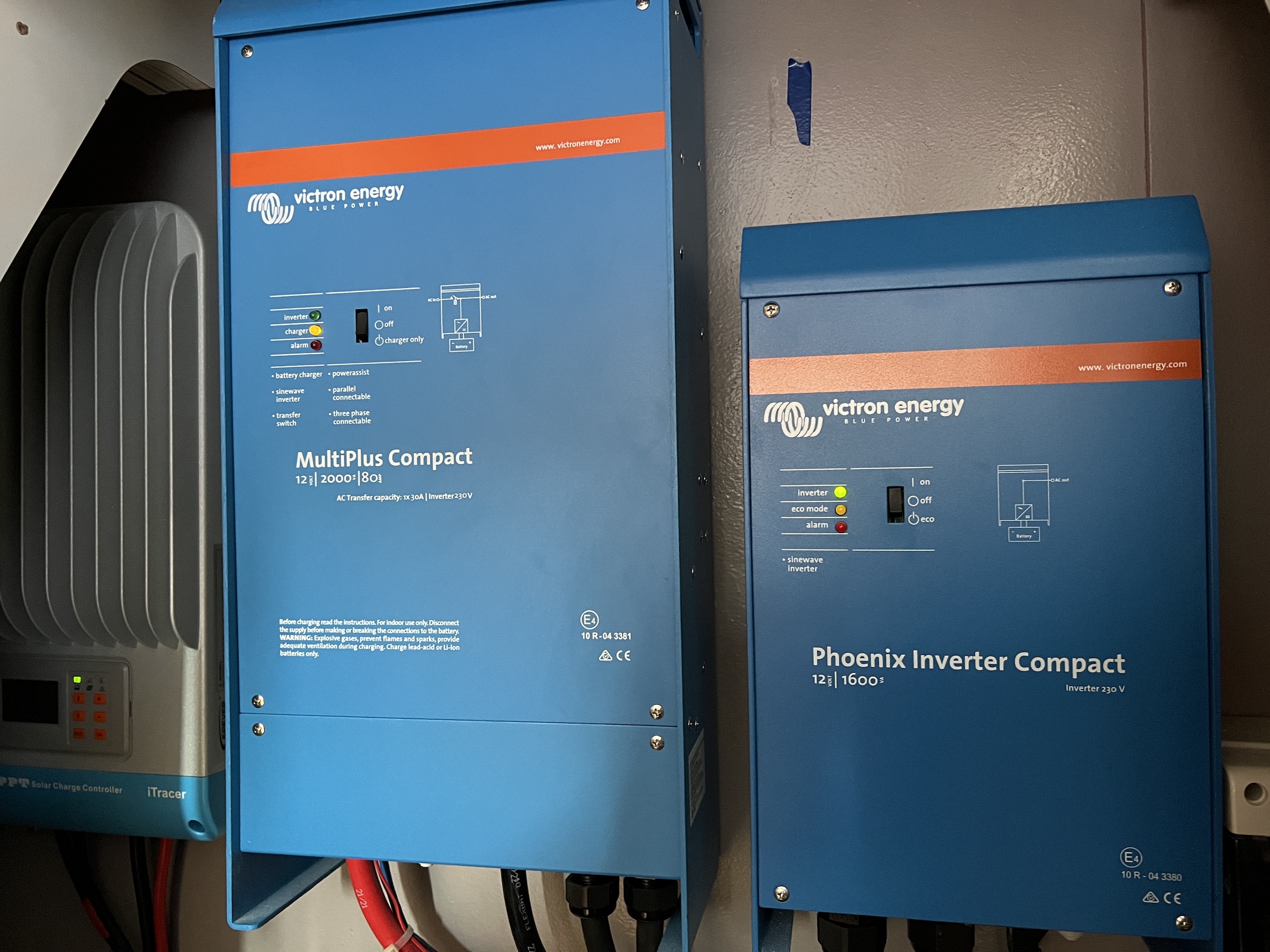

8.Inverter
Location: Deck Layout
Description: Located under the stairs of the starboard aft cabin. These are the automatic inverters of the fridge and the A/C sockets.
WARNING: This system should only be tampered with by a professional or by the skipper under the instructions of the base.
Risk of electrical shock and/or death.

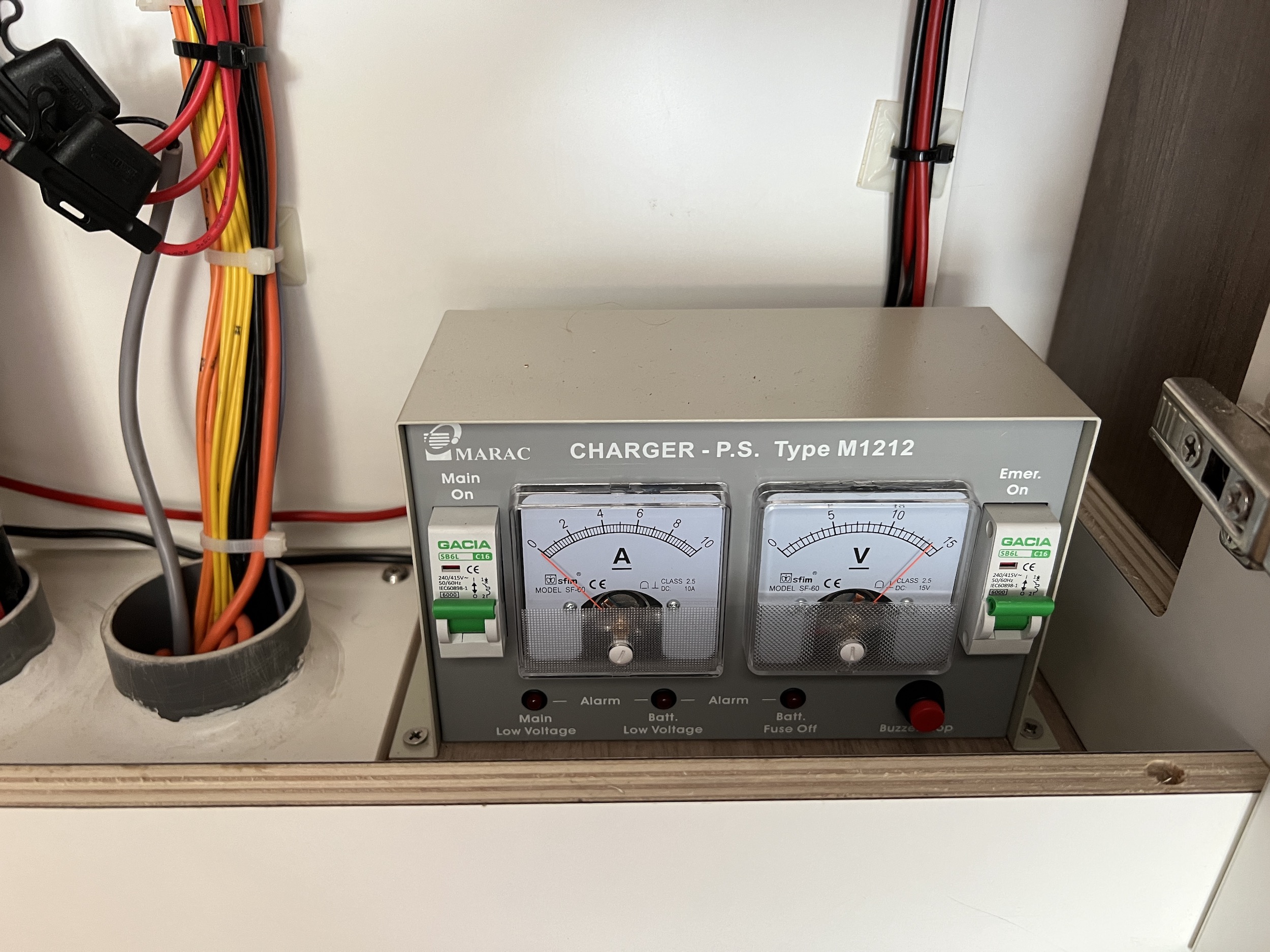

9.VHF current control
Location: Deck Layout
Description: Located under the chart table. Check the fuses on this system if you are getting an alarm from the VHF.

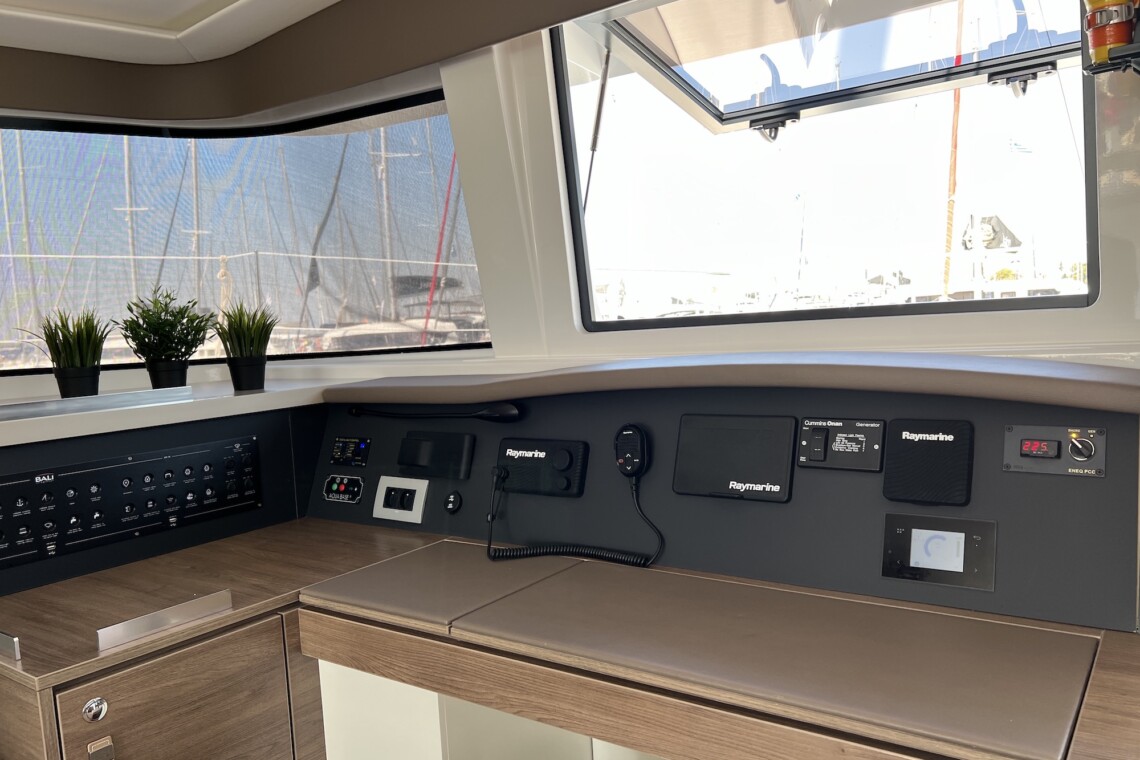

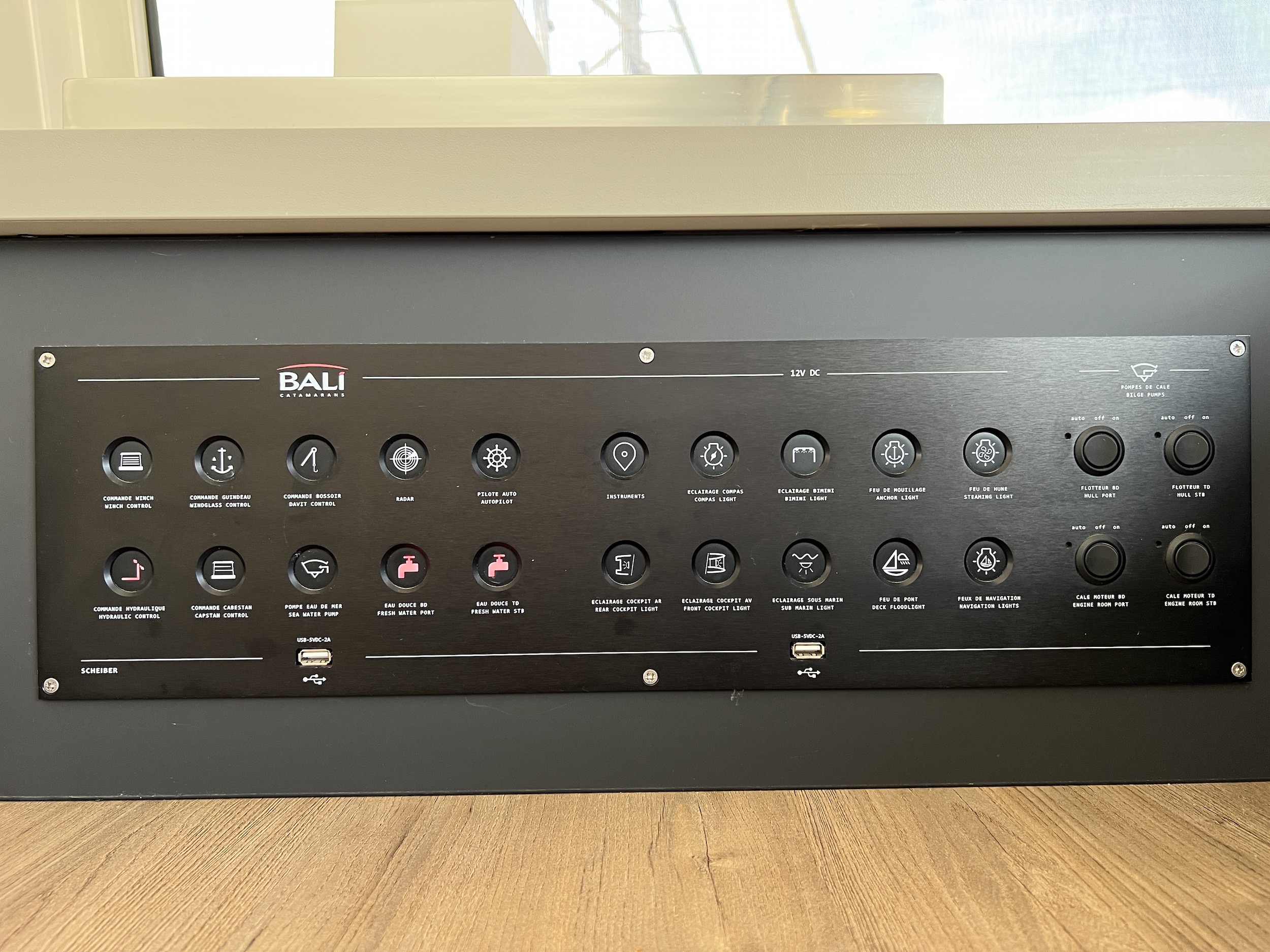

10.Main panel
Location: Deck Layout
Description: Located on the chart table.
Used to open and close the 12V current on the respective systems. The right hand side switches are 3-way, the right position operates the respective bilge pumps manually, the central position is the off position and the left position is the automatic floater position which allows the bilge pumps to operate automatically when the water level in the bilge is high enough.

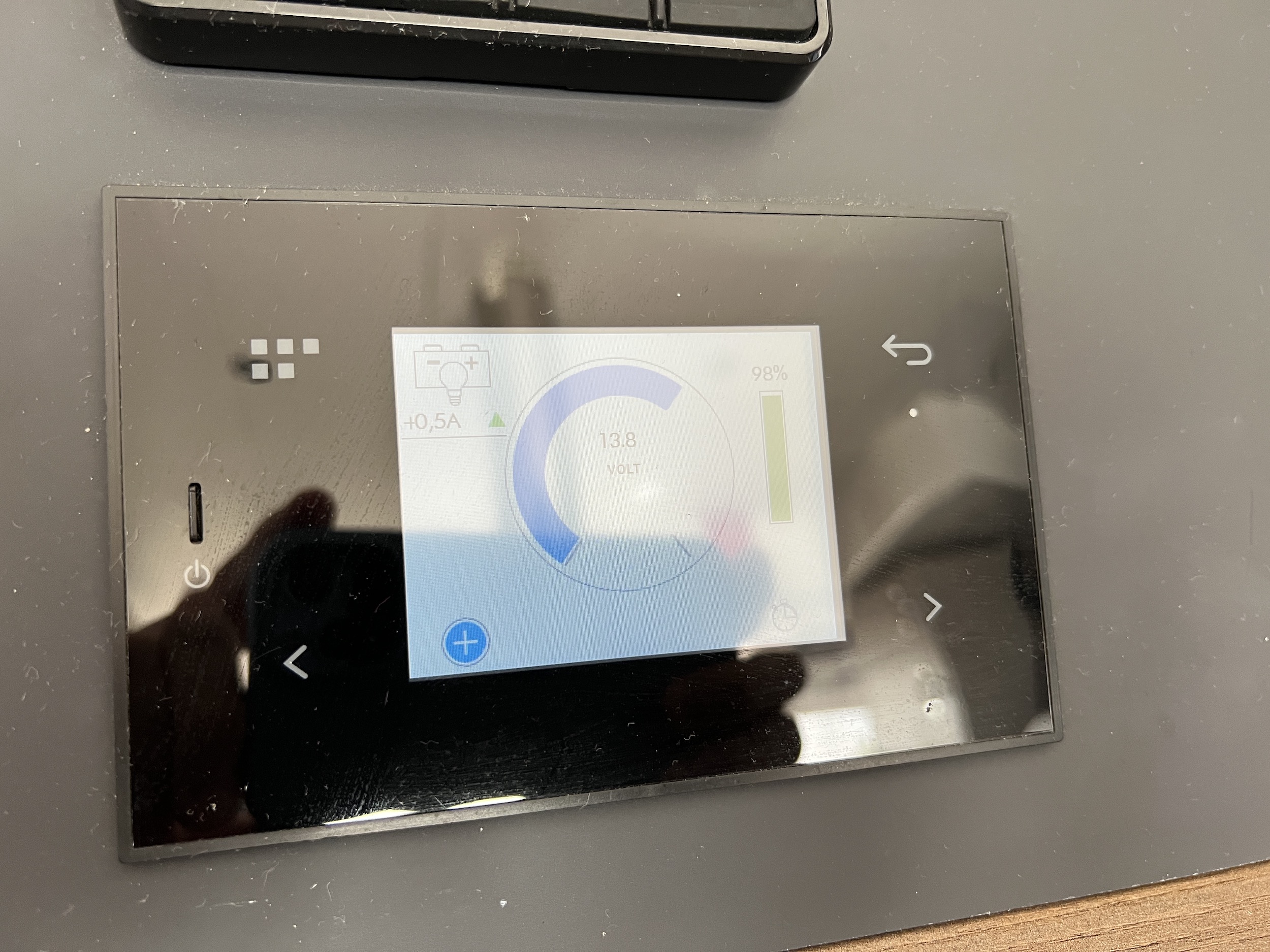

11.Tank & Power display
Location: Deck Layout
Description: Located on the chart table.
The display operates on a touch screen and displays diesel, fresh water, black water and battery voltage levels.
WARNING: Waste tank levels should always be checked by taking into account the position of the respective waste valves. If the waste valve is open and the display indicates that the corresponding tank is filling up/full, it should be assumed that there is a blockage in the tank.
The right hand side display indicates the presence of 220V current and consumption. The left position opens the main switch to the shore power supply, the center position is off and the right position opens the main switch to the generator power supply.

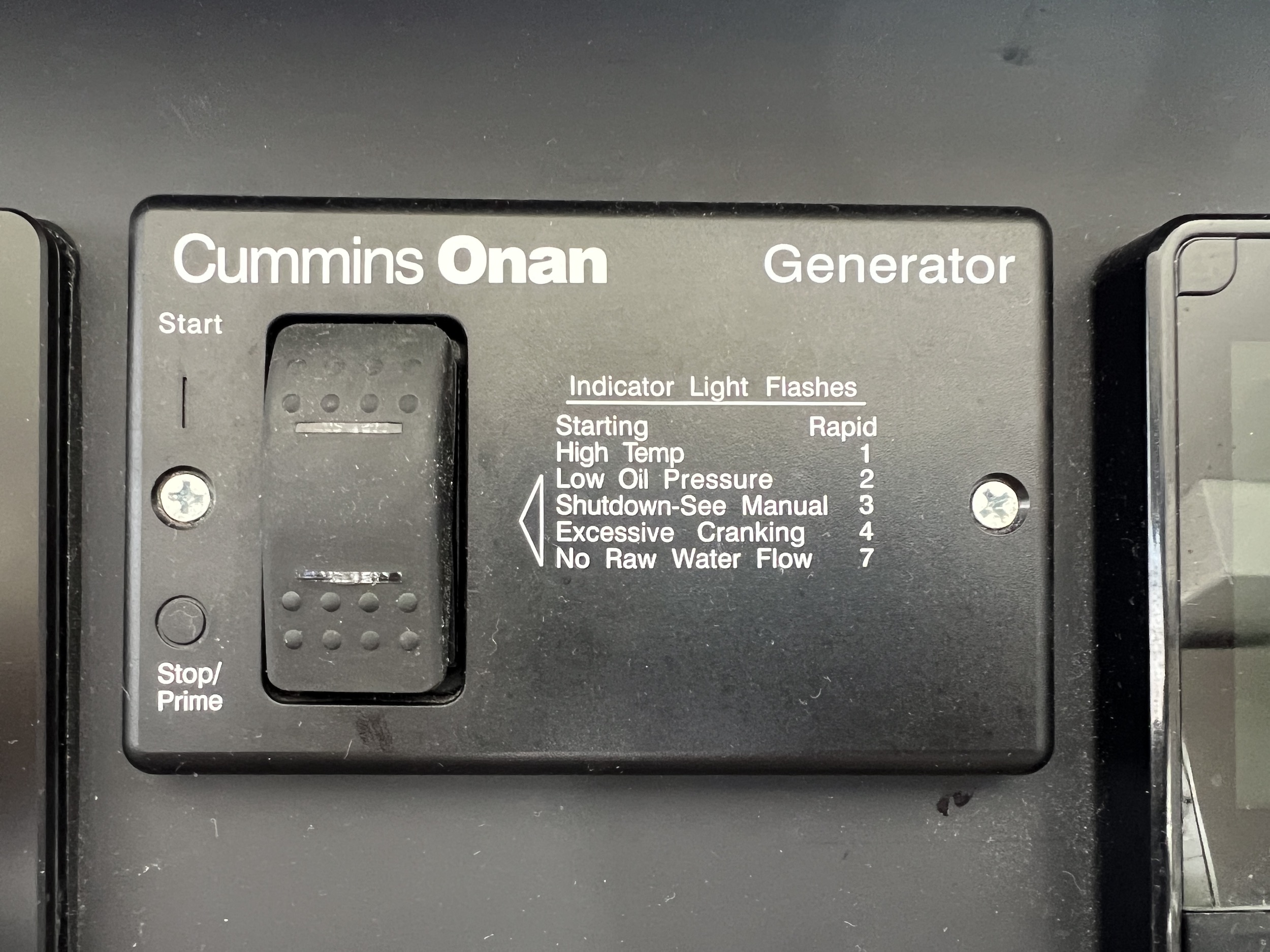

12.Generator panel
Location: Deck Layout
Description: Located on the chart table.
This panel controls the generator. The generator starts by keeping the button pressed on its top position and closes by keeping the button pressed on its bottom position.
WARNING: When starting the generator, keep pressing the button until you hear the generator start, the orange flashing light stops and there is a steady green light. Failure to do so may result in damage to the generator.

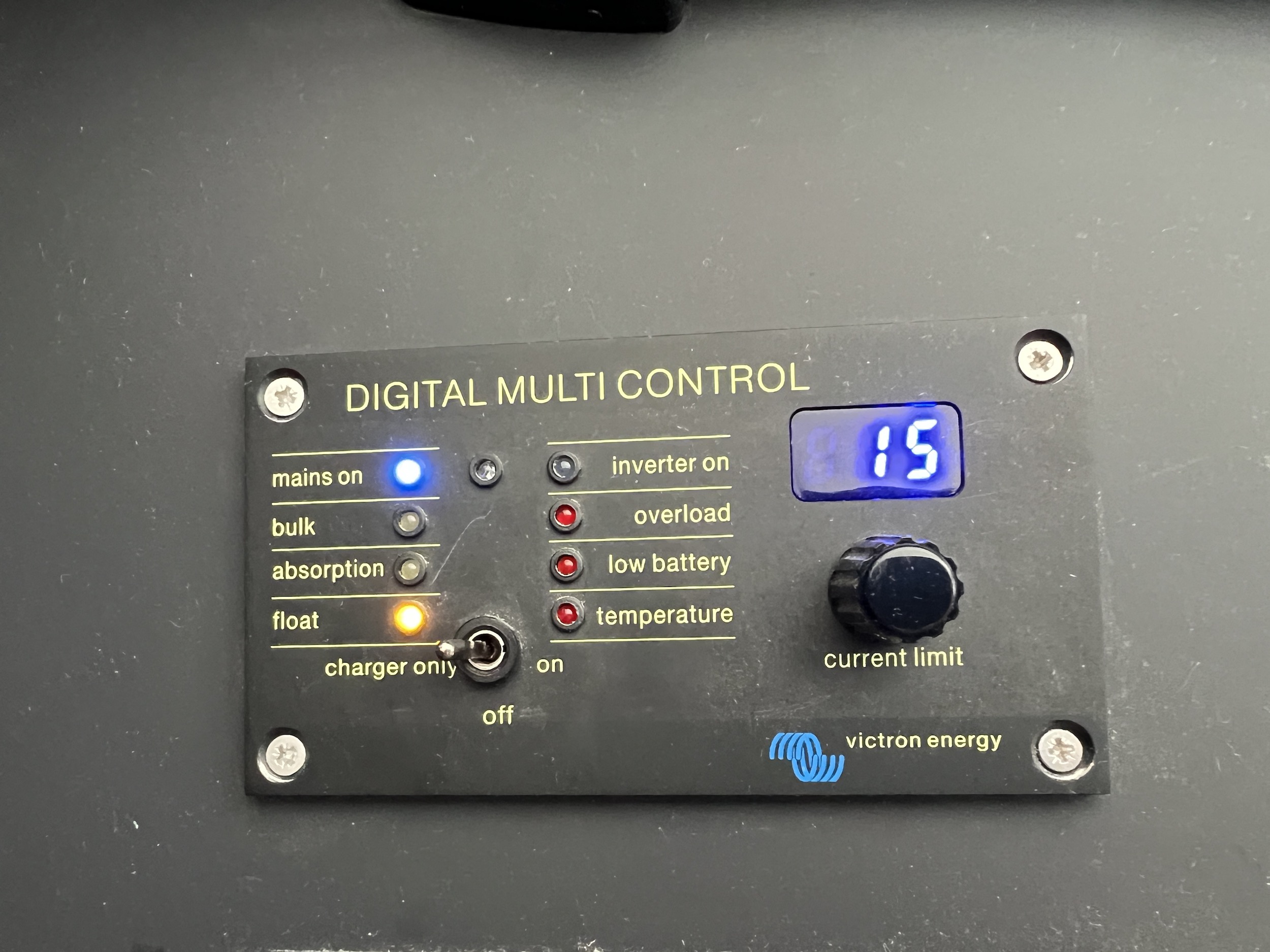

13.Inverter Control
Location: Deck Layout
Description: Located on the chart table.
This is the inverter control. The switch is a 3-way switch, the right position is the on position, the middle position is the off position and the left position is the charger only position.
WARNING: If the switch is placed in the on position both the battery charger and the inverter are operational. The battery levels should be checked at regular intervals since leaving the control in the on position is draining the batteries. When the switch is on the left position the inverter is off and only the battery charger is operational. Under no circumstances should the switch be in the off position.

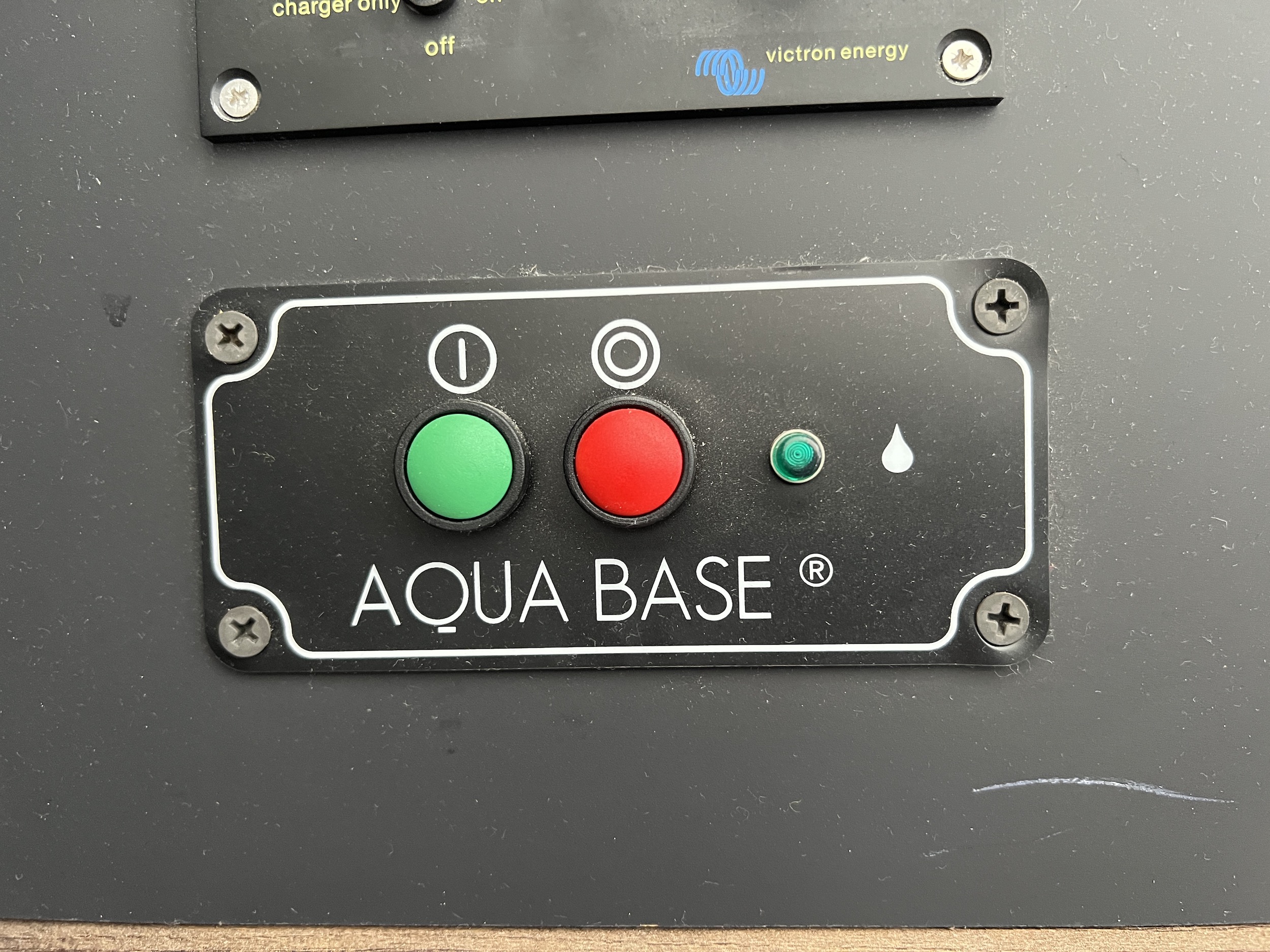

14.Water Maker Control Panel
Location: Deck Layout
Description: Located on the chart table. The water maker requires AC current to operate. In order to start it press the green button, to switch it off press the red button.
WARNING: never operate the water maker in ports. Doing so may damage the water maker filters and may fill the water tanks with unsafe water.

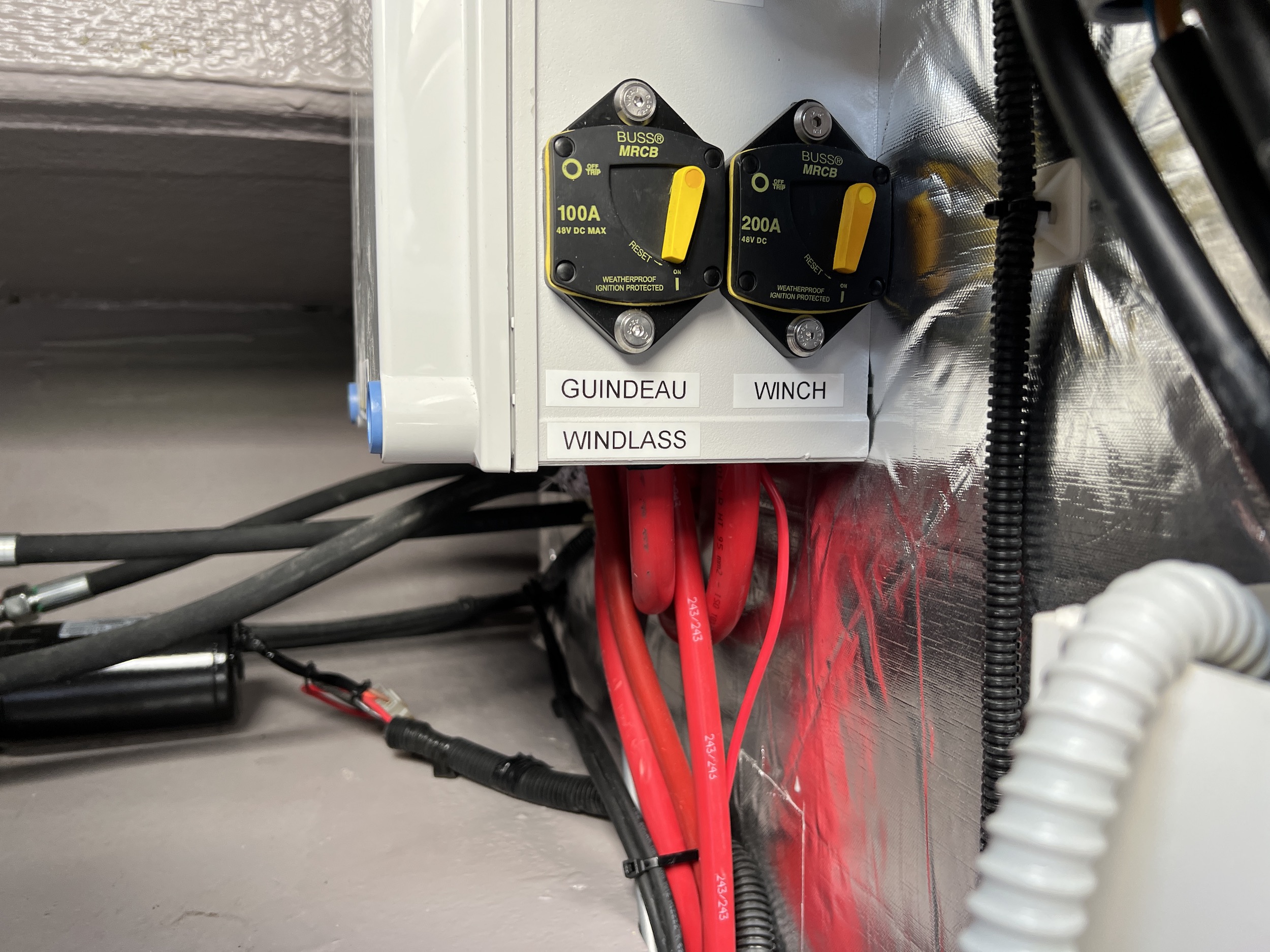

16.Windlass thermal fuse
Location: Deck Layout
Description: Located in the starboard engine room. The left thermal fuse switch is the Anchor winch (Guindeau/Windlass), the right thermal fuse switch is the electric flybridge winch.
If the anchor windlass stops responding to the controller commands check this fuse. If the fuse is off, put it back in the on position and wait 5 minutes for the anchor windlass motor to cool down.
WARNING: Operating the anchor windlass immediately after putting the fuse back in the on position may destroy the anchor windlass motor.

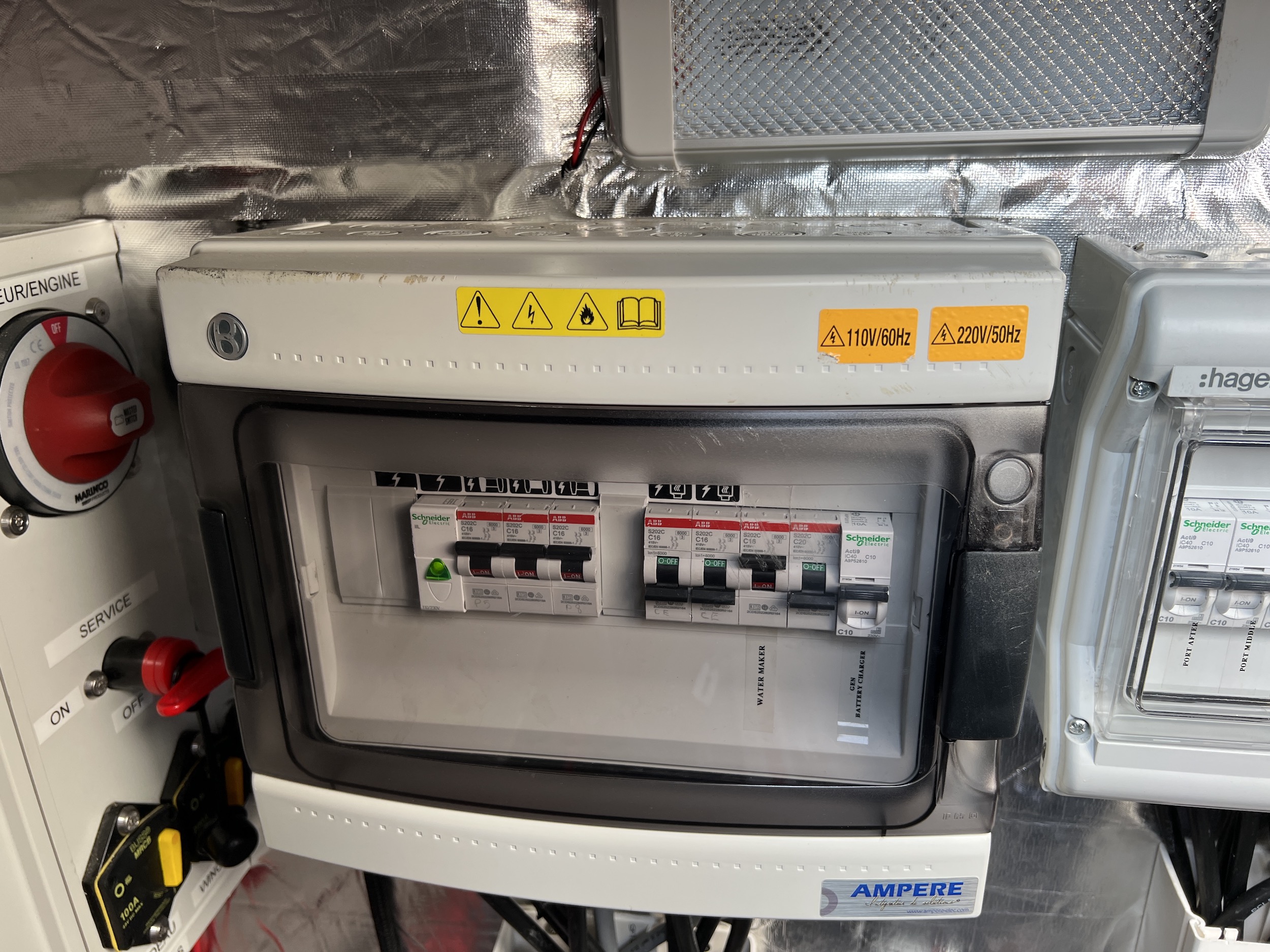

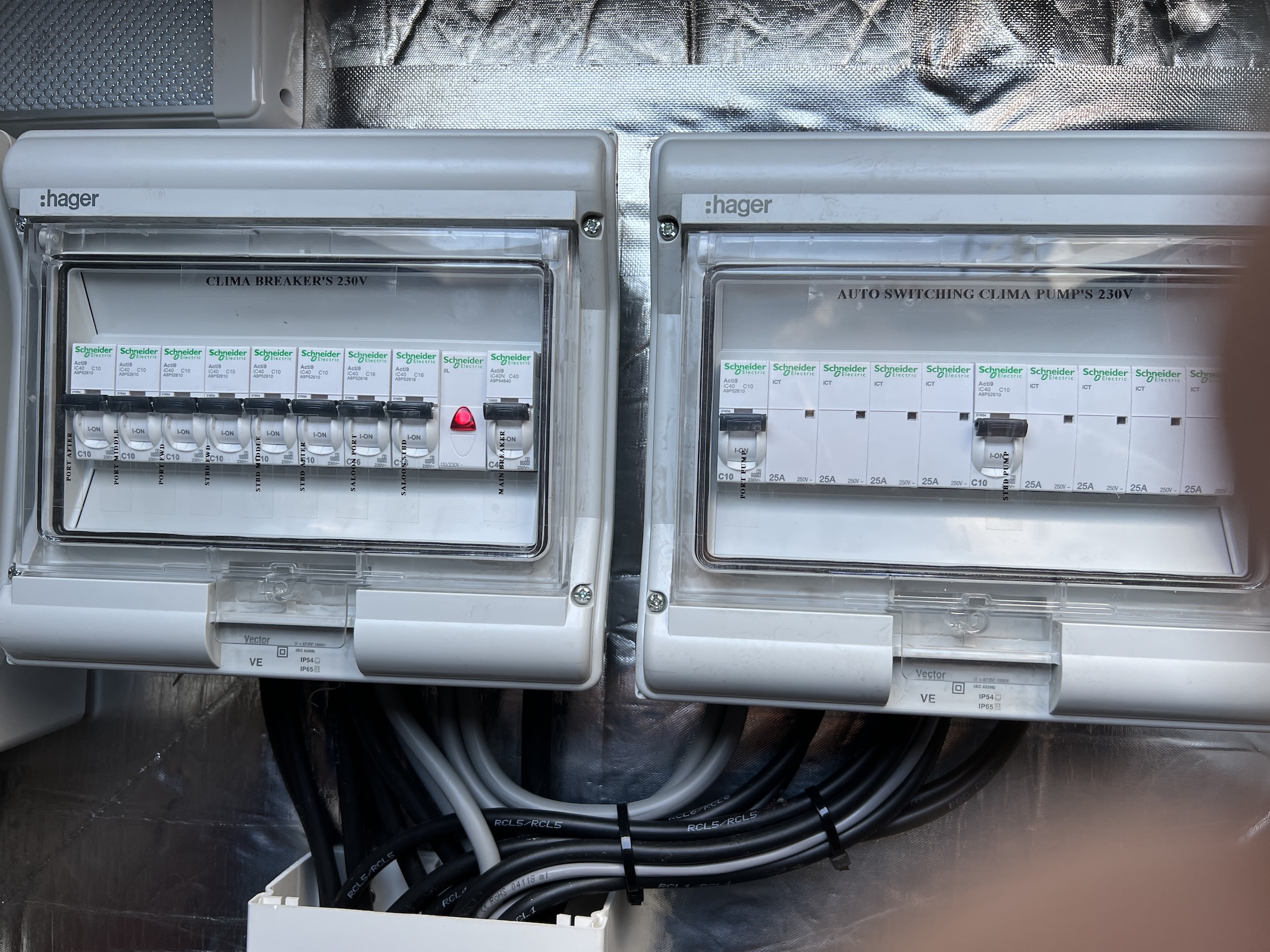

17.A/C & 220V AC interior fuses
Location: Deck Layout
Description: Located in the starboard engine room.
The right fuse box controls the A/C units. If the boat has 220V and an A/C unit is not getting powered then check this box for the corresponding fuse.
The right fuse box controls the 220V current on specialized circuits and the cabin power sockets.

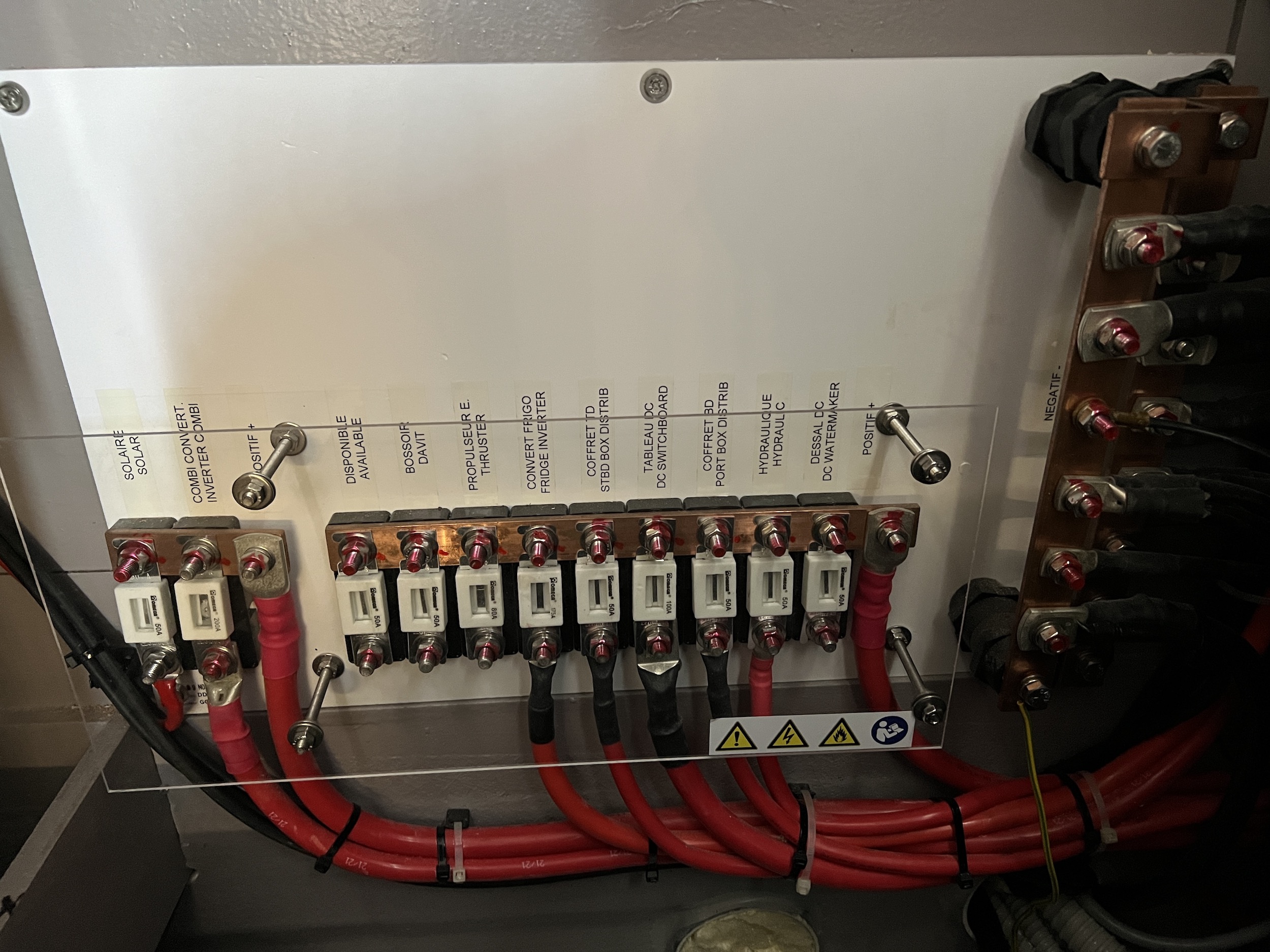

18.220V thermal fuses
Location: Cabin Layout
Description: Located under the stairs of the starboard aft cabin.
WARNING: This system should only be tampered with by a professional or by the skipper under the instructions of the base.
DO NOT TOUCH! Risk of electrical shock and/or death.

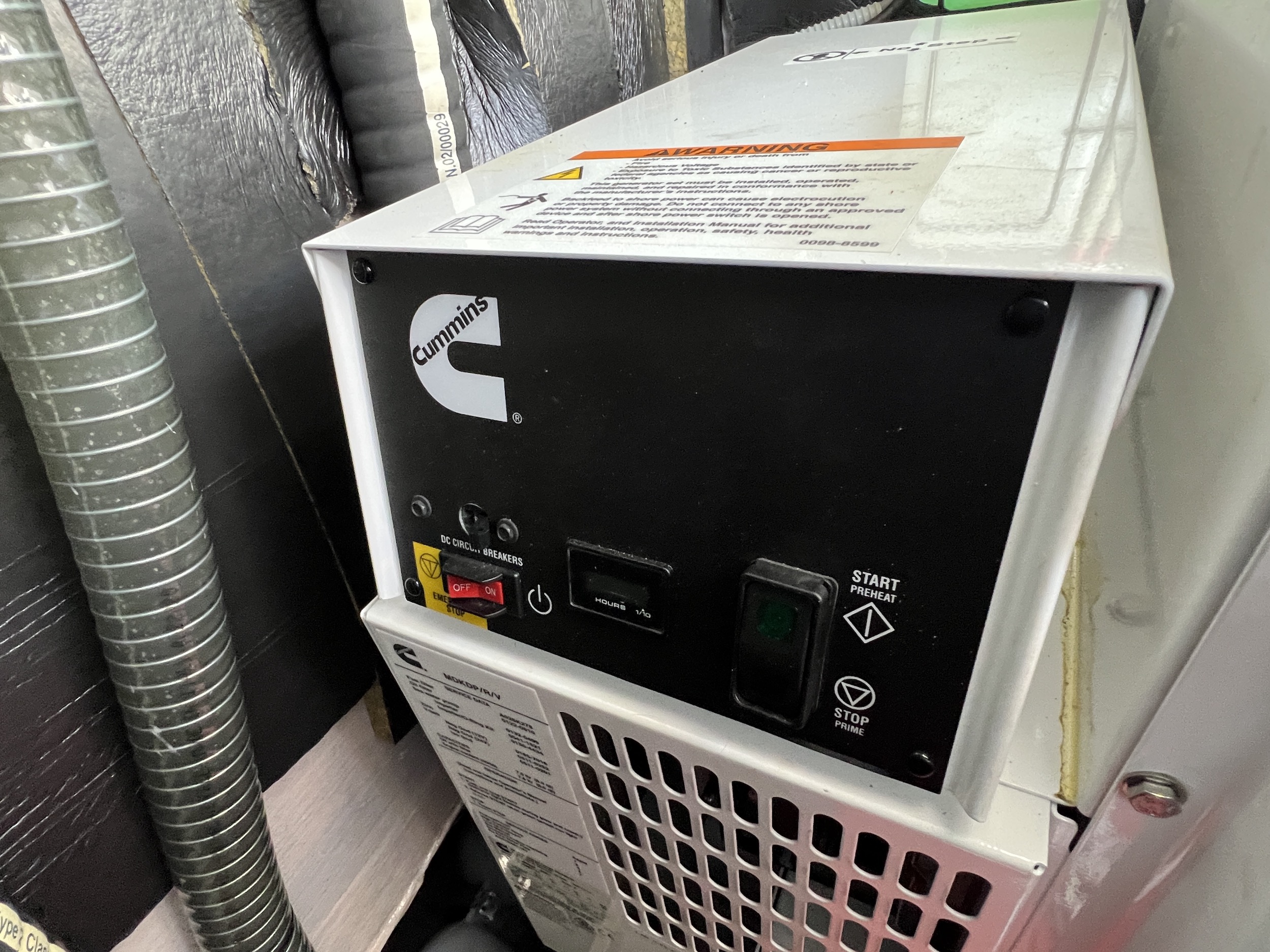

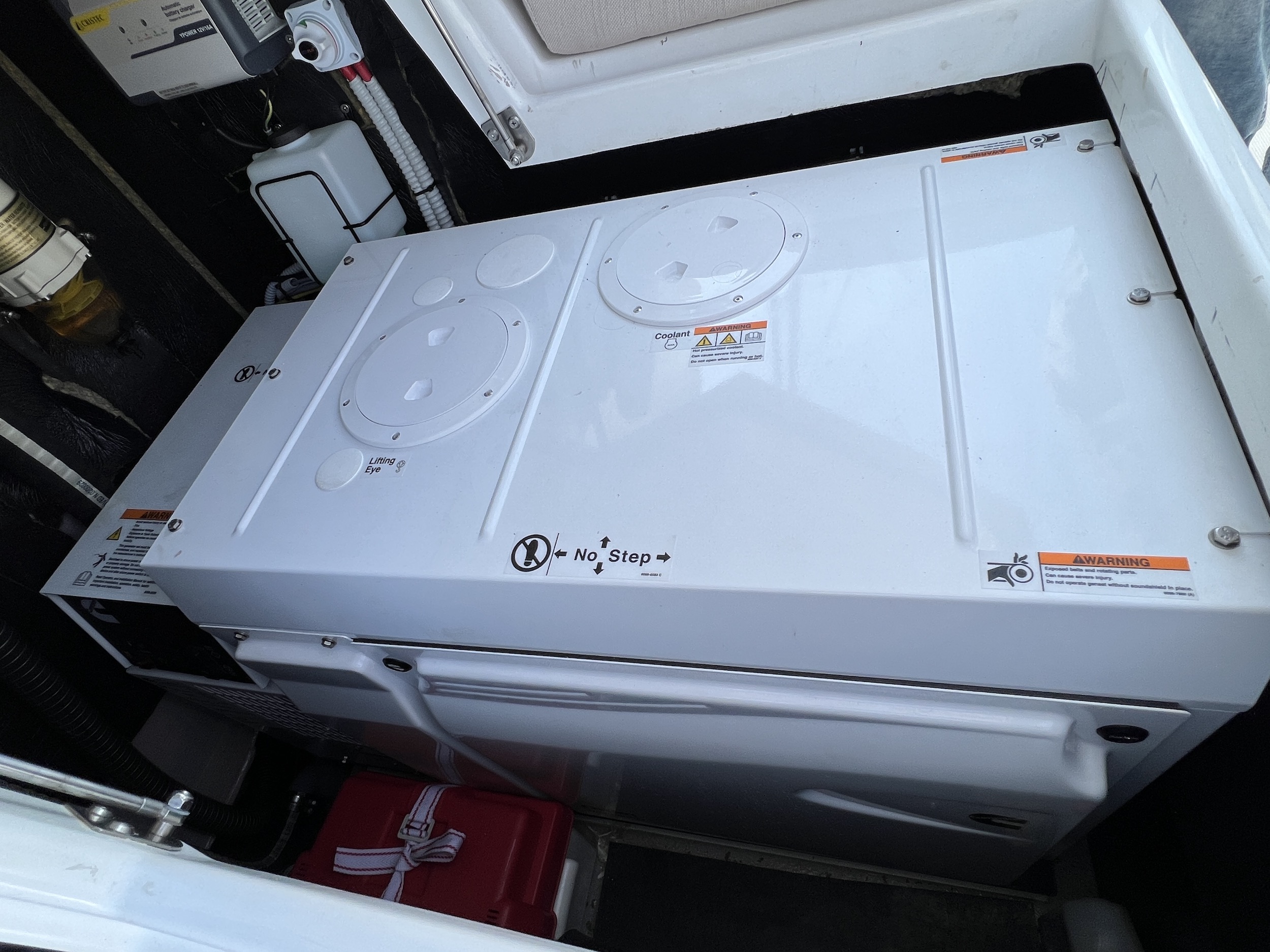

19.Generator
Location: Deck Layout
Description: Located in the central fore locker next to the table.
WARNING: This system should only be tampered with by a professional or by the skipper under the instructions of the base.
20.Electric Winch
Location: Bridge Layout
Description: Located on the starboard side of the flybridge.
Operated by the button under it.
WARNING: When operating the electric winch, always make sure that there are no fixed lines that may be pulled while pulling a line with the winch. Any fixed lines that may get pulled through the operation of the winch may snap and may result in serious damage to people and/or the mast or sails.

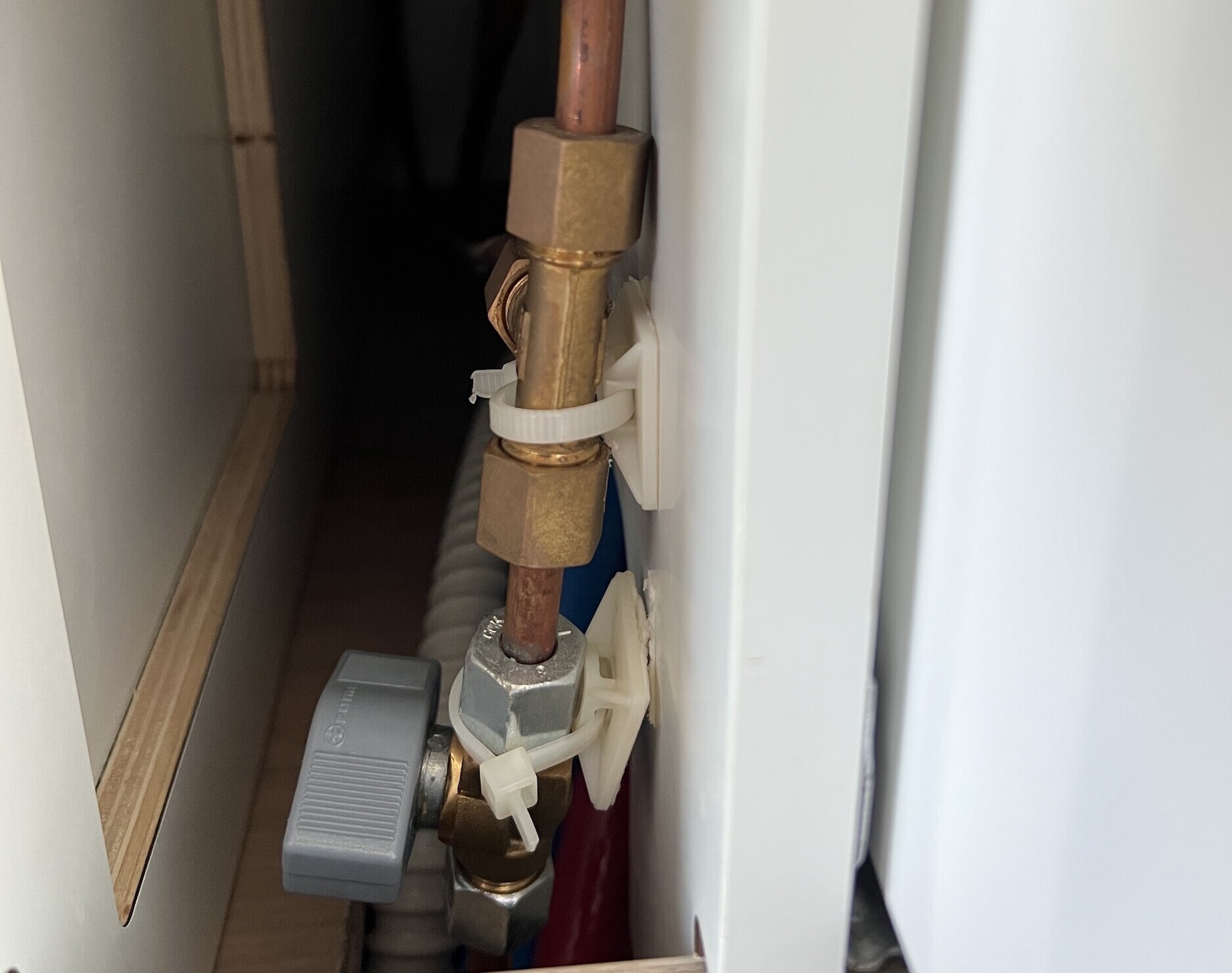

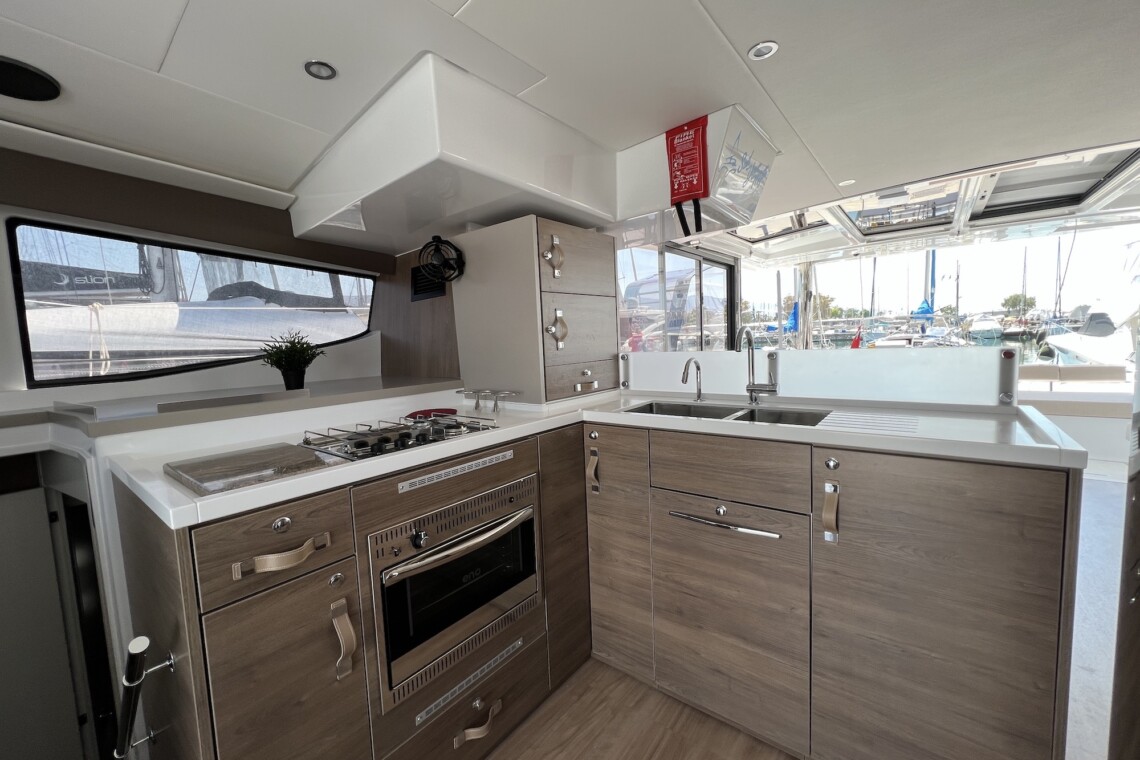

21.Gas system kitchen
Location: Deck Layout
Description: Located in the left side cupboard under the stove.
All valve handles are on the open position when parallel to the pipe and closed when vertical.
WARNING: Always close the gas valves when not in use or when replacing the gas bottles. Never leave unattended when operating the stove and oven.

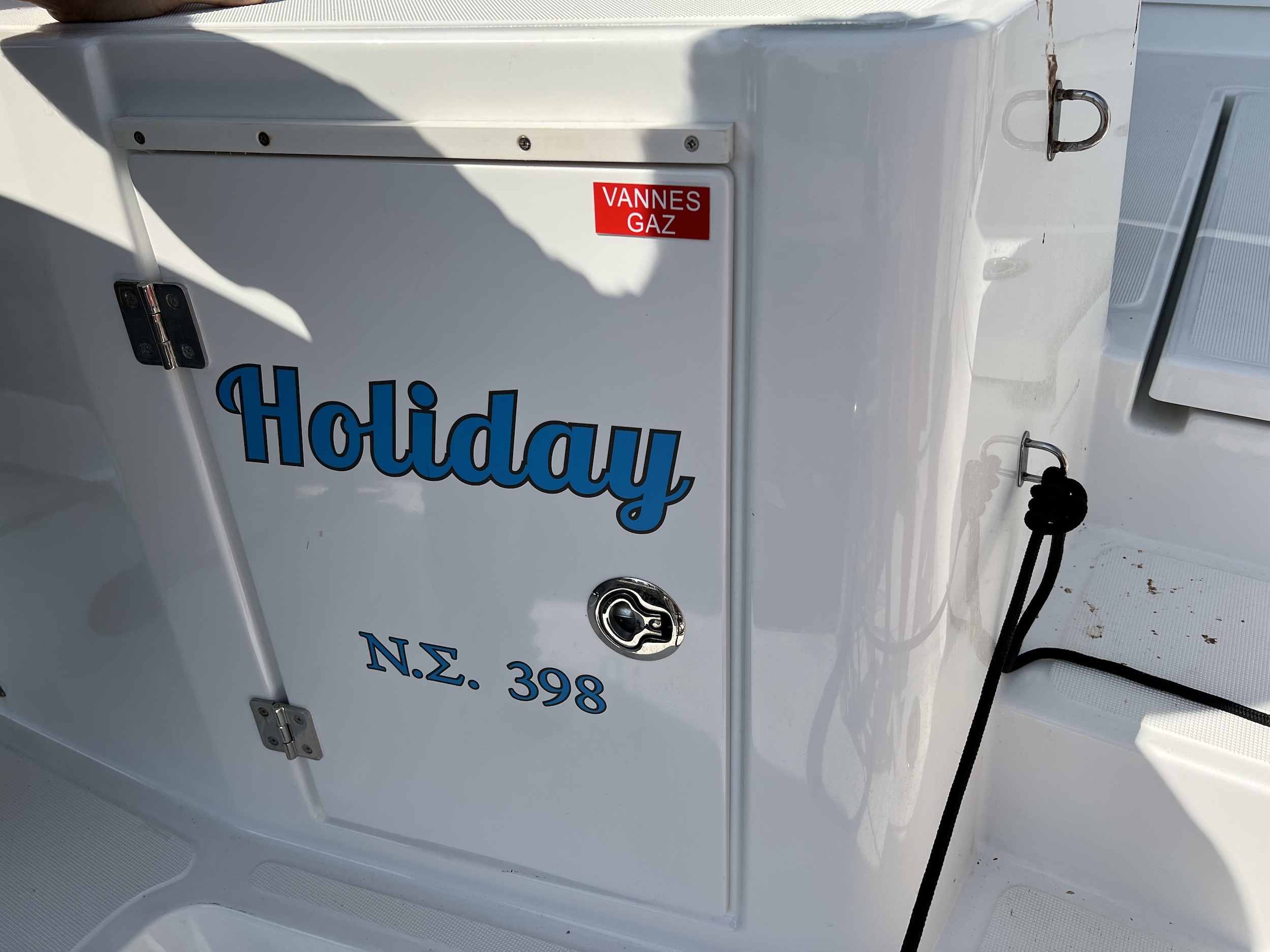

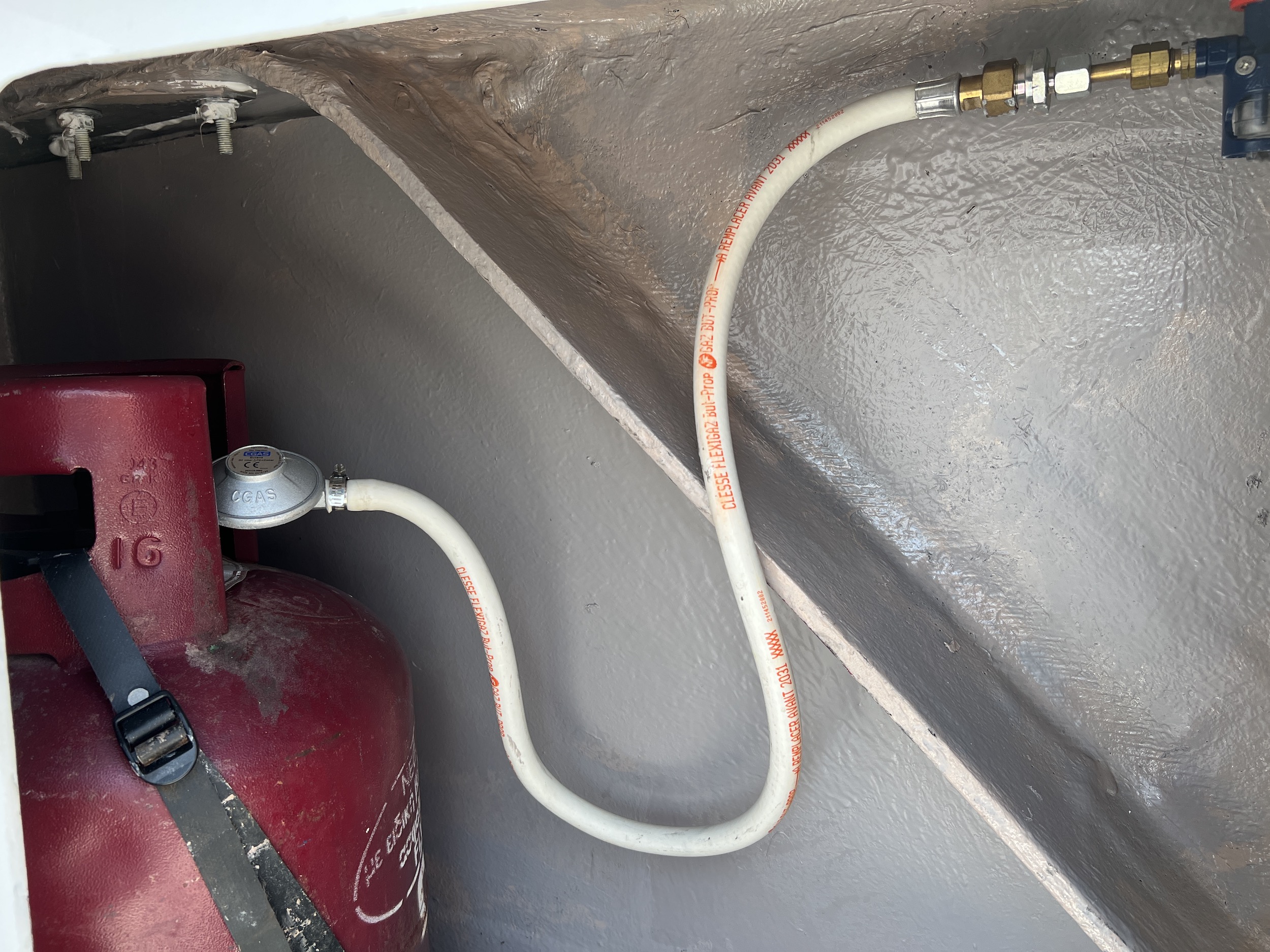

22.Gas system deck
Location: Deck Layout
Description: Located in the aft starboard locker next to the gangway.
WARNING: Always check for gas leaks when replacing the bottle. Don’t smoke or use an open flame close to the bottles.
Risk of explosion, serious injury and/or death.

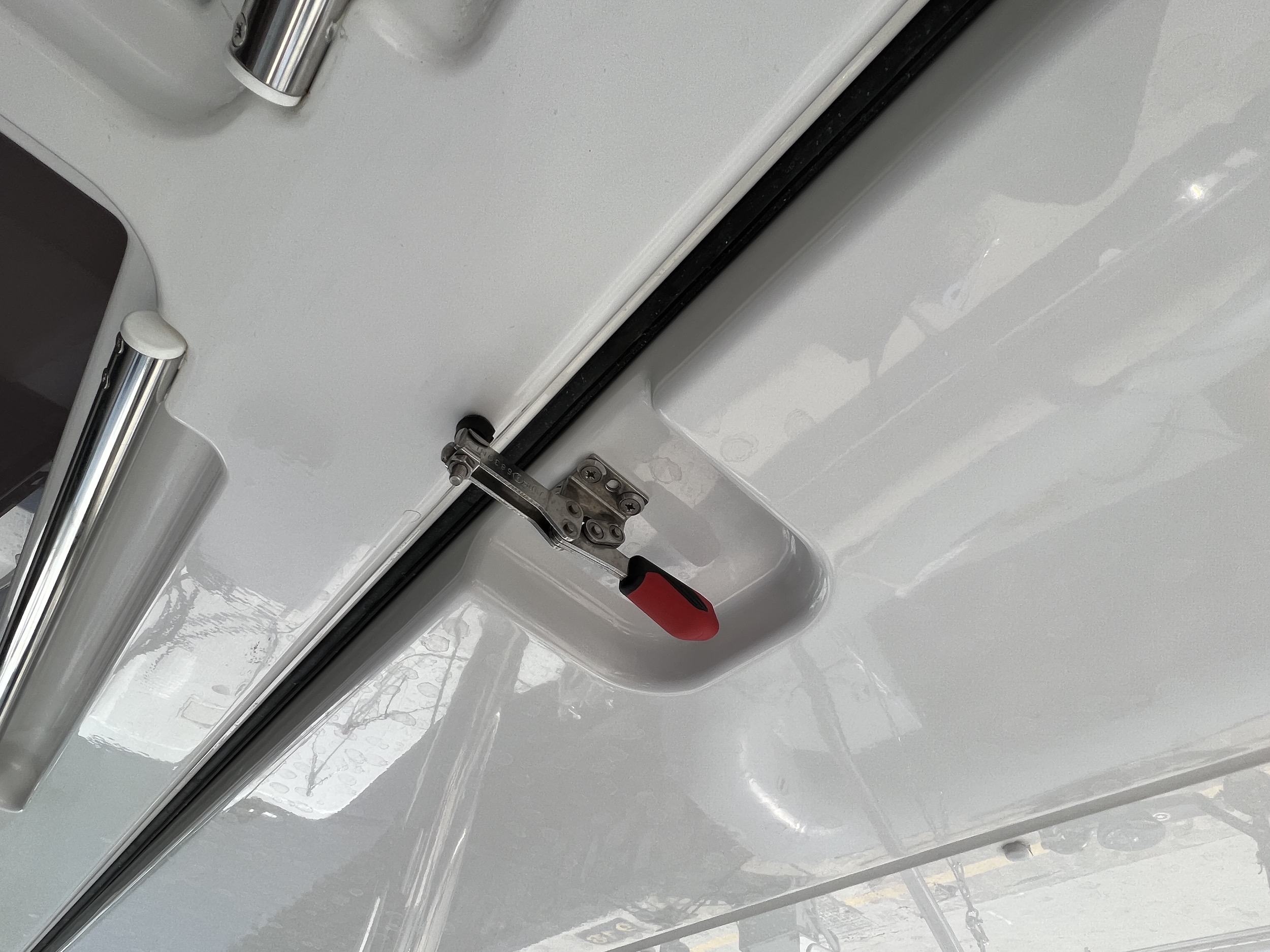

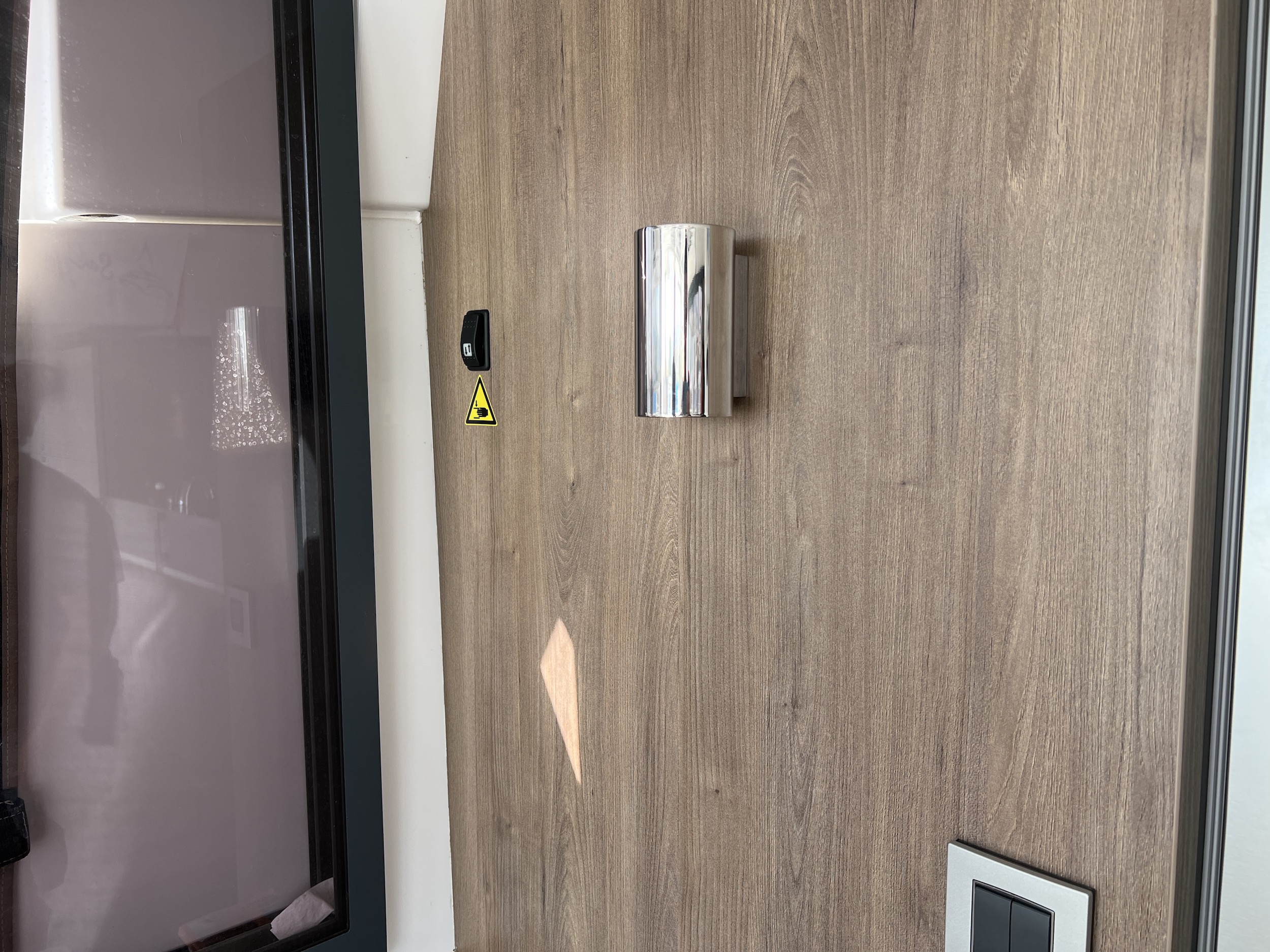

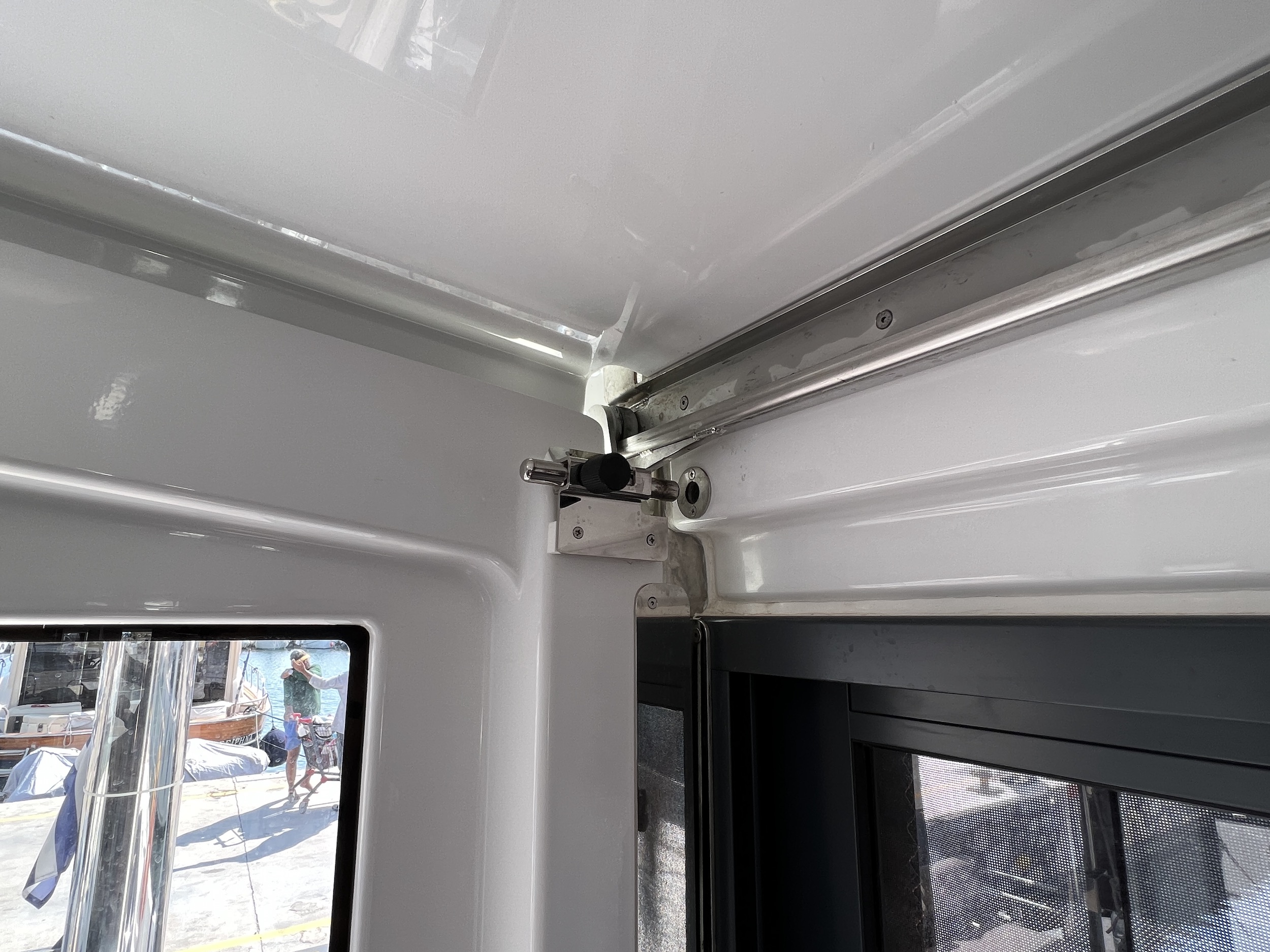

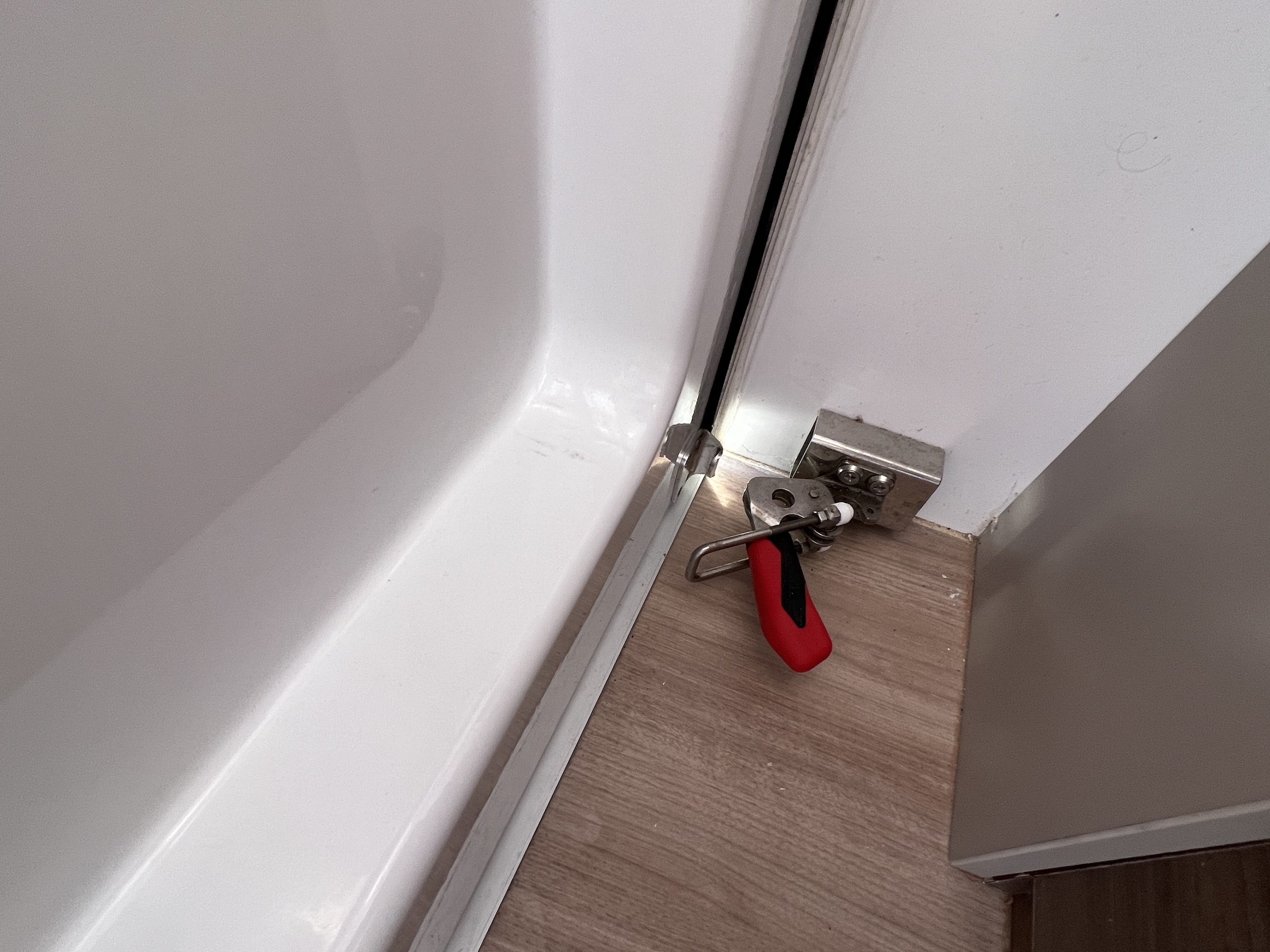

22.Aft Door System
Location: Deck Layout
Description: The switch controlling the aft door is located to the port side of the saloon on the side of the fridge. Make sure that the top bolts and bottom securities are released before using the switch to open the door. When the door is opened always secure it with the top central securty handle.

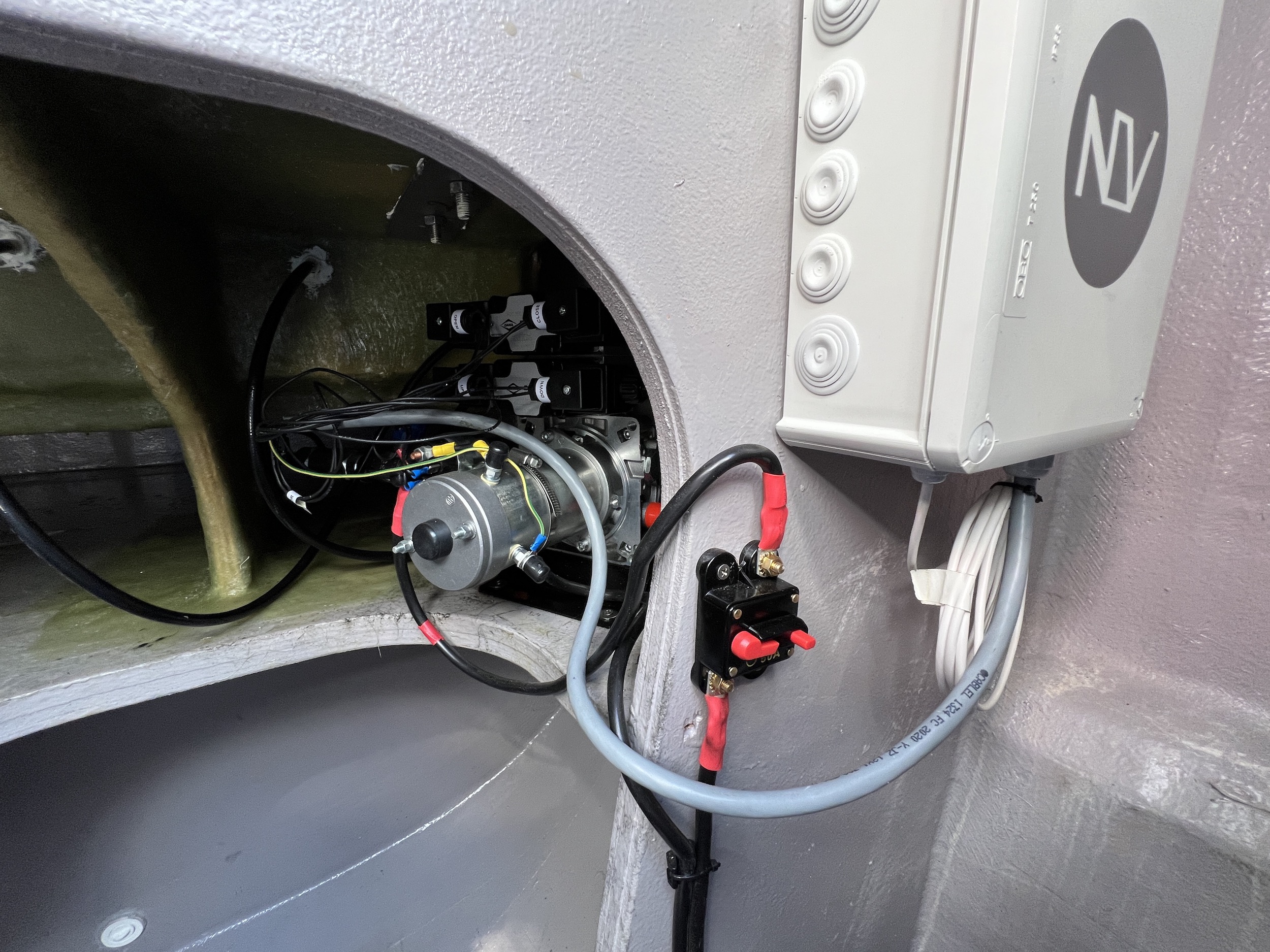

WARNING: If the door does not respond to the switch commands check the thermal fuse inside the port engine room.
